Dry Gerenal Pressure Gauge

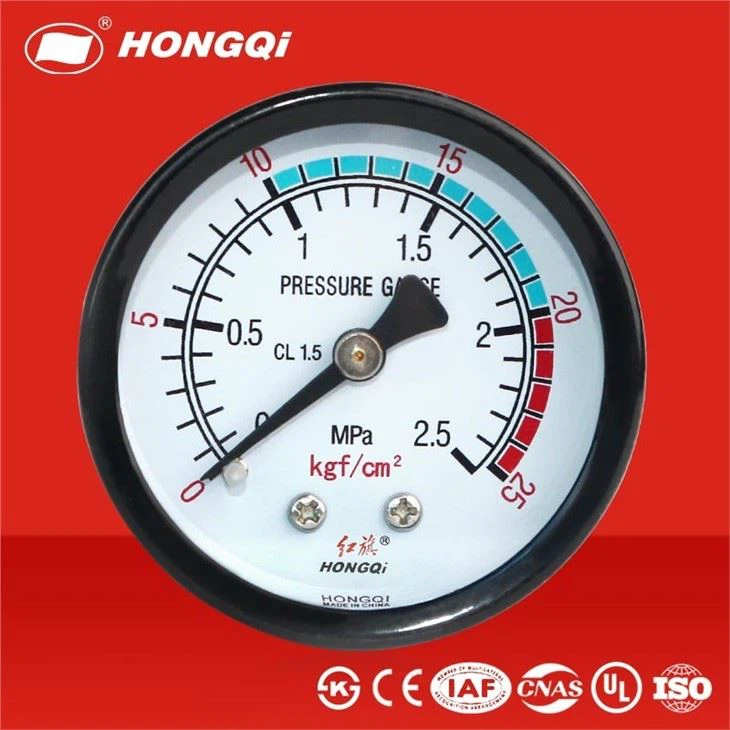

Dry Gerenal Pressure Gauge With Color Dial Manometer
A dry general pressure gauge is an essential tool used in various industries to measure and monitor the pressure of gases and liquids. It is a versatile instrument that can be used for a wide range of applications, from automotive to aerospace and everything in between.
One of the main benefits of a dry general pressure gauge is its easy-to-read display. The gauge displays pressure readings in an intuitive and straightforward manner, making it easy for operators to quickly determine the pressure of a particular system. This is especially important in critical applications where immediate action may need to be taken in response to pressure changes.
Another benefit of a dry general pressure gauge is its durability. These gauges are built to withstand tough environments and harsh conditions, making them a reliable tool for use in demanding applications. They are also designed to require minimal maintenance, ensuring that they are always ready to provide accurate readings whenever needed.
SPECIFICATIONS
| Accuracy | 2.5%, 1.6%, 1.0% |
| Ambient temperature | -40°C to +65°C |
| Process temperature | Max 100°C (Dry) |
| Operating pressure | 75% of the scale value |
| Over pressure limit | 25% of full scale value |
| Case | Painted steel |
| Ring | Painted steel |
| Bourdon Tube | Phosphor Bronze |
| Socket | Brass |
| Movement | Phosphor Bronze |
| Dial | Aluminum, black & red graduation on white background |
| Pointer | Aluminum, black |
| Window | sheet glass, PC |
| Standard Scale | MPa, Kg/cm2, psi/kPa, bar...customized |
| Connection | 1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized) |
Hongqi Instrument Co., Ltd is a professional manufacturer of all kinds of high quality gauges instruments.Our main product lines include dry gauge, liquid filled pressure gauge, special pressure gauge, capsule gauge, stainless steel liquid filled pressure gauge, thermometer, accessories..Our vision and strategy is to become the leading industrial instrumentation manufacturer for pressure gauge and temperature measurement. We will be distinct itself from competitors by offering a diversified and high quality product line, superior customer service, and a global distribution network.
