Color Dial Gauge MPa Pressure Gauge General Manufacturer
Color Dial Gauge MPa Pressure Gauge General Manufacturer

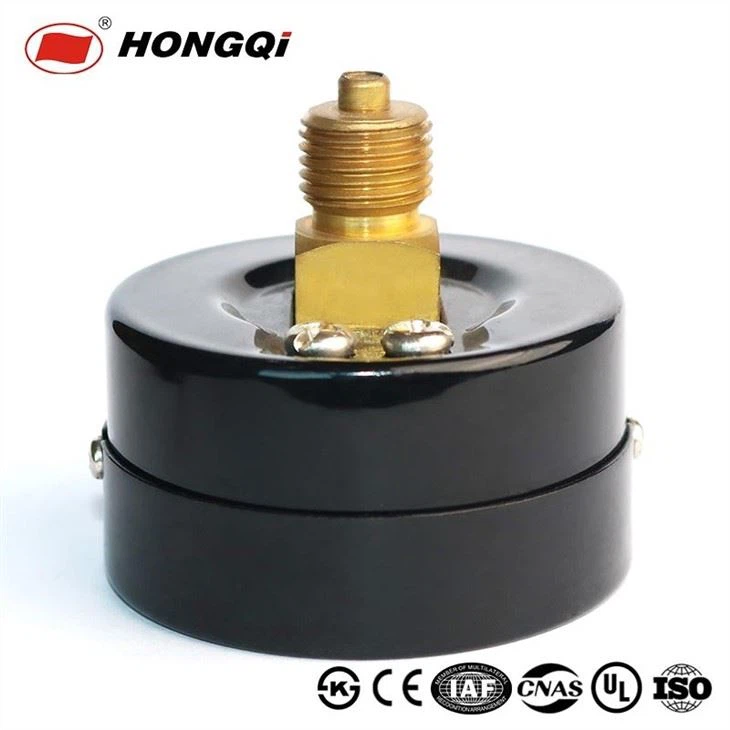

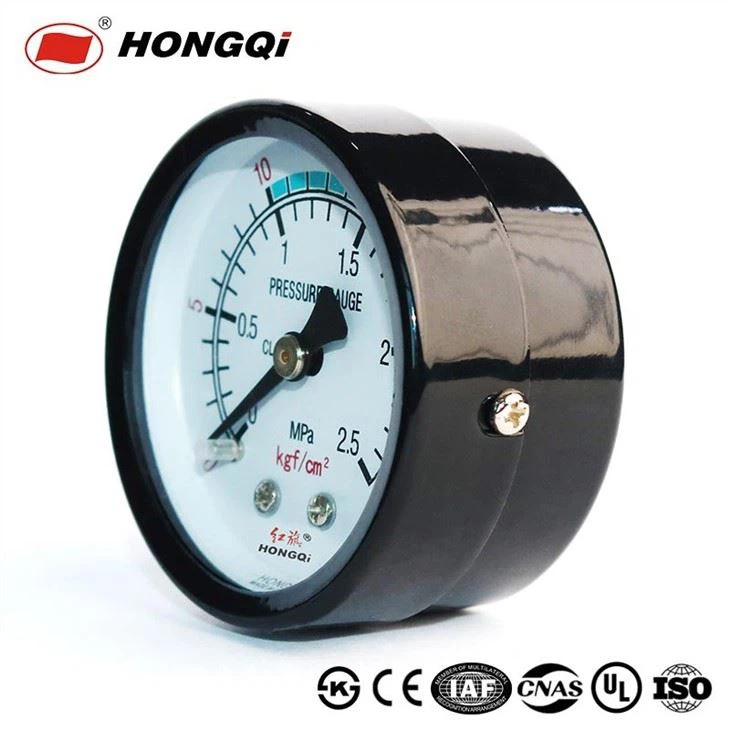

HongQi instrument Y-Zseries Pressure Gauges: Bottom or Center Back Mount Application: Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines and refrigerating plants, food and beverage, pharmaceutical industries. For measuring water, oil, gas or any medium not corrosive to brass or phosphor bronze.
SPECIFICATIONS
| Accuracy | 2.5%, 1.6%, 1.0% |
| Ambient temperature | -40°C to +65°C |
| Process temperature | Max 100°C (Dry) |
| Operating pressure | 75% of the scale value |
| Over pressure limit | 25% of full scale value |
| Case | Painted steel |
| Ring | Painted steel |
| Bourdon Tube | Phosphor Bronze |
| Socket | Brass |
| Movement | Phosphor Bronze |
| Dial | Aluminum, black & red graduation on white background |
| Pointer | Aluminum, black |
| Window | sheet glass, PC |
| Standard Scale | MPa, Kg/cm2, psi/kPa, bar...customized |
| Connection | 1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized) |
Hongqi Instrument Co., Ltd is a professional manufacturer of all kinds of high quality gauges instruments.Our main product lines include dry gauge, liquid filled pressure gauge, special pressure gauge, capsule gauge, stainless steel liquid filled pressure gauge, thermometer, accessories..Our vision and strategy is to become the leading industrial instrumentation manufacturer for pressure gauge and temperature measurement. We will be distinct itself from competitors by offering a diversified and high quality product line, superior customer service, and a global distribution network.
Welcome to call us to learn more.
