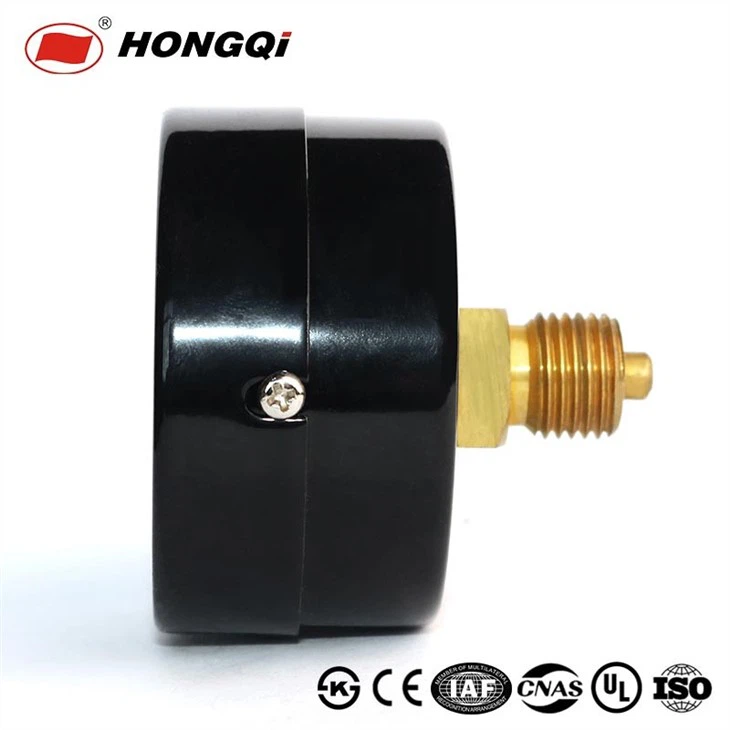

50mm axial installation Pneumatic Component Pressure Gauge
HongQi instrument Y-Zseries Pressure Gauges: Bottom or Center Back Mount Application: Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines and refrigerating plants, food and beverage, pharmaceutical industries. For measuring water, oil, gas or any medium not corrosive to brass or phosphor bronze. SPECIFICATIONS

Accuracy	2.5%, 1.6%, 1.0%
Ambient temperature	-40°C to +65°C
Process temperature	Max 100°C (Dry)
Operating pressure	75% of the scale value
Over pressure limit	25% of full scale value

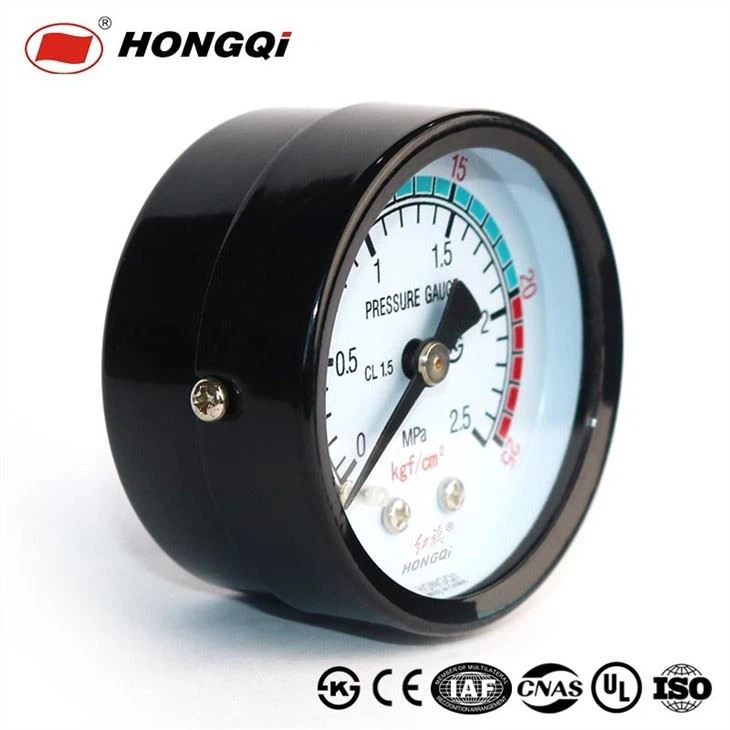

Case	Painted steel
Ring	Painted steel
Bourdon Tube	Phosphor Bronze
Socket	Brass
Movement	Phosphor Bronze

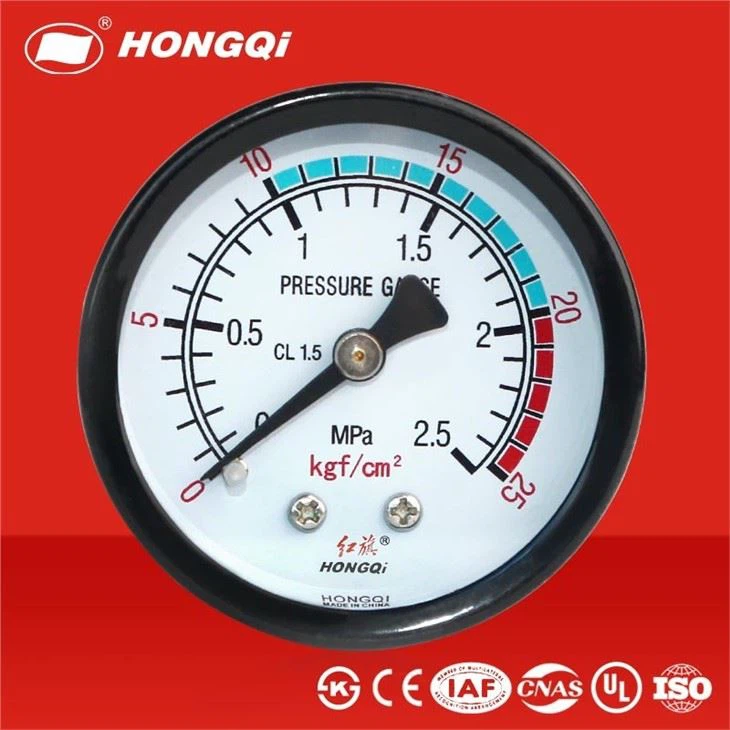

Dial	Aluminum, black & red graduation on white background
Pointer	Aluminum, black
Window	sheet glass, PC
Standard Scale	MPa, Kg/cm2, psi/kPa, bar...customized
Connection	1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized)

Hongqi Instrument Co., Ltd is a professional manufacturer of all kinds of high quality gauges instruments.Our main product lines include dry gauge, liquid filled pressure gauge, special pressure gauge, capsule gauge, stainless steel liquid filled pressure gauge, thermometer, accessories..Our vision and strategy is to become the leading industrial instrumentation manufacturer for pressure gauge and temperature measurement. We will be distinct itself from competitors by offering a diversified and high quality product line, superior customer service, and a global distribution network.
