Dia100mm Back Connection Pressure Gauge
video

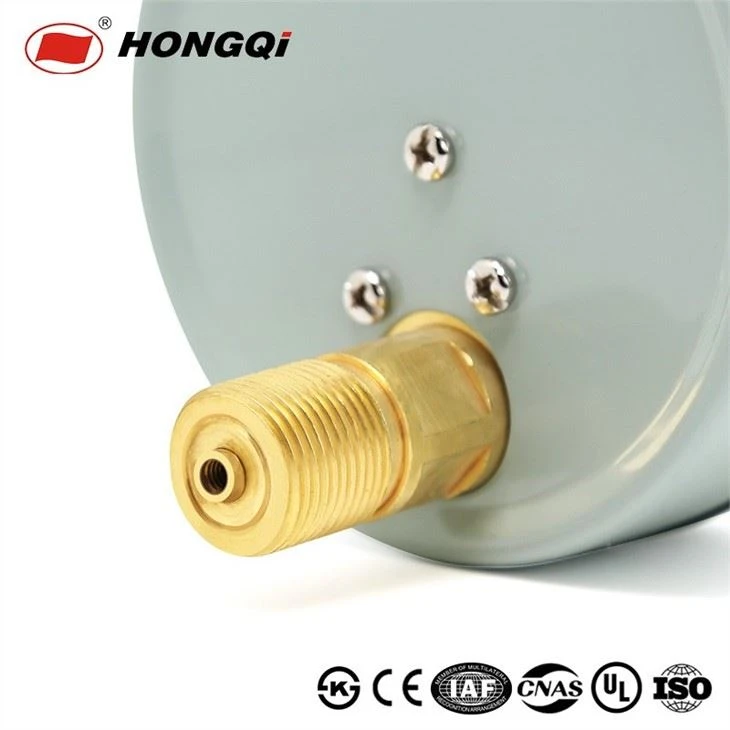

Dia100mm Back Connection Pressure Gauge

Dia100mm Back Connection Pressure Gauge

Accuracy:2.5%, 1.6%, 1.0%
Ambient temperature：-40°C to +65°C
Process temperature：Max 100°C (Dry)
Operating pressure：75% of the scale value
Over pressure limit：25% of full scale value
Case：black painted steel
Ring：black painted steel
Bourdon Tube：Phosphor Bronze
Send Inquiry
Chat Now
Product Introduction



Dia100mm Back Connection Pressure Gauge

HongQi instrument Y-series Pressure Gauges: Bottom or Center Back Mount
Application: Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines and refrigerating plants, food and beverage, pharmaceutical industries. For measuring water, oil, gas or any medium not corrosive to brass or phosphor bronze.


Basic Info.

Model NO.
Y-60Z
Application
Industrial, Civil, Food, Pharmacy
Structure
Spring Pressure Gauge
Connection Type
Axial
Function
Local Indication Type
Installation Structure
Direct Mounting
Features of Measurement Medium
General Pressure Gauge
Indicating Pressure Reference
General Pressure Gauge
Bourdon Tube
Phosphor Bronze
Socket
Brass
Movement
Phosphor Bronze
Pointer
Aluminum, Black
Trademark
HONGQI/OEM
Transport Package
Plastic Bag, Inner Box, Carton Box, Pallet
Specification
60mm
Origin
China
