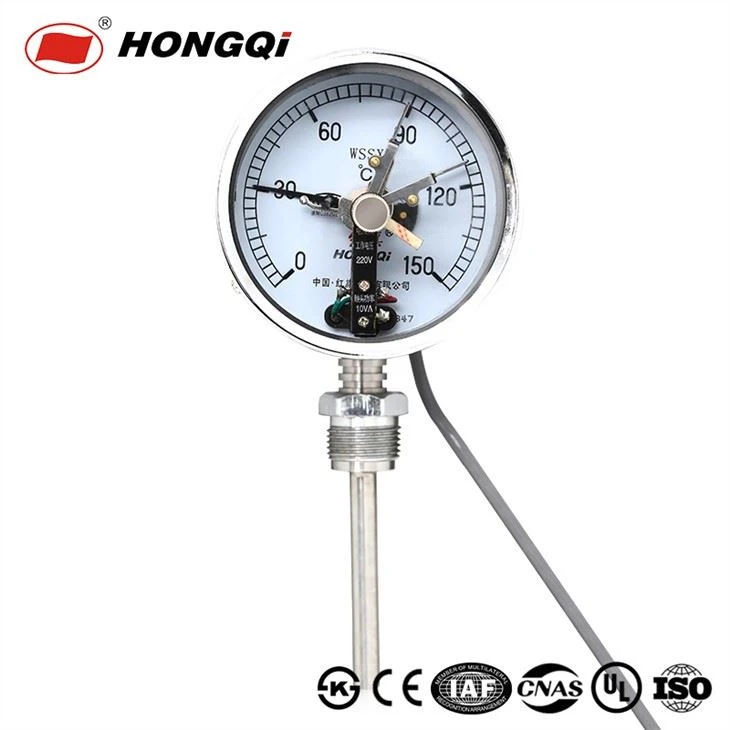

Electrical Contacts Bi-Metal Thermometer

Application
WSS WSSX series bi-metal thermometer is the instrument which suit for low or middle temperature measurement. It can be used for temperature measurement for gas and liquid. The electric contact bi-metal thermometer can measure the temperature Pand when temp exceed the certain value, it can send the controlling signal and alarm.
Specifications

Temperature Range ºC	Model	Mounting Type	Diameter	Stem Diameter	Stem Length	Mounting Thread
-80~40 -40~80 0~50 0~100 0~150 0~200 0~300 0~400 0~500 0~600	WSS-301	Back type	Φ60	Φ6	Stem length between 75mm~3000mm , as customers needs. when length with 1000mm, stem diameter is Φ12, Temperature with 0-50ºC, stem length should ≥150mm	1.M272 adjustable male thread 2.M272 adjustable female thread 3.M16*1.5 adjustable male thread 4.Inch thread or pipe thread can custom-made.
	WSS-401		Φ100	Φ10
	WSS-501		Φ150
	WSS-311	Bottom type	Φ60
	WSS-411		Φ100
	WSS-511		Φ150
	WSSX-301	Electric contact back type	Φ60	Φ6
	WS-71		Φ60	Φ6
	WSSX-401		Φ100	Φ10
	WSSX-501		Φ150
	WSSX-411	Electric contact bottom type	Φ100
	WSSX-511	Electric contact bottom type	Φ150
