Stainless Steel Pressure Thermometer

Product name:Stainless steel pressure thermometer
Accuracy class: 1.5%
Scale Range:-20-60.0~100.20~120,60~160
Stick length (mm):150~280 ( Tail lenaths12M), 200-330 (Taillenath>12M)
Capillary material:copper capillary/PVC capillary/st.st.capillary
Installation:M27 x 2 Movable male thread Material: copper,iron st.st

Send Inquiry

Chat Now

Stainless Steel Pressure Thermometer

Pressure thermometer is suited for measuring all mediea which has no corrosion for copper in industry area, if the mediea has corrosion.vou should select anti-corrosion type, this gauge is widely used in machinery, textile, chemical medicine, foodstuffs to temerature measuring and controlling.Anti-corrosive type adopt the stainless steel material which is suited for the liquids or gases which has medium corrosion.

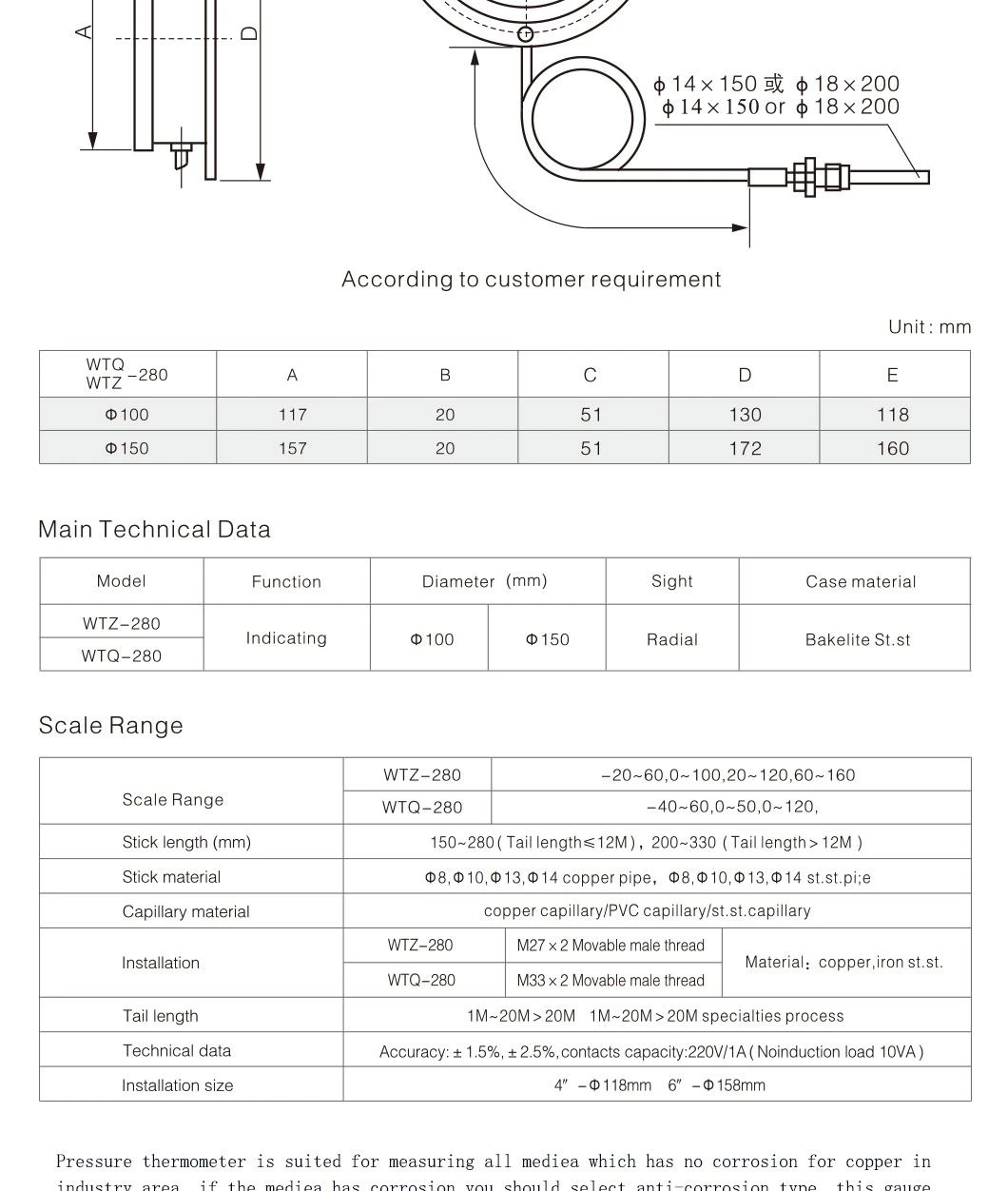

Main Technical Data

Model	Function	Diameter (mm)		Sight	Case material
WTZ-280	Indicating	Φ100	Φ150	Radial	Bakelite St.st
WTQ-280

Scale Range

Scale Range	WTZ-280	-20-60.0~100.20~120,60~160
	WTQ-280	-40-60.0~50.0~120.
Stick length (mm)	150~280 ( Tail lenaths12M), 200-330 (Taillenath>12M)
Stick materia	Φ8,Φ10,Φ13,Φ14 copper pipe,Φ8,Φ10,Φ13,Φ14st.st.pi;e
Capillary material	copper capillary/PVC capillary/st.st.capillary
Installation	WTZ-280		M27 x 2 Movable male thread	Material: copper,iron st.st
	WTQ-280		M33 x 2 Movable male thread
Tail length	1M~20M>20M 1M~20M> 20M specialties process
Technical data	Accuracv：±1.5%, ±2.5%,contacts capacity:220V/1A( Noinduction load 10VA)
Installation size	4" -Φ118mm 6" -Φ158mm
