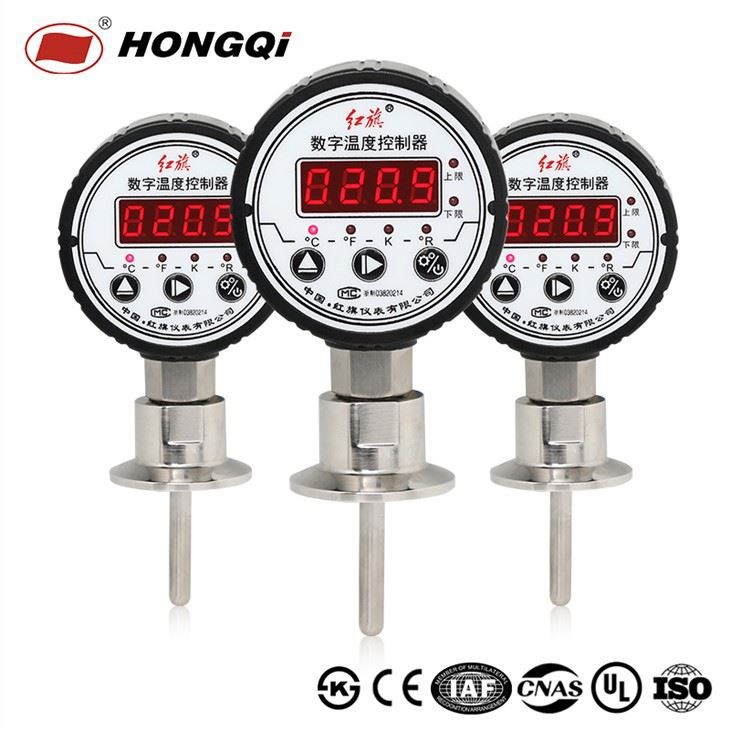

82mm multi-function digital temperature controller
video
82mm multi-function digital temperature controller

82mm multi-function digital temperature controller

Nominal size：82mm
Accuracy class：1.0
Display capacity：4 bit red digital tube display
Temperature unit：four temperature units switch
Relative humidity:<95%
Connection：M20*1.5 or other required thread
Temperature range：(-50~300)℃(or customized
according to user requirements)
Power supply：AC220V or DC24V
Send Inquiry
Chat Now
Product Introduction



DTC-80 Digital Temperature Controller

A digital temperature controller is an electronic device that regulates the temperature of a system or equipment such as a thermostat or HVAC unit. It uses a microprocessor to analyze and control the temperature according to pre-set parameters, ensuring that the desired temperature is maintained within the desired range. Digital temperature controllers can be programmed to automatically control temperature settings based on time, day, and specific temperature readings, making them ideal for use in a range of industries such as food processing, scientific research, and industrial manufacturing. They offer precise temperature control, making them an effective tool for maintaining a consistent temperature in applications where even small temperature variations can have significant impacts.

80mm Multi-function Digital Temperature Controller Thermostat Aquarium Home Brewing Incubation Fermentation Breeding Greenhouse Remote Monitoring Controlling

Product Description

Product namedigital temperature controller
Temperature range

(-50~300) ℃(or customized according to user requirements)

Accuracy grade1.0
Temperature unitfour temperature units switch
Ambient temperature(-10 ~ 50) ℃
Storage temperature(-20 ~ 70) ℃
Relative humidity< 95%
Atmospheric pressure(86 ~ 106) kPa
Display capacity4 bits red digital tube display
Power supply AC220V or DC24V
Threaded connection

M20 × 1.5 (or according to customer requirements)


FAQ


 Temperature adjustment instructions

1. Long press  4 3-1 key, and the screen will display "CALO" to enter the temperature adjustment mode:

2, The screen displays the current temperature, adjust to the required temperature, press 6 3-1 the key to save.Note 1: If you need to restore the value, enter 9999 or more than 2 times the maximum temperature range of the meter at this time. The meter displays "REST" reset: Note 2: the reset default setting option in the menu will also clear the temperature adjustment data.

3. After saving, the temperature controller will display the adjusted temperature.

 Test mode description

1. After entering the setting interface, enter the password "2000 ", and the screen will display "TEST" to enter the TEST mode

2, In test mode,  4 3-1  the key is the current number +1, 4 4-1 The key is to switch the editable number, and  6 3-1the key is the current number -1: The output signal of the indicator lamp and relay will respond in real-time according to the current value:

3. Long press 6 3-1 the key to exit the test mode.

Matters needing attention

1. When using, the maximum temperature should not exceed 150% of the maximum range.When the table no longer displays numbers, it displays "-OH-", indicating

Current temperature exceeds 200% of maximum range, reduce current temperature immediately to prevent damage to thermometer sensor.

2. If the table fails, please contact the company's after-sales staff. Do not remove or touch the bottom sensor to avoid damage to the sensor.
