Stainless steel pressure gauge 10 bar
video
Stainless steel pressure gauge 10 bar

Stainless steel pressure gauge 10 bar

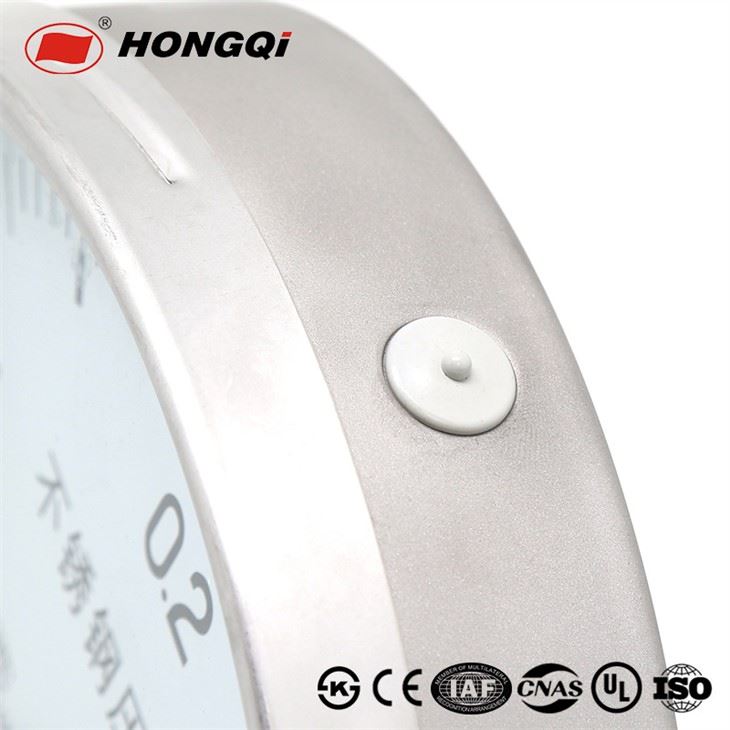

250mm (10inch)Lower Mount Stainless Steel Manometer/Large dial/pneumatic/hydraulic/high temperature resistance/anti-corrosion/full specifications Nominal size：150/200/250mm Accuracy class：+1.6% Bourbon tube：C-shaped or helical, phosphor bronze or stainless stee Installation：Lower mount, back mount, and lower mount with rear flange Connection Pointer：Brass or stainless steel. M20*1.5 or other reguired threads Pointer：Black, aluminum Case：Steel or stainless steel Movement：Brass or stainless steel Dial：Aluminum, with stop pin
Send Inquiry
Chat Now
Product Introduction



Stainless steel pressure gauge 10 bar Y-100BF/Y-150BF/Y-200BF/Y-250BF


Product Description

Nominal size250mm
Accuracy class±1.6%
Bourbon tubeC-shaped, stainless steel
InstallationLower mount, back mount, or back mount with flange
ConnectionStainless steel, M20*1.5 or other required threads
PointerAluminum, black
MovementStainless steel
DialStainless steel, black lettering, with stop pin
Scale ranges

0-60MPa or -0.1~2.4MPa

Working Pressure

Steady pressure：3/4 * full scale range

Fluctuating pressure：2/3 * full scale range


Working Condition

Working temperature：5~55℃ for glycerin-filled gauge, -25~55℃ for silicone oil-filled gauge, -40~70℃ for dry gauge

Permissible humidity：No more than 80% of relative humidity

Y-BF_01

Y-BF_02

Y-BF_03

Y-BF_04

Y-BF_05

Y-BF_06
