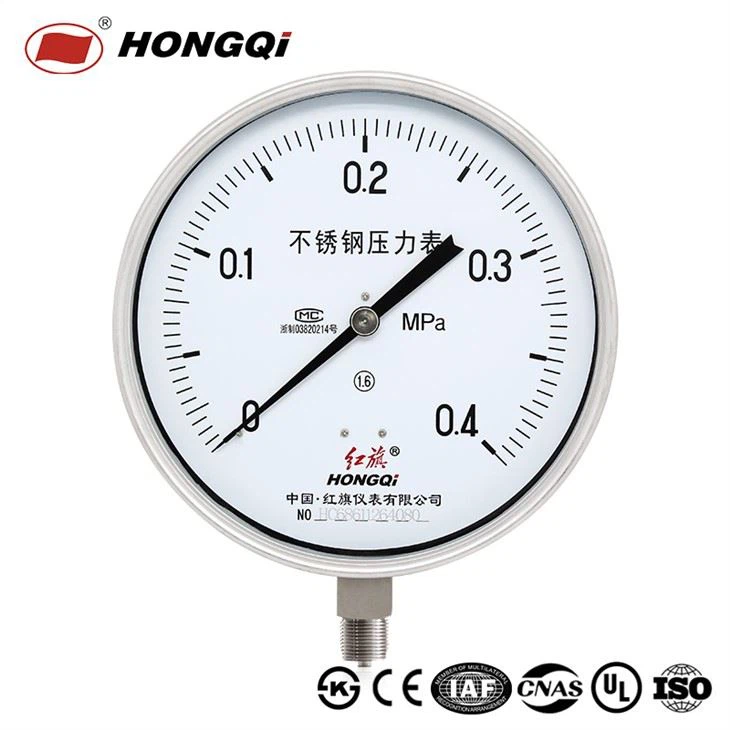

All stainless steel oil pressure meter

200mm(8inch) bottom connection Stainless Steel Pressure Gauge boiler pressure gauge installation engineering industry Nominal size：150mm/200mm Accuracy class：+1.6% Bourbon tube：C-shaped or helical, phosphor bronze or stainless stee Installation：Lower mount, back mount, and lower mount with rear flange Connection Pointer：Brass or stainless steel. M20*1.5 or other reguired threads Pointer：Black, aluminum Case：Steel or stainless steel Movement：Brass or stainless steel Dial：Aluminum, with stop pin Scale ranges：0-100MPa

Send Inquiry

Chat Now

All stainless steel oil pressure meter Y-100BF/Y-150BF/Y-200BF

200mm lower/back mount all stainless steel oil pressure meter M20*1.5,G1/2'',1/2'' NPT

Application Description

It is applied for those gaseous, vaporous or liquid media which don’t explode, crystallize and freeze, and corrode stainless steel.

Product Description

Nominal size	200mm
Accuracy class	±1.6%

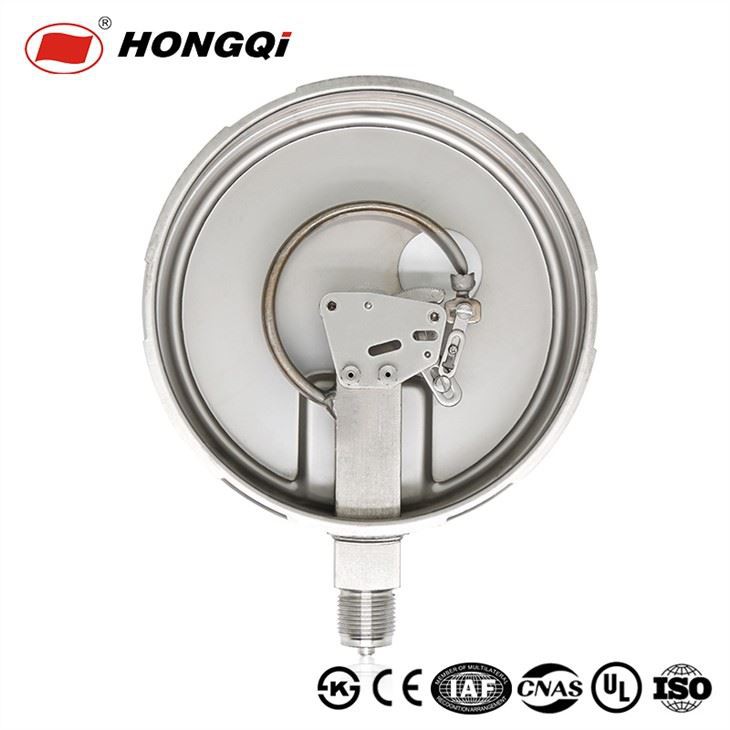

Bourbon tube	C-shaped, stainless steel
Installation	Lower mount, back mount, or back mount with flange
Connection	Stainless steel, M20*1.5 or other required threads
Pointer	Aluminum, black
Movement	Stainless steel
Dial	Stainless steel, black lettering, with stop pin
Scale ranges	0-60MPa or -0.1~2.4MPa

Working Pressure

Steady pressure：3/4 * full scale range

Fluctuating pressure：2/3 * full scale range

Working Condition

Working temperature：5~55℃ for glycerin-filled gauge, -25~55℃ for silicone oil-filled gauge, -40~70℃ for dry gauge

Permissible humidity：No more than 80% of relative humidity

Hongqi Instrument, established in 1993, is one of the leading manufacturers and suppliers of 150mm lower/back mount stainless steel manometer m20*1.5,g1/2'',1/2'' npt ±1.6% accuracy in China. Providing you with low price and good service, we welcome you to wholesale the famous brands' gauge made in China at cheap price from our factory.
