PRODUCTS
Digital air pressure gauge
with Two Units ZG1/2'',G1/2'',1/2'' NPT ±0.1/0.2/0.5% Accuracy
Model NO：YS-100B
Accuracy: ±0.1, 0.2 or 0.5%
Nominal size: 100mm
Function：Local Indication Type, Electric Signal-controlled
Installation Structure：Direct Mounting
Type: Digital
Display: LCD screen; four-digit outcome with two
variable pressure units including kPa and MPa
Application: Industrial、Calibration、Medical etc.
Send Inquiry
Chat Now
Product Introduction
YS-100B

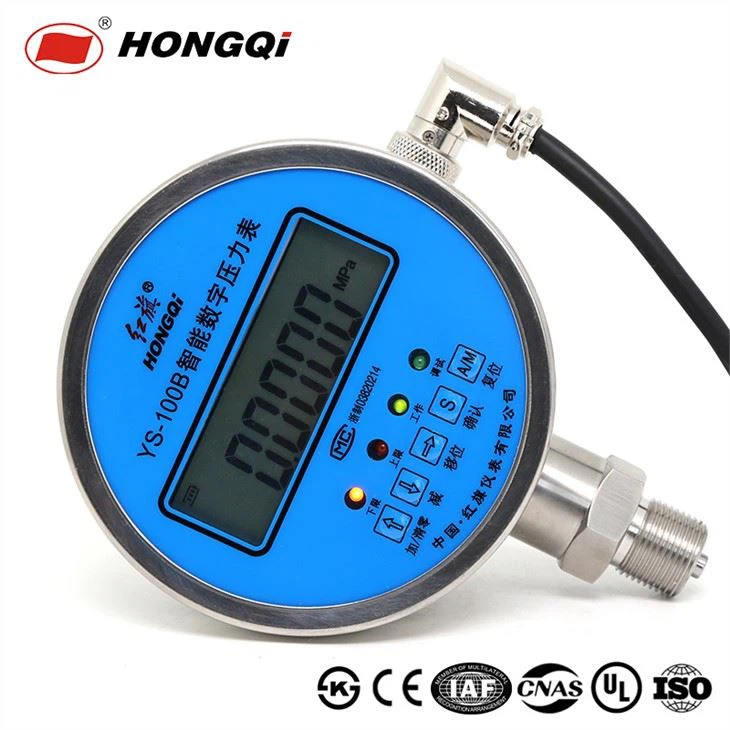

100mm Digital LCD Display Lower/Back Mount Pressure Gauge with Electric Output Signal and Two Units ZG1/2'',G1/2'',1/2'' NPT ±0.1/0.2/0.5% Accuracy .Hongqi digital air stainless steel pressure gauge
Application Description
It is applied for those gaseous or vaporous media which don't explode, crystallize and freeze, and corrode stainless steel.
Product Features
High precision
Fast track
High reliance
Long life service
Self-protection
Easy operation
Product Description
| Nominal size | 100mm |
| Accuracy class | ±0.1, 0.2 or 0.5% |
| Display | LCD screen; four-digit outcome with two variable pressure units including kPa and MPa |
| Installation | Lower mount, back mount |
| Connection | M20*1.5 or other required thread |
| Dial | Aluminum |
| Output signal | 0~5V or 4~20mA |
Power Supply
Prior to purchase, buyers must choose only one power supply solution from the two following ones, AC 220V or DC 24V.
Scale Ranges
It can function like pressure gauge (0 to 100 MPa), vacuum gauge (-0.1 to 0 MPa) and combined pressure gauge (-0.1 to 3 MPa). Prior to usage, specific range should be selected in accordance with specific pressure requirement.
Working Condition
Working temperature：-20 to 60℃
Permissible humidity：No more than 85% of relative humidity
Hongqi Instrument, established in 1993, is one of the leading manufacturers and suppliers of 100mm lcd display lower/back mount stainless steel digital pressure gauge with electric output signal and two units zg1/2'',g1/2'',1/2'' npt ±0.1/0.2/0.5% accuracy in China. Providing you with low price and good service, we welcome you to wholesale the famous brands' gauge made in China at cheap price from our factory.
FAQ:
1.The Quality Of Our Products
Our Pressure gauge are all 100% inspected, and with standard production process.
2.Price
We can provide our high quality products with reasonable price.
3.OEM services
In the past years, we have many OEM orders from very famous company all over the world.
4.Delivery
We can provides intime delivery. Some stocked models can be instant delivered.
5.Service
We provide best after-sale service all the time, for our goal is a long trade cooperation term.
6.Reputation
Our factory have 28 years experiences.We have already gaining the best reputation and response from the customers from all over the world.
We may accept consumers order with special requirement for instrument and meter!
Hot Tags: Digital air pressure gauge, suppliers China, manufacturers, factory, brands, wholesale, low price, cheap, made in China, Peak Digital Pressure Gauge, stainless steel gauge, 109mm Digital Pressure Gauge, Explosion proof Pressure Gauge, Back Mount Digital Manometer, Digital Precision Pressure Gauge
