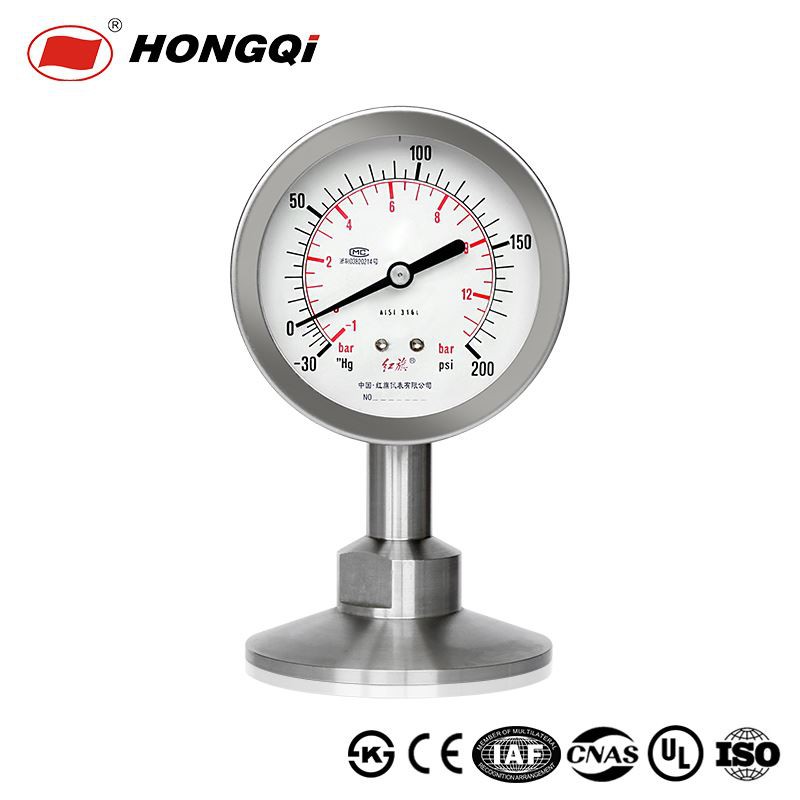

Low pressure diaphragm seal
It is guaranteed by diaphragm and flange which are suitable chosen and measured in the part of the touching area, and by the material of the gasket.
Diaphragm material: 316, 316L
Flange material: 316, 316L
Gasket material: silicon rubber, PVC
Sealed liquid:Just for safty and reliability, we can choose suitable sealed liquid according to different using ways.
Send Inquiry
Chat Now
Product Introduction

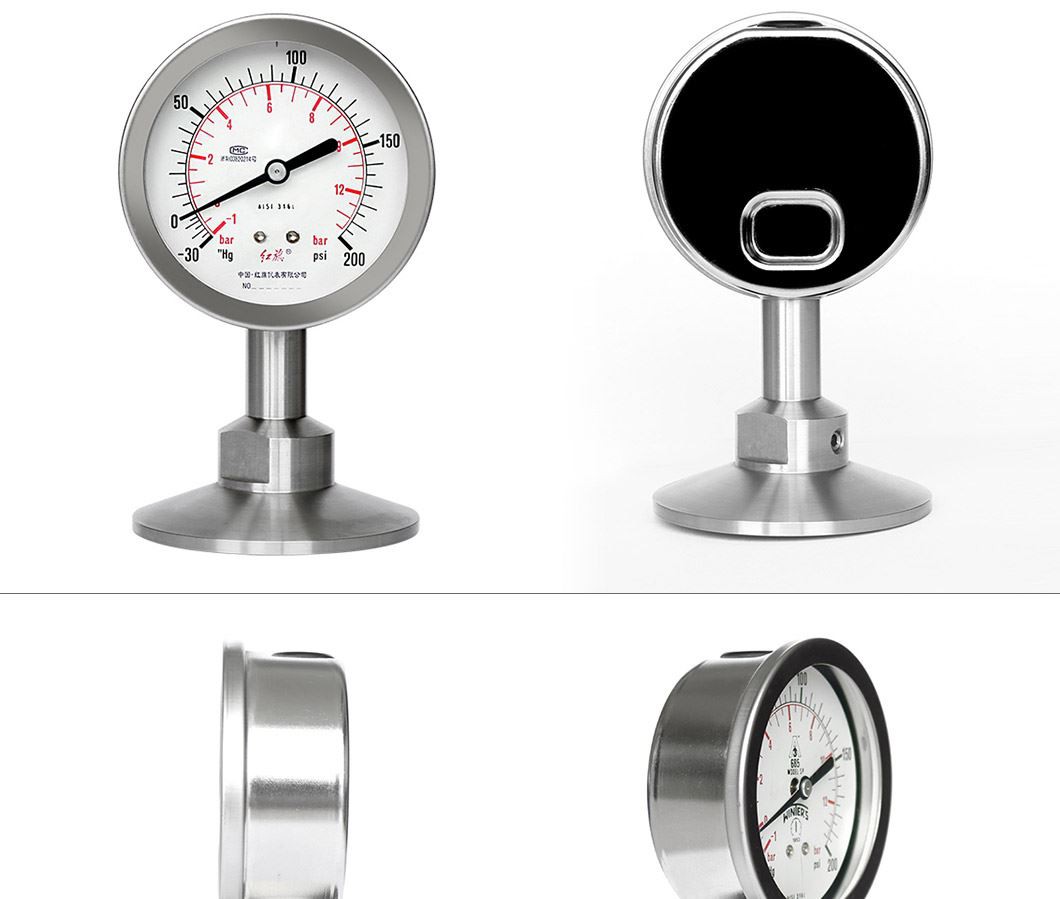

Diaphragm Pressure Gauge with Bottom Type Connection
A low pressure diaphragm seal is a critical component in many industries, particularly in chemical and petrochemical plants. It helps to ensure the safety and accuracy of processes, ultimately leading to higher quality products and greater efficiency.
These seals are designed to withstand low pressures while also protecting the pressure measuring instruments from harmful substances such as corrosive chemicals or high-temperature fluids. By effectively separating the measuring instrument from the process, low pressure diaphragm seals help to prevent damage and contamination, which can lead to costly downtime or even accidents.
Moreover, these seals are highly durable and can resist environmental factors such as extreme temperatures, pressure changes, and even vibration. They are also easy to install and maintain, adding to their versatility and cost-effectiveness.
In conclusion, the low pressure diaphragm seal is a crucial component in many industrial applications due to its ability to protect instruments and ensure the quality, safety, and efficiency of processes. With its durability and ease of use, it remains an essential component in modern industries.
Features
Direct threaded processing type
Applicable with most measuring instruments
Double laser welding diaphragm design
Wide range corrosive applications
Stainless steel wetted parts with options
Various diaphragm materials selection
Diaphragm or wetted parts coating or lining
Pressure range -1..0,-1..+24 to 0..400 bar
Various liquid filling supported
In order to make the universal pressure meter suitable for measuring the medium with strong corrosion, high temperature, high viscosity, easy to condense, easy to solidify, and solid floating matter, and the measurement medium must be prevented from directly entering the pressure gauge and to prevent the accumulation of sediment, the diaphragm should be used. A system of diaphragm gauges consisting of an isolator and a universal pressure gauge.
