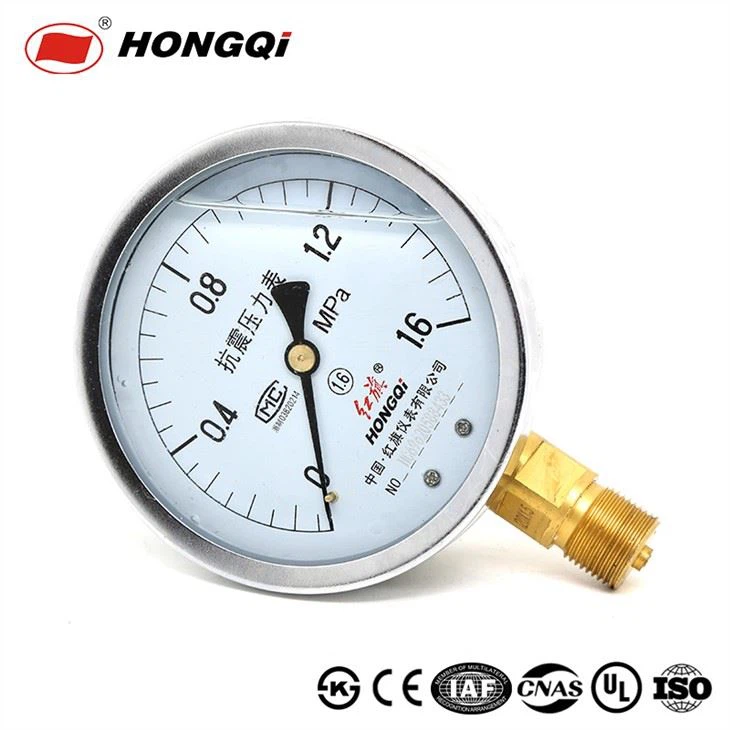

Glycerine Filled Manometer
Product features: Shakeproof
Accuracy class: 1.6% or 2.5%
Case material: Stainless steel case or steel chrome plated
Shake resistance grade:V.H.4
Send Inquiry
Chat Now
Product Introduction

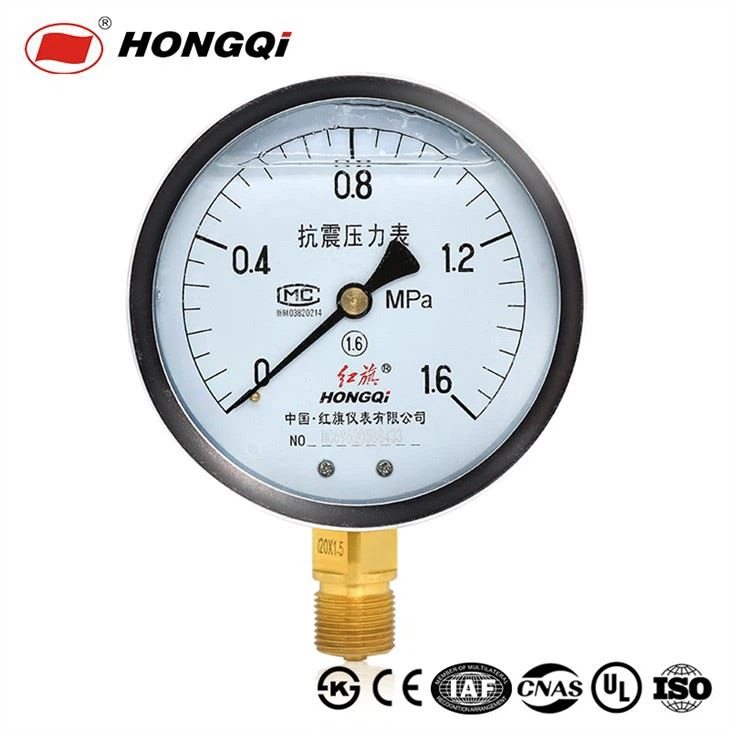

Glycerine Filled Manometer
A Glycerine Filled Manometer is an essential device used in many industries to measure pressure. This device is filled with glycerine, a non-toxic and non-corrosive fluid that is perfect for use in a variety of environments.
One of the significant advantages of using a Glycerine Filled Manometer is its ability to provide accurate measurements of pressure. It is essential to use a reliable measuring device when measuring pressure because any discrepancies in readings can result in significant industrial accidents.
Another advantage of using a Glycerine Filled Manometer is its durability. This device is designed to withstand harsh environments and is built to last for years. This durability makes it a perfect choice for many industries, including oil and gas.
The glycerine that is used to fill this device is also essential in keeping the internal components safe from damage. Glycerine acts as a lubricant for the internal mechanisms of the manometer, ensuring that it runs smoothly and efficiently. This ensures that the readings provided by the device are not compromised by any internal damage.
In conclusion, the Glycerine Filled Manometer is a valuable device used in many industries to measure pressure accurately. Its reliability, durability, and ability to protect its internal components make it an ideal choice for many industrial applications. Using this device can ensure the safety of personnel and equipment, making it a vital tool for any industrial operation.
Application
Chemical fiber and filature
Rubber & plastic machinery
The equipment of high temperature steam
High temp fluid pressure measuring and controlling
Feature

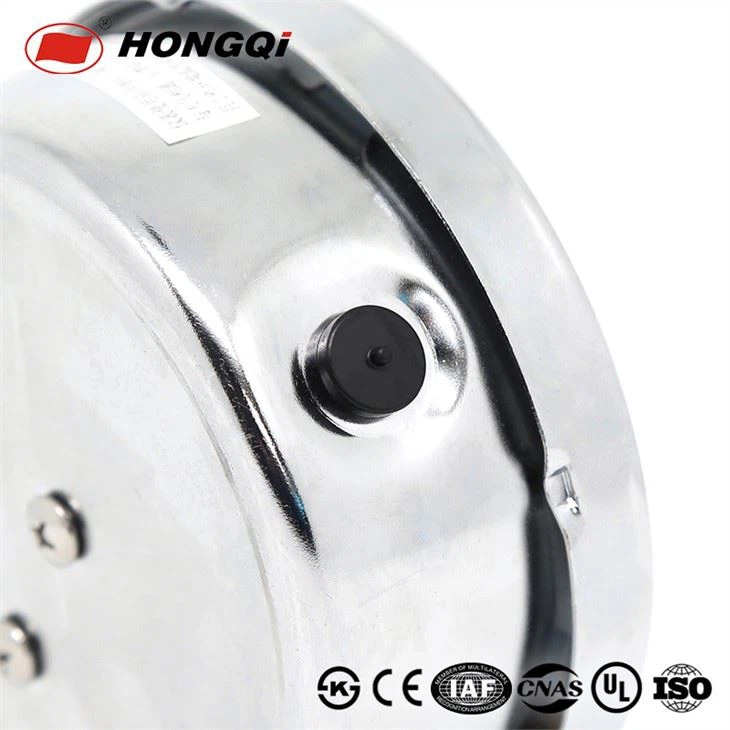

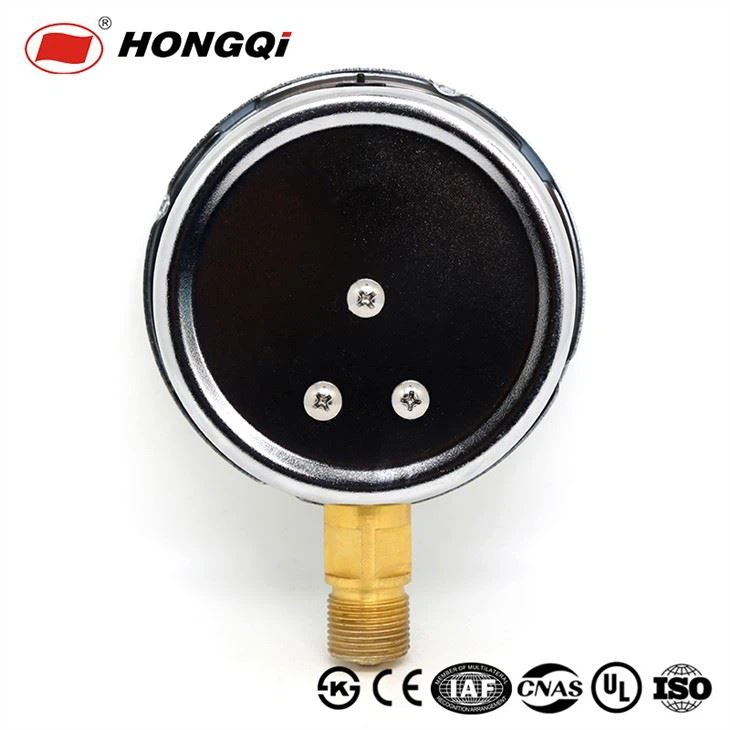

The outer case of the stainless shake resistence pressure gauge is made of stainless steel material,can be used in the environment which has strong corrosion and violent shakence.
Specification
Ranges | 0….1MPa to 0….150MPa |
Accuracy | ±2.5% ±1.6% |
Working Temperature | -20°c~70°c |
Configuration | Bourdon tube |

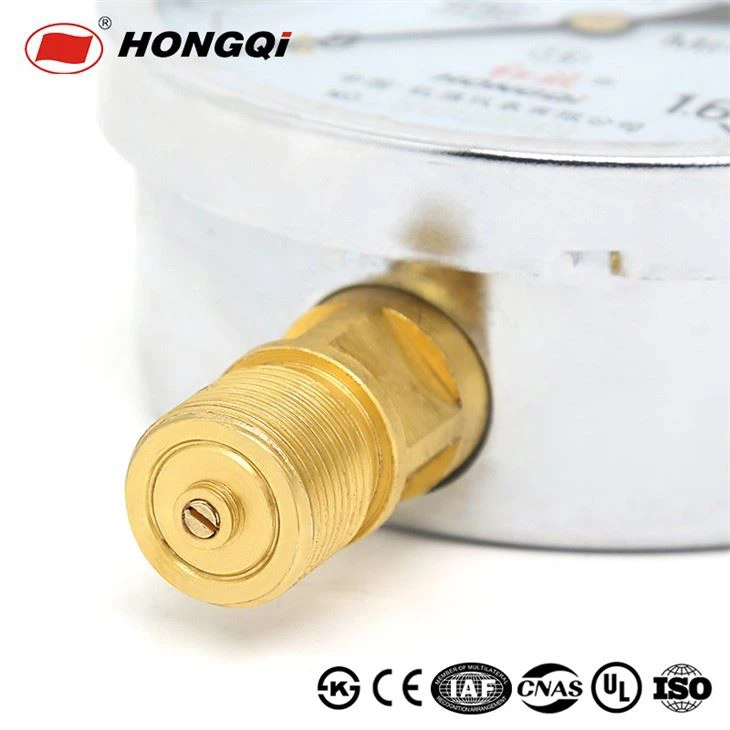

Connection: | Brass Or Stainless steel |
Window:. | Glass Or Plastic |
Dial Diameter | 100mm high pressure level gauge |
Process Connection | 1/8",1/4",3/8",1/2",PT,BSP,NPT |
A glycerine-filled manometer is a device used to measure pressure. It consists of a transparent tube filled with a liquid, usually glycerine, and a scale indicating pressure readings in units such as psi or kPa. The liquid is typically chosen for its ease of flow and resistance to freezing or evaporation. The tube is usually made from glass or plastic and is bent into a U-shape with one end open to the atmosphere and the other connected to the system or device being measured. As pressure increases in the system, the liquid in the tube rises, indicating the pressure reading on the scale. The glycerine-filled manometer is commonly used in industrial and laboratory applications where precise pressure measurements are required.

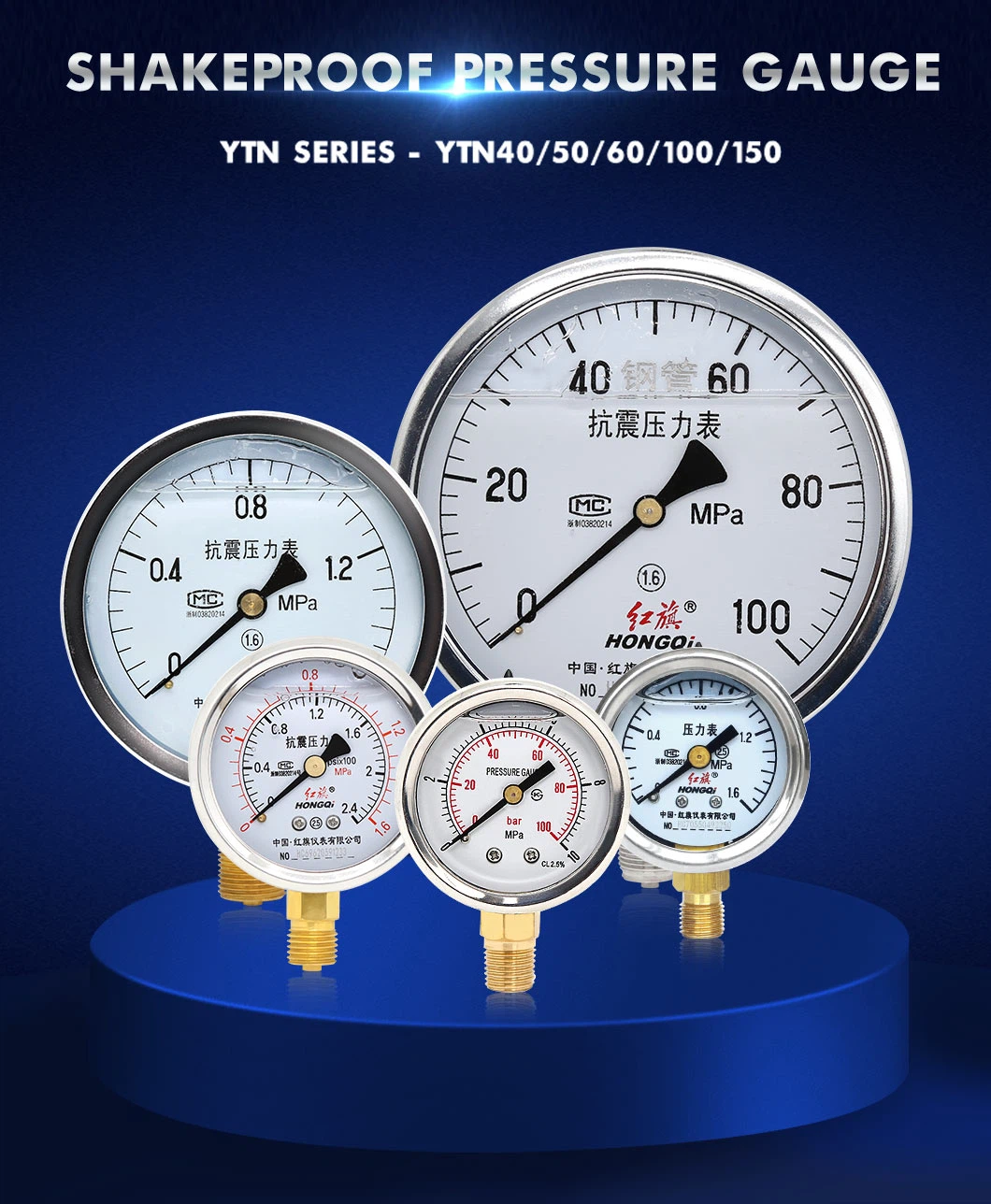

The shake resistance pressure gauge is mainly used in metallurgical industry,power station, oil
industry,chemical industry,and so on.The damp oil is filled inside this gauge and with the according
buffer it has excellent shake resistance ability.And it is well suited for measuring those medium which
has strong pulsation or pressure concussion or service medium which disappear suddenly in the
manufacture,or for the situation which shake violently.This gauge can measure the average value of
the pulsant pressure of the gas or liquid,so that it can avoid the damage which is caused by the
strong pulsation and violent shankence and insure the measurement precise.The outer case of the
stainless shake resistance pressure gauge is made of stainless steel materialcan be used in the
environment which has strong corrosion and violent shakence
| Model | D | H | H₂ | B | d | L |
| YTN-60 | Φ60 | 32 | 13 | 55 | M14x1.5 | 14 |
| YTN-60B | 32 | 13 | 55 | |||
| YTN-100 | Φ100 | 44 | 18 | 90 | M20x1.5 | 20 |
| YTN-100B | 44 | 18 | 90 | |||
| YTN-150 | Φ150 | 44 | 18 | 120 | M20x1.5 | 20 |
| YTN-150B | 44 | 18 | 120 |
| Model | Structure | Scale range（Mpa） | Accuracu class |
| YTN-60 | Low mount | 0~0.1;0~0.16:0~0.25; 0~0.40~060~1;0~1.6 0-2.50~4;0~60-10; 0~16;0~25:0~40 | 2.5 |
| YTN-60B | Low mount | ||
| YTN-100 | Low mount | 0~0.1:0~0.16:0~0.25; 0~0.40-060-1;0~1.6 0~2.50~40-60~10: 0~16:0~25;0~40:0~60 | 1.6 |
| YTN-100B | Low mount | ||
| YTN-150 | Low mount | 0-0.10-0.160~0.25 0~0.40~060~1;0~1.6 0~2.5;0~4;0~60~100~16: 0~25;0~40;0~60;0~100 | |
| YTN-150B | Low mount |
