Steel chrome plated pressure gauge with flange

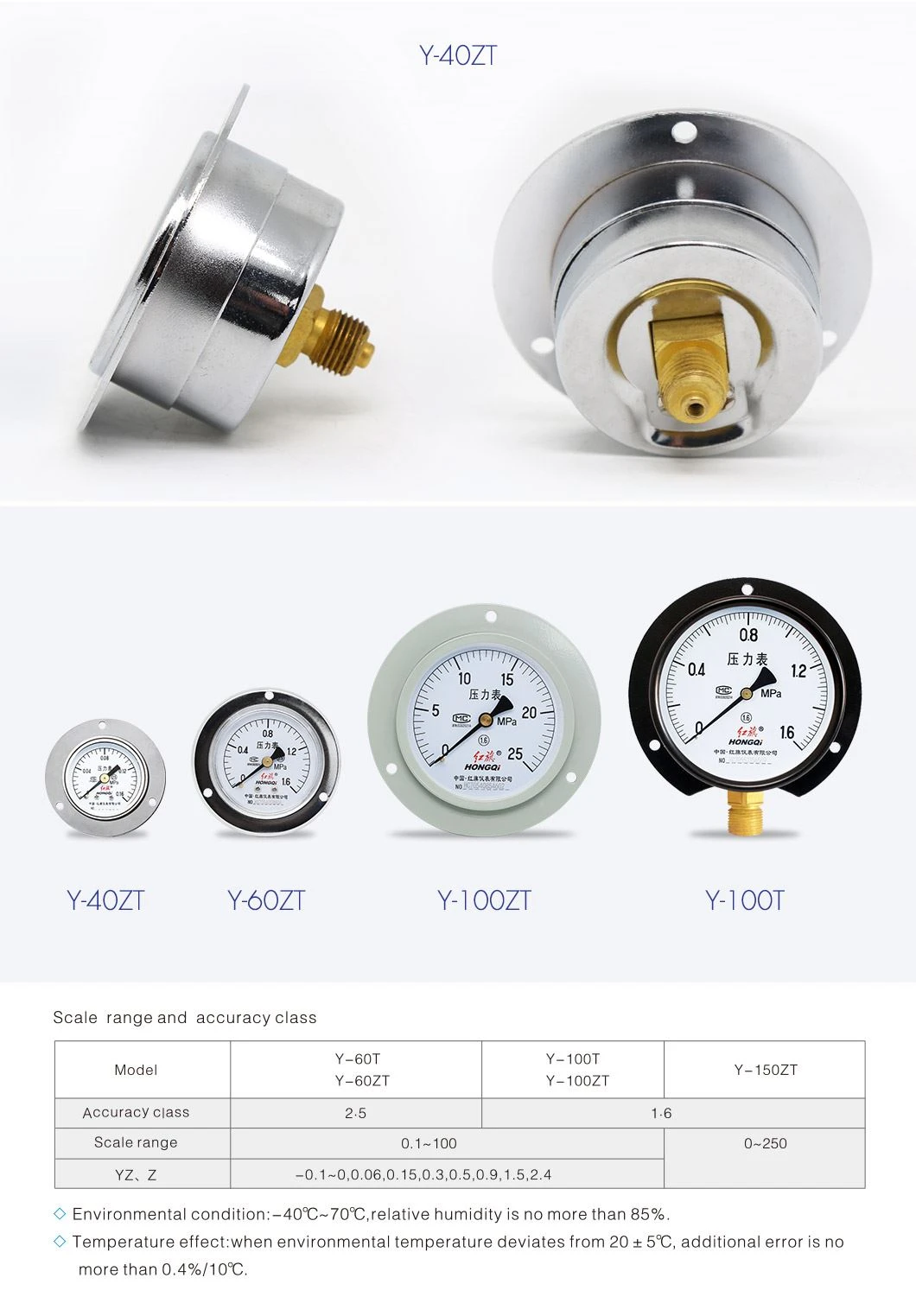

Model NO：Y-40ZT、Y-50ZT、60ZT、100ZT
Accuracy: 1.6%,2.5%
Nominal size: 40mm、50mm、60mm、100mm
Measuring Range: Medium-pressure Gauge
Function：Local Indication Type
Installation Structure：Direct Mounting
Display: dial reading
variable pressure units including kPa and MPa
Application: Industrial、Calibration、Medical etc.

Send Inquiry

Chat Now

Pressure Gauge Specification

Steel chrome plated pressure gauge with flange

Diameter Size	1.5", 2", 2.5", 3", 4", 6", 8", 10"
Pressure range	- 0.1 - 0 -100Mpa
Case	Chrome plating
Ring	With front flange
Movement	brass
Socke	brass
Connection sizes	1/8, 1/4, 3/8 and 1/2 inches
Connection threads	NPT, BSP (G, PF), BSPT (ZG, PT)
Connection mounting	center back
Bourdon tube	stainless steel,phosphor bronze
Dial and pointer	aluminum
Dial plate	single or dual scale (psi, kpa,mpa, bar, kg/cm2...11units avaible)
Window	Sheet glass, PC glass...
Accuracy range	1%, 1.6%,2.5% full scale
Working temperture	-40℃- 70℃
Filled medium	N/A
Filling cap	Not fillable

The company has a high-quality management and scientific research team, strong technical force, scientific and technological innovation ability.The company has built a scientific research team of more than 30 people, including 5 senior engineers and 15 engineers, and has carried out technical cooperation with domestic famous universities, scientific research institutions and world famous manufacturers.
