A water manometer is a device that measures the pressure of a gas by using a column of water. It typically consists of a U-shaped tube filled with water, with one end connected to the source of gas and the other end open to the atmosphere. As gas pressure is applied to one end, the water level in the opposite arm of the tube rises, indicating the pressure of the gas. The height of the water column is proportional to the pressure of the gas being measured. Water manometers are commonly used in HVAC systems, respiratory therapy, and other applications where precise pressure measurements are required.

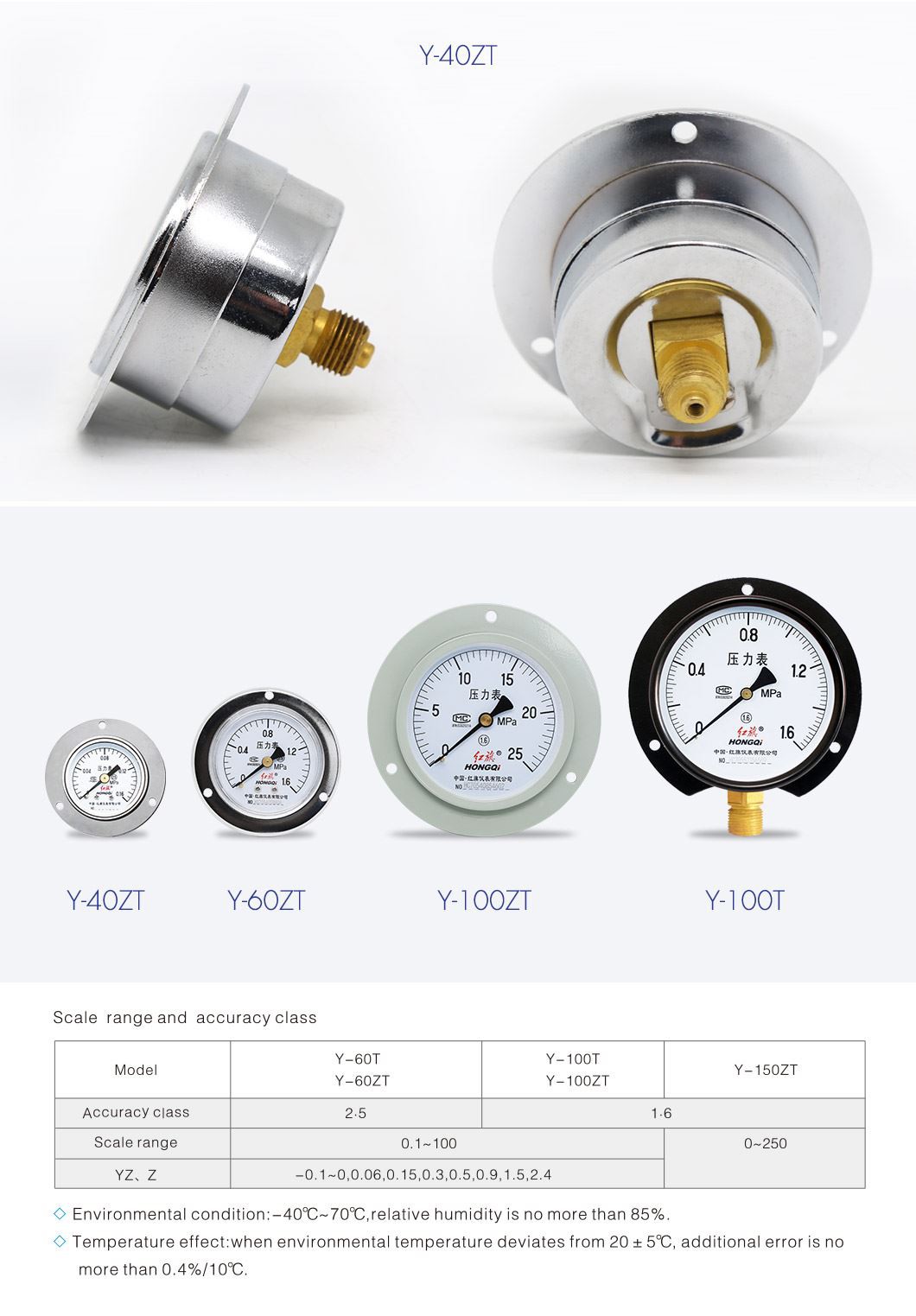

SPECIFICATIONS

Accuracy	2.5%, 1.6%, 1.0%
Ambient temperature	-40°C to +65°C
Process temperature	Max 100°C (Dry)
Operating pressure	75% of the scale value
Over pressure limit	25% of full scale value
Case	black painted steel
Ring	black painted steel
Bourdon Tube	Phosphor Bronze
Socket	Brass
Movement	Phosphor Bronze
Dial	Aluminum, black & red graduation on white background
Pointer	Aluminum, black
Window	sheet glass, PC
Standard Scale	MPa, Kg/cm2, psi/kPa, bar...customized
Connection	1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized)
