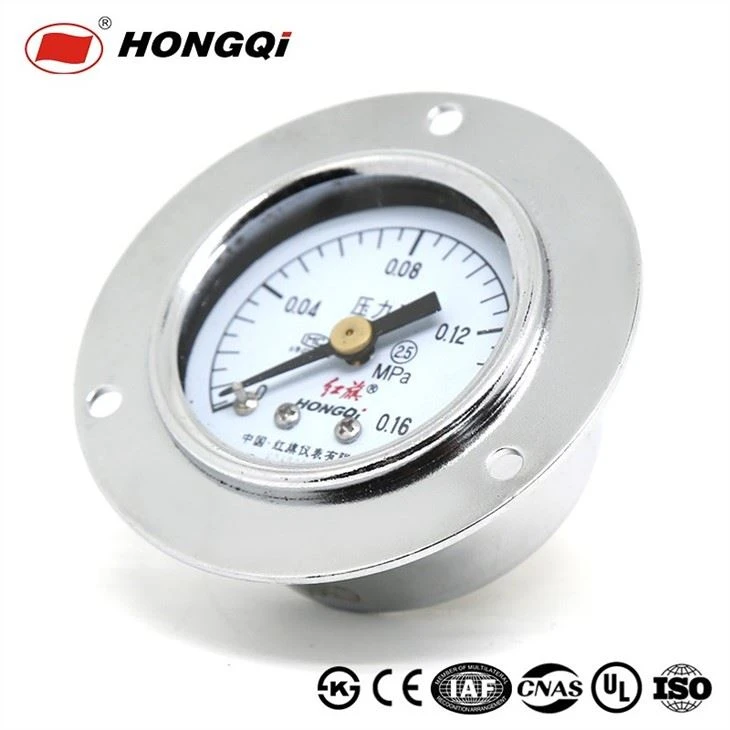

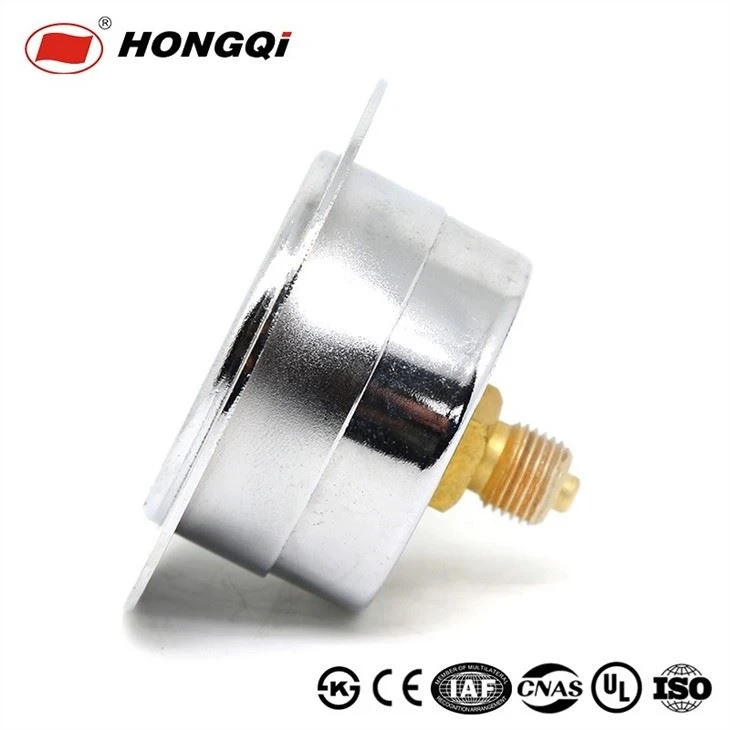

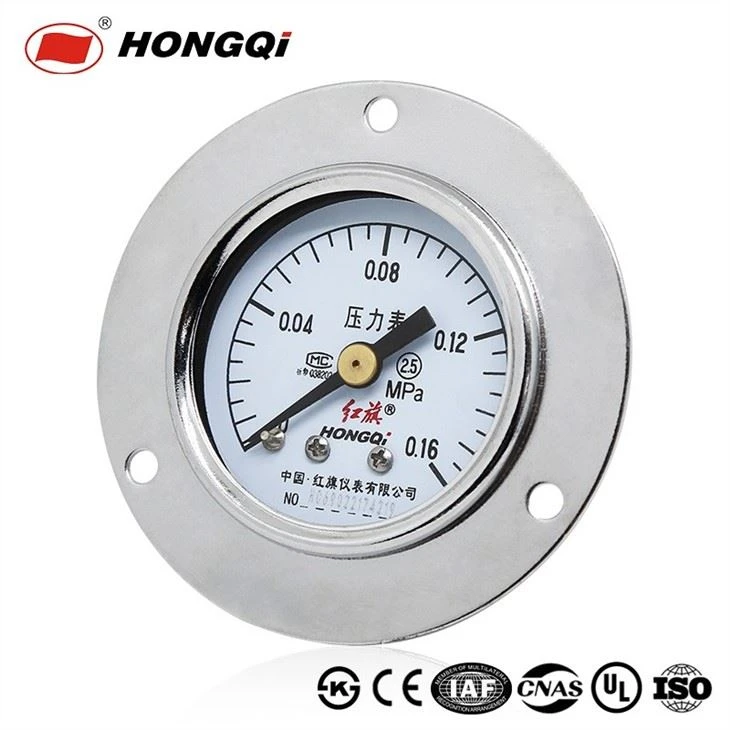

HongQi instrument Y-series Pressure Gauges: Bottom or Center Back Mount

Application: Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines and refrigerating plants, food and beverage, pharmaceutical industries. For measuring water, oil, gas or any medium not corrosive to brass or phosphor bronze.
SPECIFICATIONS

Accuracy	2.5%, 1.6%, 1.0%
Ambient temperature	-40°C to +65°C
Process temperature	Max 100°C (Dry)
Operating pressure	75% of the scale value
Over pressure limit	25% of full scale value
Case	black painted steel
Ring	black painted steel
Bourdon Tube	Phosphor Bronze
Socket	Brass
Movement	Phosphor Bronze
Dial	Aluminum, black & red graduation on white background
Pointer	Aluminum, black
Window	sheet glass, PC
Standard Scale	MPa, Kg/cm2, psi/kPa, bar...customized
Connection	1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized)

An air pressure gauge is a tool used to measure the amount of pressure present in a particular air system. It is commonly used in automotive, aviation, and industrial settings to ensure that the air pressure in tires, engines, and other sensitive systems is correct and safe for operation. Air pressure gauges can measure pressure in various units, including pounds per square inch (PSI), bar, and kilopascal (KPa). They can be analog or digital and are available in a range of sizes and styles to suit different applications.
