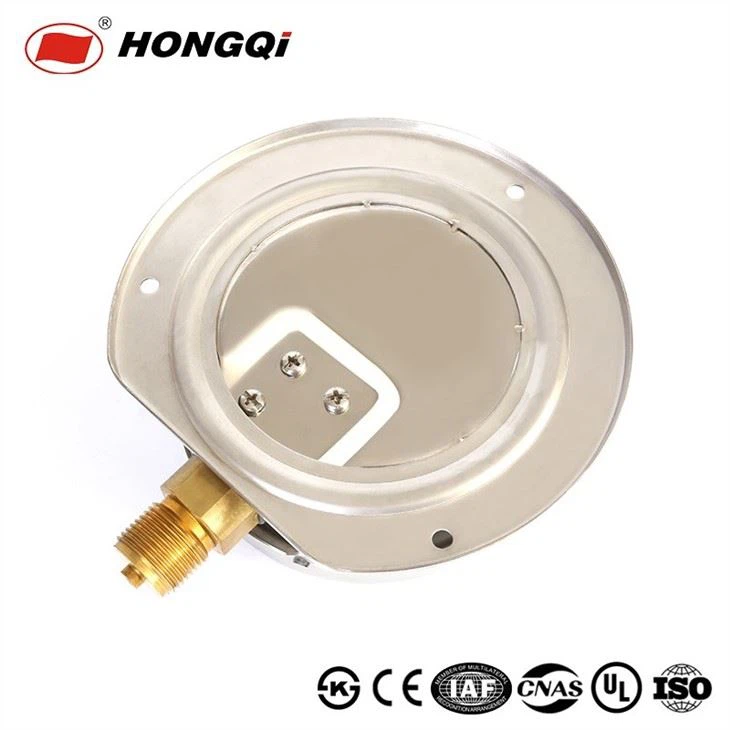

60/100/150mm Stainless Steel Case Liquid Filled Pressure Gauge

60/100/150mm Stainless Steel Case Liquid Filled Pressure Gauge

Name: 60/100/150mm Stainless Steel Case Liquid Filled Pressure Gauge Manufacturers and Suppliers China - Wholesale from Factory - Hongqi Instrument
Brand: Hongqi
SKU: 173469205

Accuracy: 2.5%, 1.6%, 1.0%
Ambient temperature: -40°C to +65°C
Case: AISI 304 SS
Ring: AISI 304 SS, crimped ring, bayonet ring
Bourdon Tube: Phosphor Bronze or stainless steel
Socket: Brass or stainless steel
Movement: Phosphor Bronze or stainless steel
Dial: Aluminum, black & red graduation on white background
Pointer: Aluminum, black
Window: sheet glass, PC
Fill: Glycerine, Silicone
Gaskets/Vent/Blow out Plugs: Neoprene
Standard Scale: MPa, Kg/cm2, psi/kPa, bar...(customized)
Connection: 1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized)

Send Inquiry

Chat Now

Product Introduction

60/100/150mm Stainless Steel Case Liquid Filled Pressure Gauge

Liquid filled pressure gauges are one of the most reliable and accurate pressure measuring devices on the market today. They are used in a variety of applications such as hydraulic systems, refrigeration systems, and gas delivery systems.

Hongqi Instrument (Changxing) Co., Ltd., established in 1993, is a modern technology enterprise specializing in the R&D, production, sales, and service of pressure and temperature instruments.
