Hongqi 1/8" Connection General Pressure Gauge
video

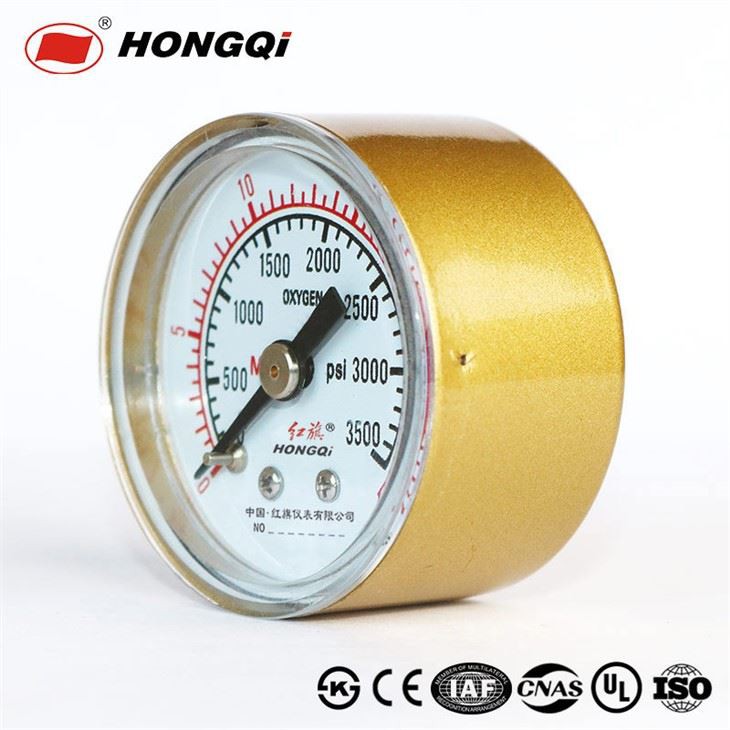

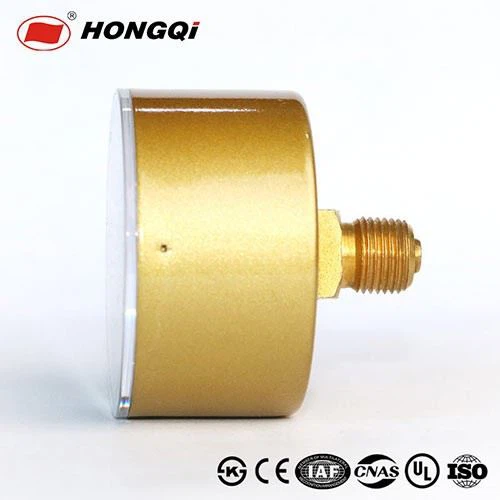

Hongqi 1/8" Connection General Pressure Gauge

Hongqi 1/8" Connection General Pressure Gauge

Hongqi 1/8" Connection General Pressure Gauge HongQi instrument Y-Zseries Pressure Gauges: Bottom or Center Back Mount
Application: Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines and refrigerating plants, food and beverage, pharmaceutical industries.
For measuring water, oil, gas or any medium not corrosive to brass or phosphor bronze.
Send Inquiry
Chat Now
Product Introduction



Hongqi 1/8" Connection General Pressure Gauge

HongQi instrument Y-Zseries Pressure Gauges: Bottom or Center Back Mount Application: Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines and refrigerating plants, food and beverage, pharmaceutical industries. For measuring water, oil, gas or any medium not corrosive to brass or phosphor bronze. SPECIFICATIONS

Accuracy 2.5%, 1.6%, 1.0%
Ambient temperature -40°C to +65°C
Process temperature Max 100°C (Dry)
Operating pressure 75% of the scale value
Over pressure limit 25% of full scale value
Case Painted steel
Ring Painted steel
Bourdon Tube Phosphor Bronze
Socket Brass
Movement Phosphor Bronze
Dial Aluminum, black & red graduation on white background
Pointer Aluminum, black
Window sheet glass, PC
Standard Scale MPa, Kg/cm2, psi/kPa, bar...customized
Connection 1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized)

Hongqi Instrument Co., Ltd  is a professional manufacturer of all kinds of high quality gauges instruments.Our main product lines include dry gauge, liquid filled pressure gauge, special pressure gauge, capsule gauge, stainless steel liquid filled pressure gauge, thermometer, accessories..Our vision and strategy is to become the leading industrial instrumentation manufacturer for pressure gauge and temperature measurement. We will be distinct itself from competitors by offering a diversified and high quality product line, superior customer service, and a global distribution network.
