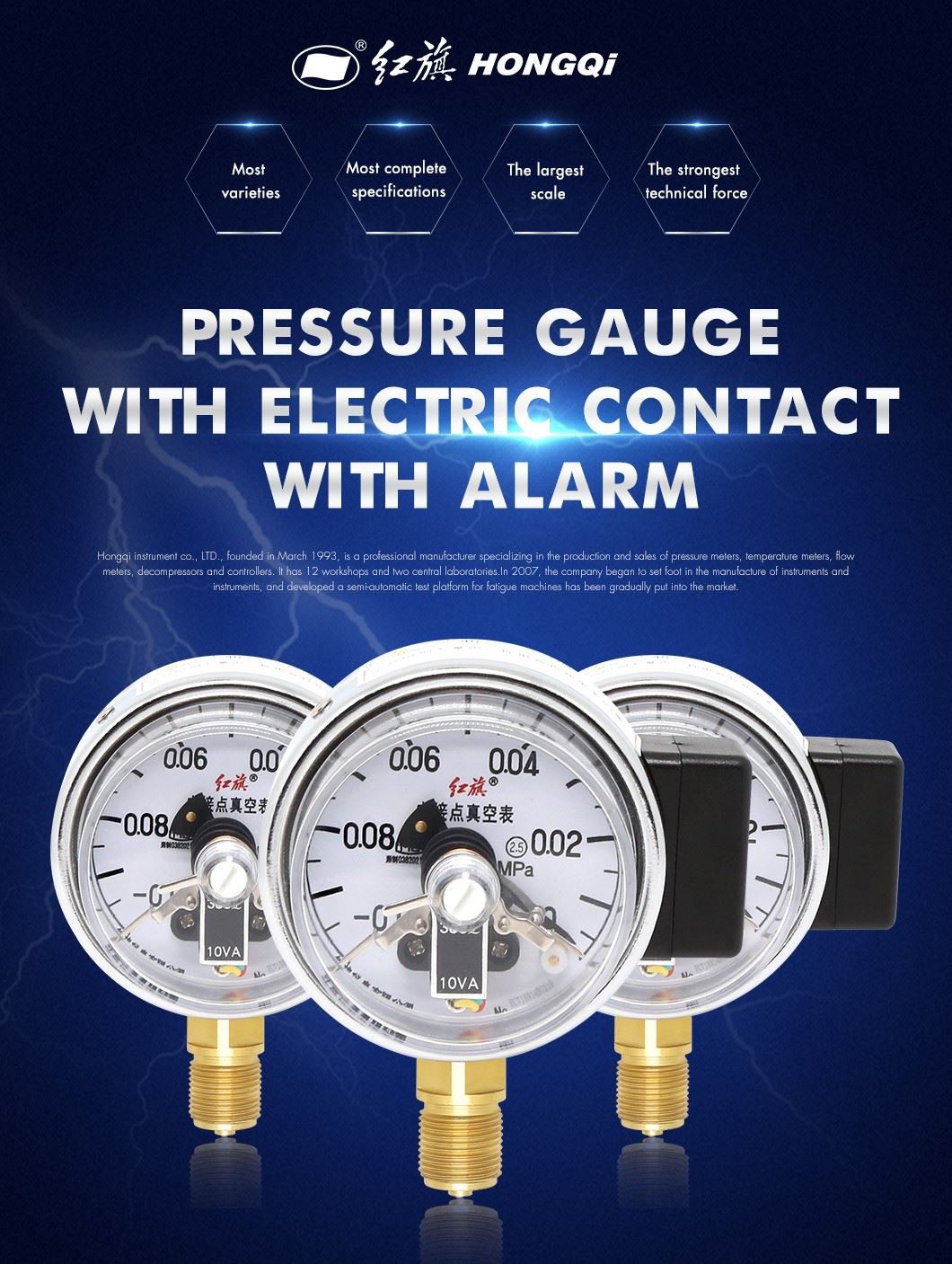

YXC-63 Vacuum Lower Mount Electric Contact Manometer

YXC-63 Vacuum Lower Mount Electric Contact Manometer

63mm grey steel case(chrome bezel)/Lower Mount Pressure Gauge/electric contact/Thread ZG1/4'',G1/4'',1/4'' NPT ±2.5% Accuracy

Application Description

It is applied for those gaseous or liquid which neight corrode copper alloys nor explode, nor crystallize. If the gauge is liked with the corresponding electric equipment, it will

realize double controlling to the maximal pressure measurement and minimal pressure measurement.

This gauge have the function of measuring and controlling, and can set the up limit and down limit pressure value. And the measurement was reliable. This gauge is well  suited

for the oil industry and chemical industry and power station and usually is link with the electirc equipment.

Product Features

Reliable operation

Long life service

Great contact switch power

Product Description

Nominal size63mm

Accuracy class±2.5%

Display: single or compound scale, variable pressure units including kPa and MPa

InstallationLower mount or back mount

Connectioncustomized

DialAluminum

Contact power: 30VA

Maximal votage: 220V D.C OR 380V A.C

Scale Ranges

It can function like pressure gauge (0 to 100 MPa), vacuum gauge (-0.1 to 0 MPa) and combined pressure gauge (-0.1 to 3 MPa). Prior to usage, specific range should be selected in accordance with specific pressure requirement.

Working Condition

Working temperature：-20 to 60℃

Permissible humidity：No more than 85% of relative humidity

Hongqi Instrument, established in 1993, is one of the leading manufacturers and suppliers of 100mm lcd display lower/back mount stainless steel digital pressure gauge with electric output signal and two units zg1/2'',g1/2'',1/2'' npt ±0.1/0.2/0.5% accuracy in China. Providing you with low price and good service, we welcome you to wholesale the famous brands' gauge made in China at cheap price from our factory.

FAQ:

1.The Quality Of Our Products
Our Pressure gauge are all 100% inspected, and with standard production process.
2.Price
We can provide our high quality products with reasonable price.
3.OEM services
In the past years, we have many OEM orders from very famous company all over the world.
