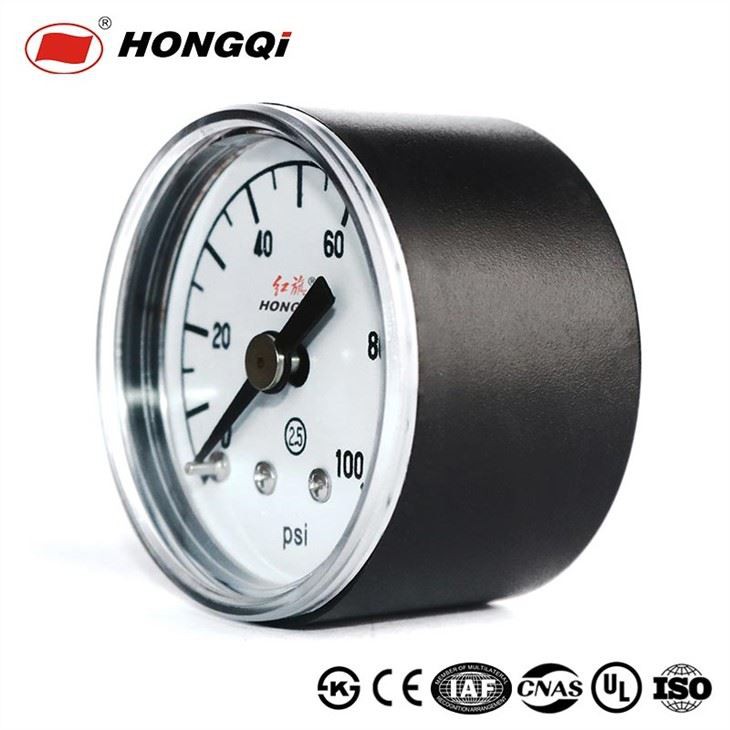

Steel Case Pressure Gauge With Brass Internals
Steel Case Pressure Gauge with Brass Internals
The pressure gauge can be applied for those gaseous, liquid or vaporous media which don' t explode, crystallize and freeze, and corrode stainless copper or copper alloy. It adopts helical case, standardized copper connector, broadened bourdon tube, stainless steel movement and strengthened link. In order to ensure accuracy class, advanced equipment and technique are used in the process of calibration and testing. It is characterized by good appearance, high precision, small distance after tapping, good repetition and long service life. Hongqi Instrument (Changxing) Co., Itd has put into operation.
SPECIFICATIONS
| Accuracy | 2.5%, 1.6%, 1.0% |
| Ambient temperature | -40°C to +65°C |
| Process temperature | Max 100°C (Dry) |
| Operating pressure | 75% of the scale value |
| Over pressure limit | 25% of full scale value |
| Case | Painted steel Or Plastic Case |
| Ring | painted steel |
| Bourdon Tube | Phosphor Bronze |
| Socket | Brass |
| Movement | Phosphor Bronze |
| Dial | Aluminum, black & red graduation on white background |
| Pointer | Aluminum, black |
| Window | sheet glass, PC |
| Standard Scale | MPa, Kg/cm2, psi/kPa, bar...customized |
| Connection | 1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized) |
Welcome to call us to learn more.
