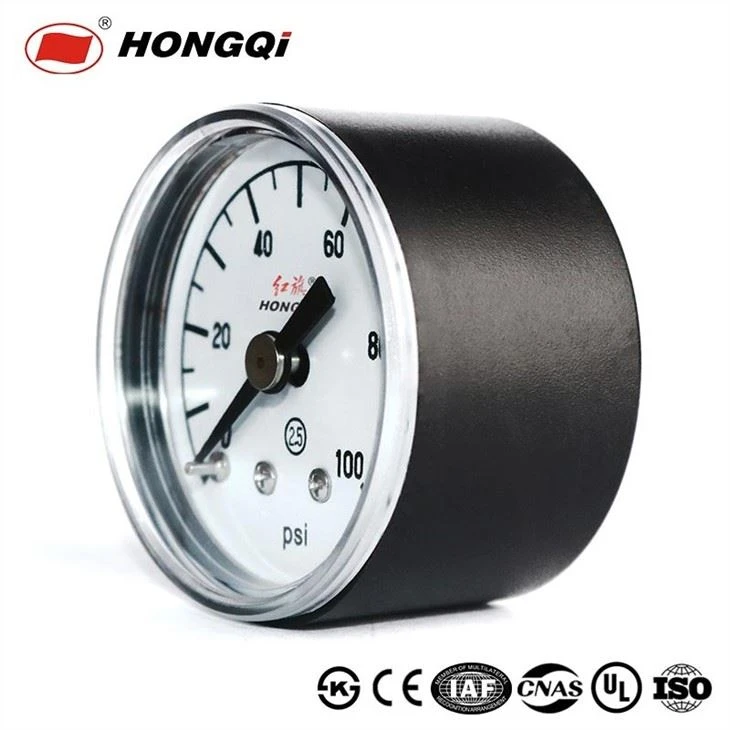

40mm Axial Mounted Black Plastic Dry Pressure Gauge

40mm Axial Mounted Black Plastic Dry Pressure Gauge Case: Painted steel Or Plastic Case Ring: painted steel Bourdon Tube: Phosphor Bronze Socket: Brass Movement: Phosphor Bronze Dial: Aluminum, black & red graduation on white background Pointer: Aluminum, black Application: Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines and refrigerating plants, food and beverage, pharmaceutical industries. For measuring water, oil, gas or any medium not corrosive to brass or phosphor bronze

Send Inquiry

Chat Now

Y-40Z

40mm Axial Mounted Black Plastic Dry Pressure Gauge

The pressure gauge can be applied for those gaseous, liquid or vaporous media which don' t explode, crystallize and freeze, and corrode stainless copper or copper alloy. It adopts helical case, standardized copper connector, broadened bourdon tube, stainless steel movement and strengthened link. In order to ensure accuracy class, advanced equipment and technique are used in the process of calibration and testing. It is characterized by good appearance, high precision, small distance after tapping, good repetition and long service life. Hongqi Instrument (Changxing) Co., Itd has put into operation. Thanks to efforts of 15 offices and more than 100 agents, our products are popular across the country, and are exported to over 10 Mid-East and Euro-American countries and regions. In 2000, we were recognized as enterprise name without administrative divisions by state administration for industry and commerce, and can do import and export business.

SPECIFICATIONS

Accuracy	2.5%, 1.6%, 1.0%
Ambient temperature	-40°C to +65°C
Process temperature	Max 100°C (Dry)
Operating pressure	75% of the scale value
Over pressure limit	25% of full scale value
Case	Painted steel Or Plastic Case
Ring	painted steel
Bourdon Tube	Phosphor Bronze
Socket	Brass
Movement	Phosphor Bronze
Dial	Aluminum, black & red graduation on white background
Pointer	Aluminum, black
Window	sheet glass, PC
Standard Scale	MPa, Kg/cm2, psi/kPa, bar...customized
Connection	1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized)
