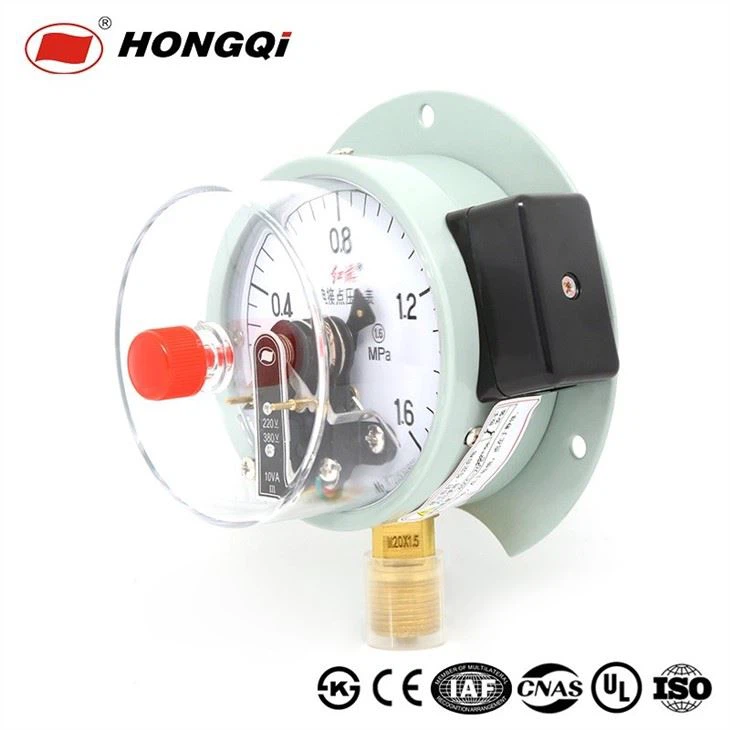

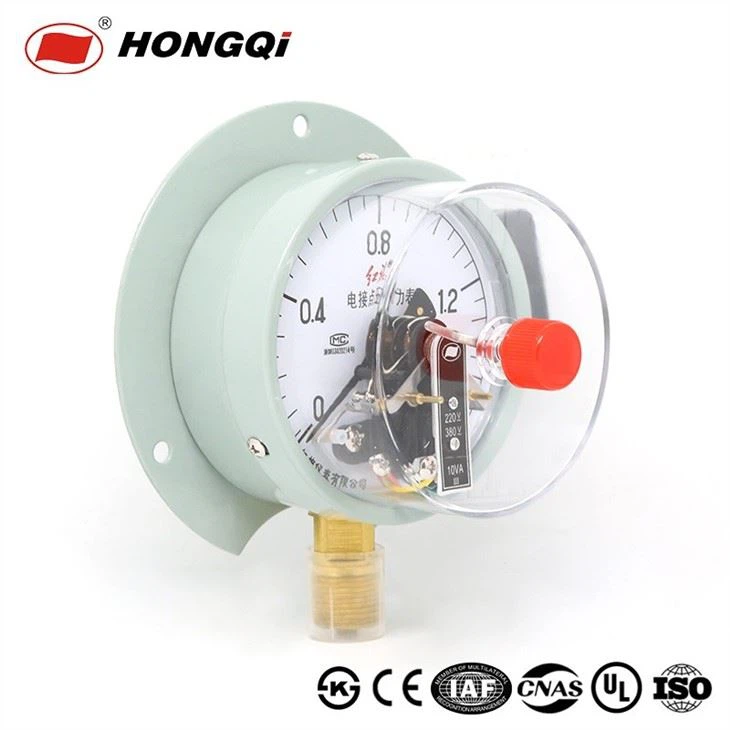

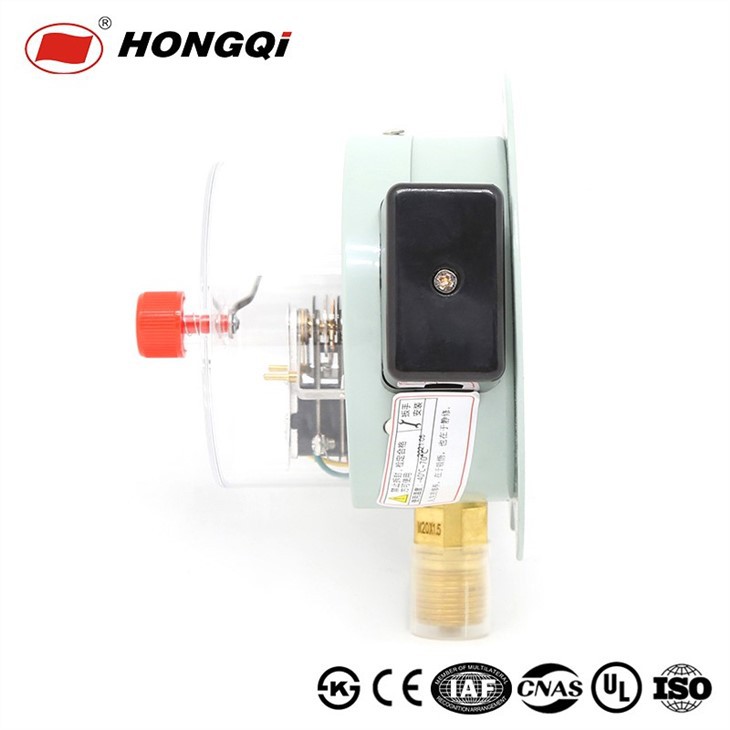

100mm YXC-100T Flange Pressure Gauge With Panel Mount

100mm YXC-100T Flange Pressure Gauge With Panel Mount

Flange pressure gauges are an important tool in the field of fluid and gas measurement. They are used to measure the pressure of the fluid or gas in a closed system. These gauges are attached to the pipe or valve through a flange connection, which gives them a secure and leak-proof attachment.

Flange pressure gauges come in a variety of styles and sizes to fit different types of systems. They are designed to withstand harsh conditions and provide accurate readings over prolonged periods of time. This makes them an ideal choice for industrial and commercial applications.

Flange pressure gauges are easy to use and read. They have a dial face that displays the pressure in units of measurement such as psi, kPa, or bar. The accuracy of these gauges depends on the quality of the components used in their manufacture. High-quality pressure gauges will provide more precise readings and have a longer lifespan.

Application Description

It is applied for those gaseous or liquid which neight corrode copper alloys nor explode, nor crystallize. If the gauge is liked with the corresponding electric equipment, it will

realize double controlling to the maximal pressure measurement and minimal pressure measurement.

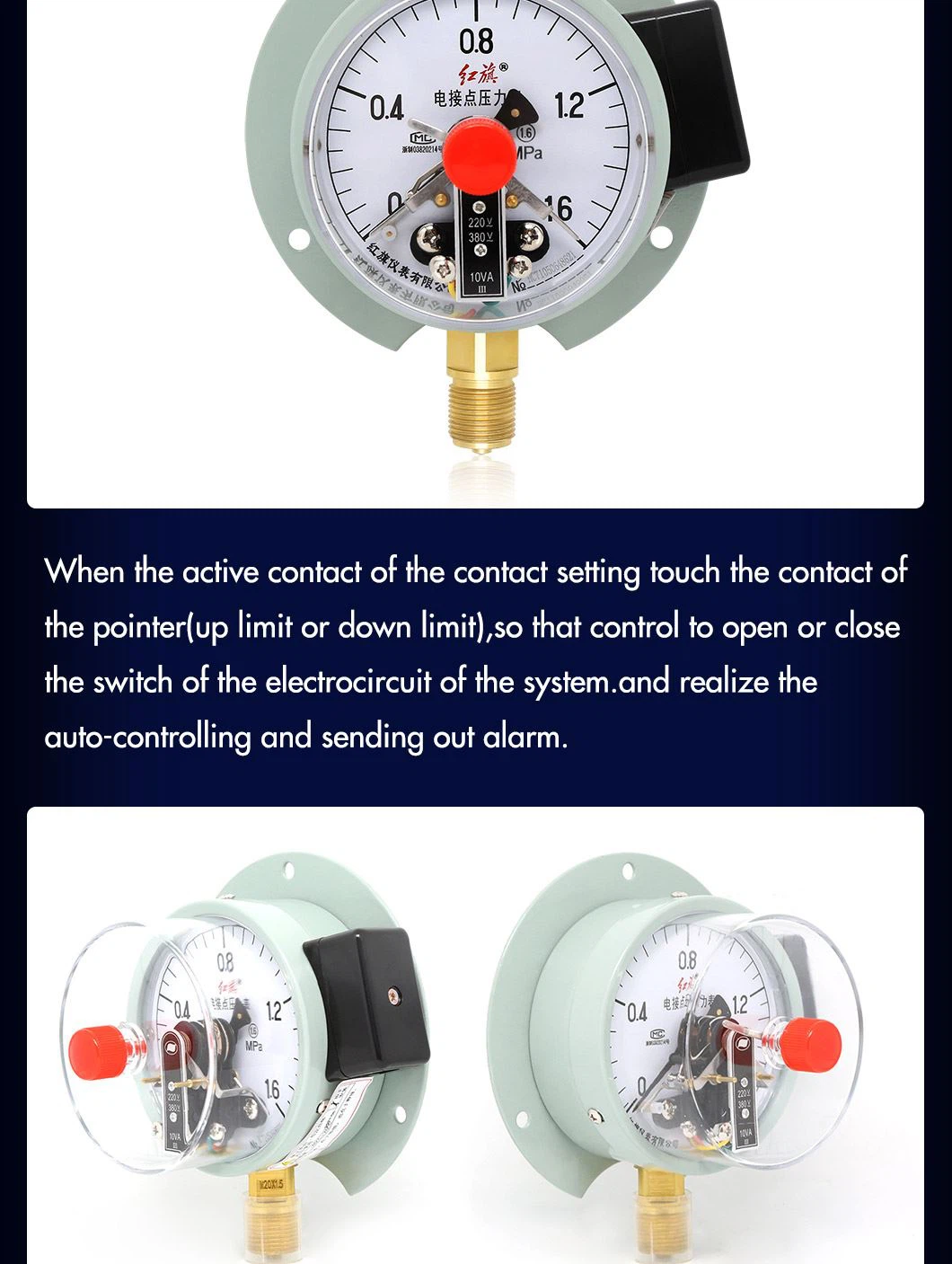

This gauge have the function of measuring and controlling, and can set the up limit and down limit pressure value. And the measurement was reliable. This gauge is well  suited

for the oil industry and chemical industry and power station and usually is link with the electirc equipment.

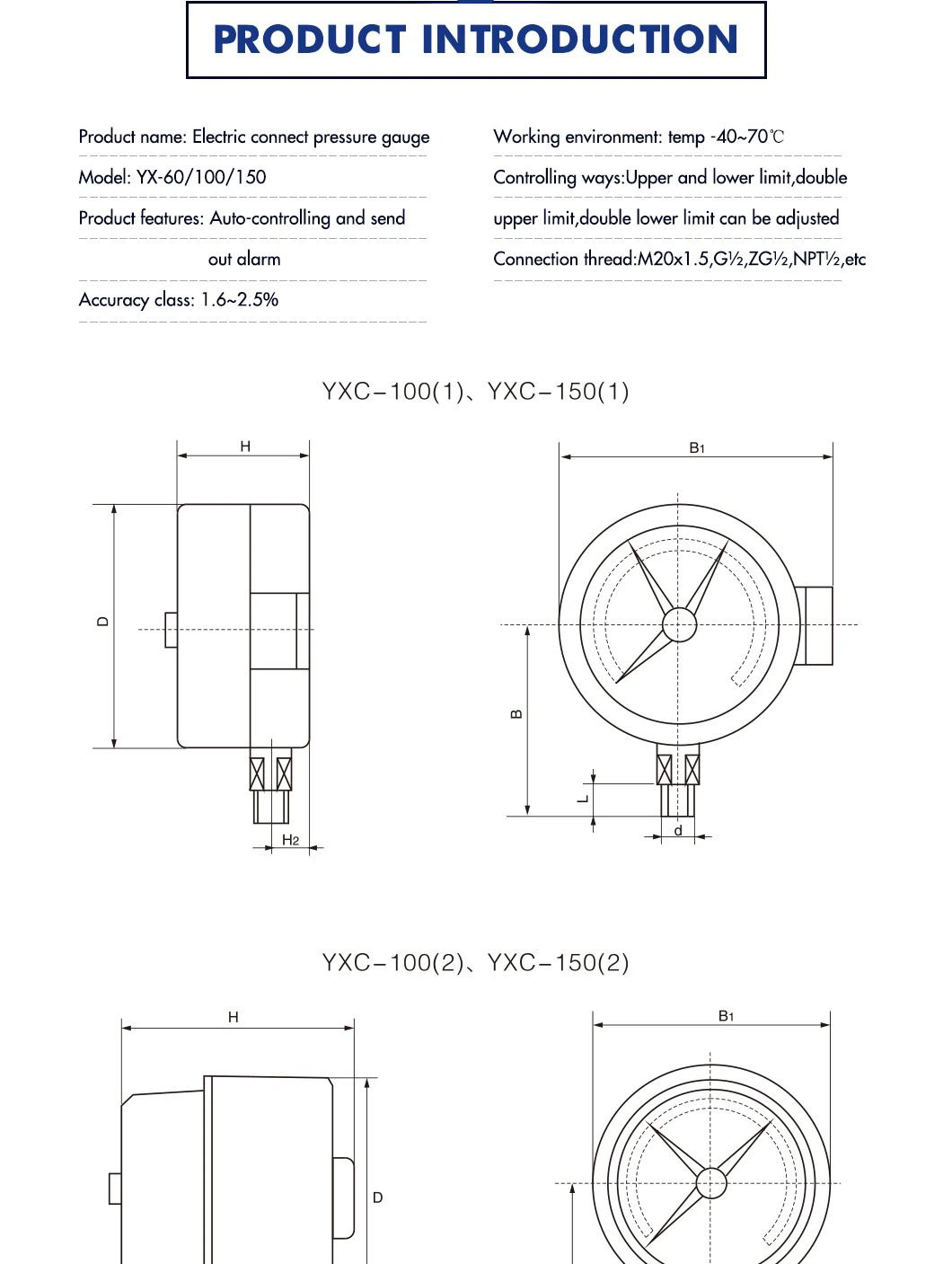

Product Description

Nominal size100mm

Accuracy class±1.6%

Display: single or compound scale, variable pressure units including kPa and MPa

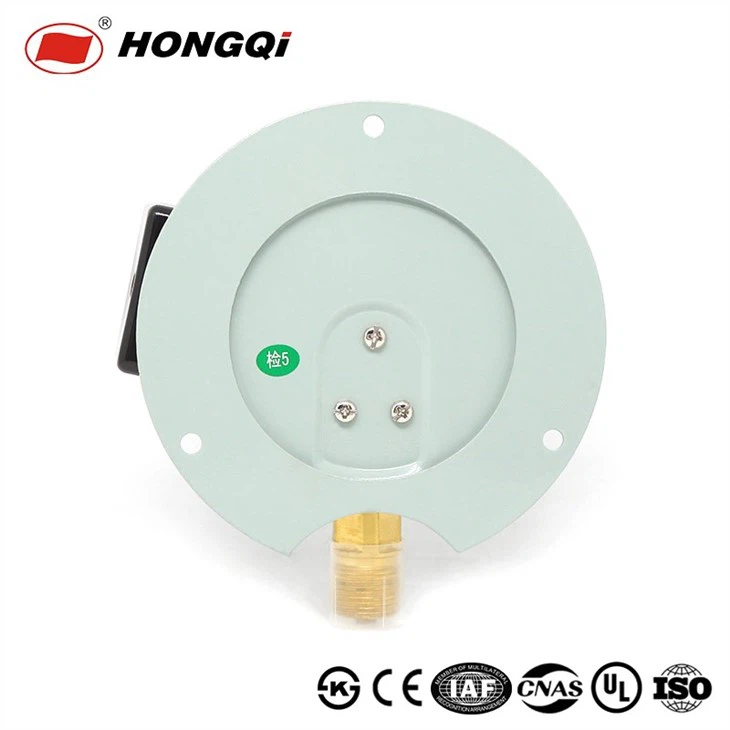

InstallationLower mount or back mount

Connectioncustomized

DialAluminum

Contact power: 30VA

Maximal votage: 220V D.C OR 380V A.C

Scale Ranges

It can function like pressure gauge (0 to 100 MPa), vacuum gauge (-0.1 to 0 MPa) and combined pressure gauge (-0.1 to 3 MPa). Prior to usage, specific range should be selected in accordance with specific pressure requirement.

Working Condition

Working temperature：-20 to 60℃

Permissible humidity：No more than 85% of relative humidity
