Name: Axial Electric Contact Pressure Gauge Dia100 Manufacturers and Suppliers China - Wholesale from Factory - Hongqi Instrument
Brand: Hongqi
SKU: 156950957

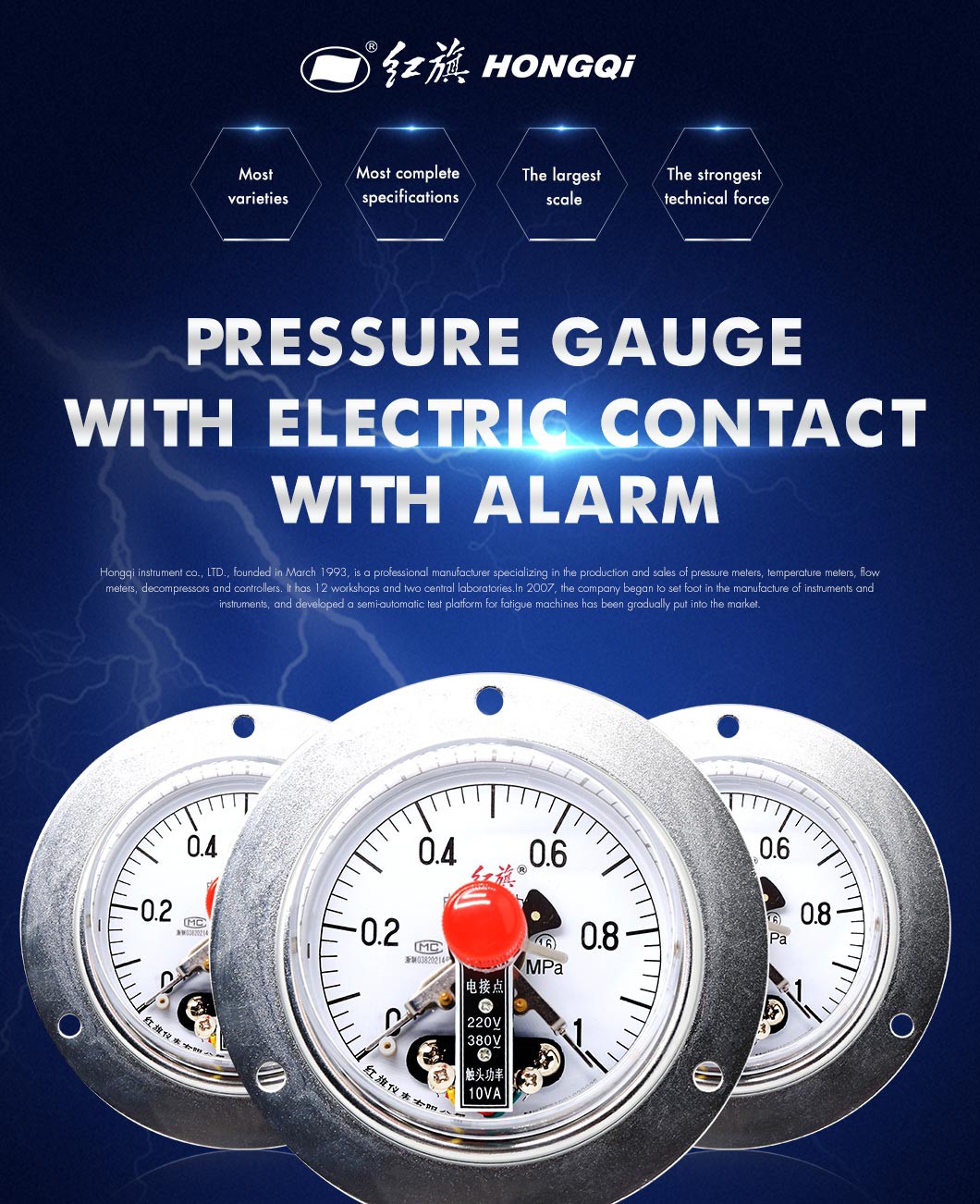

YX-100ZT pressure gauge with electric contact

Application Description

This gauge is suited for measuring the pressure of those gases or liquids which neither corrode copper alloys nor exlode,nor crystallize.If the gauge is linked with the corresponding electric equipment, it will realize double controlling to the maximal pressure measurement and minimal pressure measurement.This gauge have the function of measuring and controlling,and can set the up limit and down limit pressure value.And the measurement was reliable.This gauge is well suited for the oil industrv and chemical industry and power station and usually is link with the electric equipment.

Structure

This gauge is made up of the measuring system,indicative setting,magnetic resistance electrio contact setting,outer case, adjusting setting and junction case.When the service medium pressure acted on flexibility parts and make it move,with the help of the stick,magnified by the gear setting,and the pointer point it out on the dial.When the active contact of the contact setting touch the contact of the pointer(up limit or down limit),so that control to open o close the switch of the electrocircuit of the system.and realize the auto-controlling and sending outalarm.When install the adjustable magnetism on the electric contact signal pointer of the elecric contact setting, the magnetism will be strengthened, and firm the touch of the contacts.and eliminate electrica sparkle,so that the frequent opening or closing of the contact caused by the environmental vibration or the pulsation of the medium will be avoided.So this gauge has the character of reliable operaton, long life and the great contact switch power.

YX-100ZT_01
