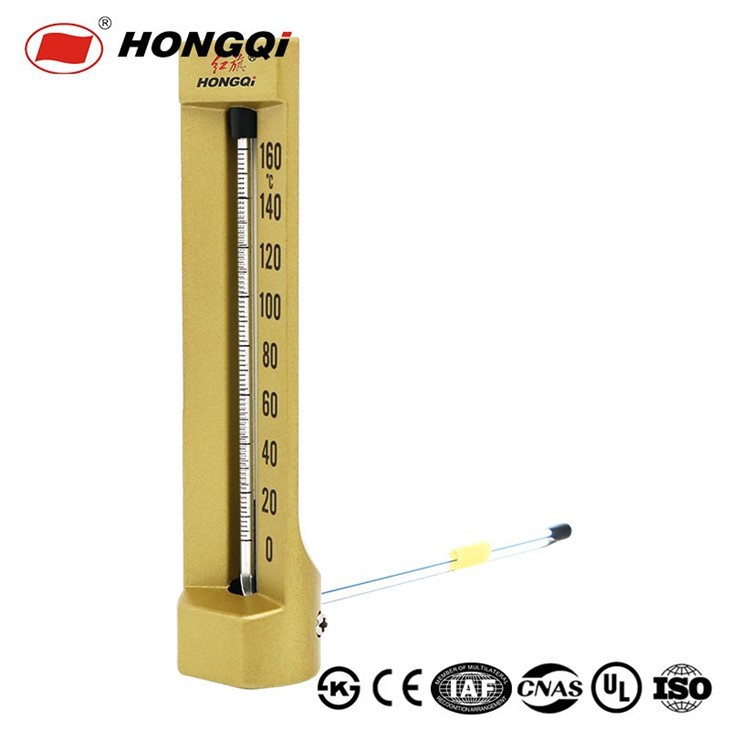

Engine Glass Thermometer For Ships

Engine Glass Thermometer for ships 1,The thermometer can be divided into three types according
to its shape: straight, right-angle (90 degrees) and 135
degrees.
2,The length of the thermometer probe (including the thread):
40mm, 60mm, 80mm, 100mm, 160mm can be customized according
to customer requirements.
3,The thermometer connection thread type is G1/2 by default,
and special threads G3/8, G3/4, M20*1.5, M22*1.5, etc. can
be customized according to customer requirements.dustrial
Golden Finish Angle Type Thermometer

Send Inquiry

Chat Now

Engine Glass Thermometer for ships

Product Description

Length	110mm x 30mm	150mm x 36mm	200mm x 36mm
Case	Alu-V-form brass-zinc-coated
Measuring	Brass
System	-60ºC ~+600ºC
Measure range	brass G1/4",G1/2" NPT;BSPT…Option:St.st.(ss 316) Thermowells
Connection thread	Bottom,back,angle90°
Connection	Glass
Fluid container	Blue filling,ab 200C quick silver
FluidStem	45mm,63mm,…at inpuiry

Specifications of marine thermometers
1,The thermometer can be divided into three types according to its shape: straight, right-angle (90 degrees) and 135 degrees.

2,The length of the thermometer probe (including the thread): 40mm, 60mm, 80mm, 100mm, 160mm can be customized according to customer requirements.

3,The thermometer connection thread type is G1/2 by default, and special threads G3/8, G3/4, M20*1.5, M22*1.5, etc. can be customized according to customer requirements.

4,Standard temperature range: -50-50ºC, -30-50ºC, 0-50ºC, 0-100ºC, 0-120ºC, 0-150ºC, 0-200ºC, 0-300ºC, 0-600 ºC, special temperature can be customized according to customer requirements.
Ordering instructions:
When ordering, customers must specify: probe length (including thread), temperature range, connecting thread.
V-type marine thermometers are widely used in ship matching, ventilation equipment, hydraulic equipment and various industrial pipelines.
It has the advantages of long service life, beautiful appearance, and strong shock resistance.
