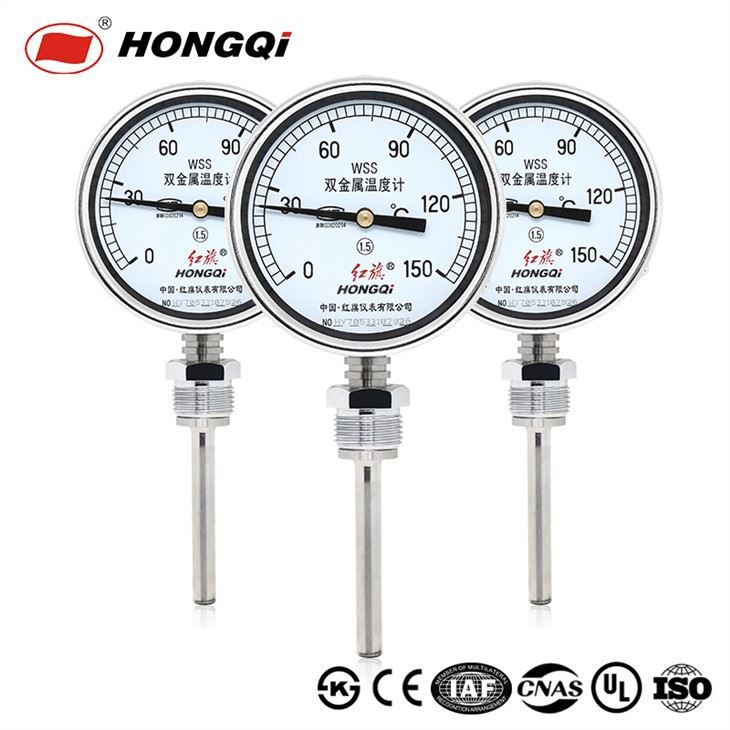

Bi-Metal Thermometer SS
Application
WSS WSSX series bi-metal thermometer is the instrument which suit for low or middle temperature measurement.
It can be used for temperature measurement for gas and liquid.
The electric contact bi-metal thermometer can measure the temperature Pand when temp exceed the certain value, it can send the controlling signal and alarm.
Send Inquiry
Chat Now
Product Introduction

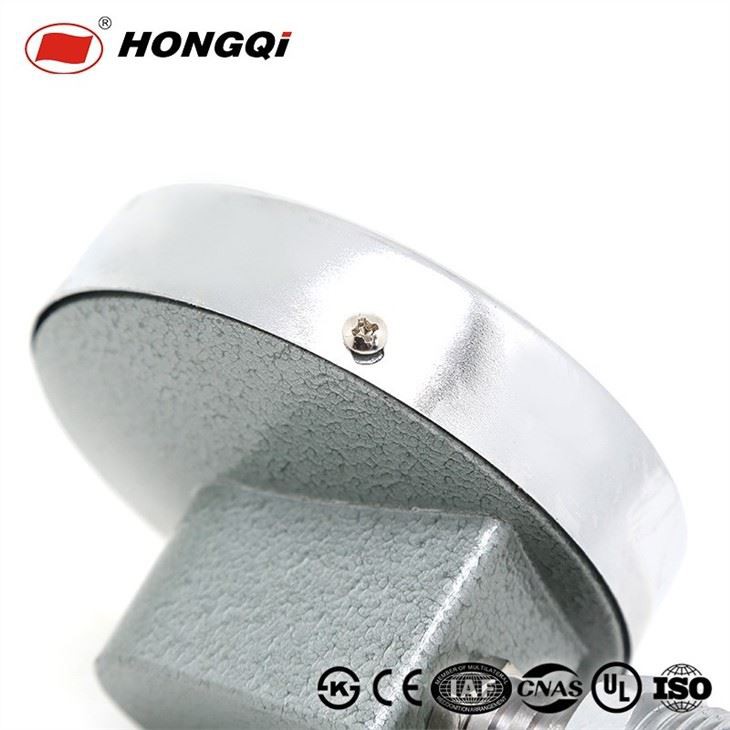

Degree bottom mounted bi-metal thermometer with all stainless steel 0-150℃.
Application
WSS WSSX series bi-metal thermometer is the instrument which suit for low or middle temperature measurement. It can be used for temperature measurement for gas and liquid. The electric contact bi-metal thermometer can measure the temperature Pand when temp exceed the certain value, it can send the controlling signal and alarm.
Specifications
| Temperature Range ºC | Model | Mounting Type | Diameter | Stem Diameter | Stem Length | Mounting Thread |
| -80~40 -40~80 0~50 0~100 0~150 0~200 0~300 0~400 0~500 0~600 | WSS-301 | Back type | Φ60 | Φ6 | Stem length between 75mm~3000mm , as customers needs. when length with 1000mm, stem diameter is Φ12, Temperature with 0-50ºC, stem length should ≥150mm | 1.M27*2 adjustable male thread 2.M27*2 adjustable female thread 3.M16*1.5 adjustable male thread 4.Inch thread or pipe thread can custom-made. |
| WSS-401 | Φ100 | Φ10 | ||||
| WSS-501 | Φ150 | |||||
| WSS-311 | Bottom type | Φ60 | ||||
| WSS-411 | Φ100 | |||||
| WSS-511 | Φ150 | |||||
| WSSX-301 | Electric contact back type | Φ60 | Φ6 | |||
| WS-71 | Φ60 | |||||
| WSSX-401 | Φ100 | Φ10 | ||||
| WSSX-501 | Φ150 | |||||
| WSSX-411 | Electric contact bottom type | Φ100 | ||||
| WSSX-511 | Φ150 |
Using and Maintenance
1.The stem length for inserting into measured medium should longer than temperature-sensing element, Ordinary the insert length should longer than 100mm, when temp is 0-50ºC, the insert length should longer than 150mm, so that can ensure the accuracy.
2.In the process of storage, using and transportation, the stem should avoid impact, Don't make the stem bending deformation and don't use the case as wrench.
3.Bi-metal thermometer is not suitable for measure the medium temp in open type container. Electric contact type is not suitable to use in the environment which have big vibration.
4.Bi-metal thermometer should routinely inspect, It is advisable to general inspection once every 6 months.
5.Electric contact bi-metal thermometer is not allow to working in the big vibrated environment, in case to effect the reliable of the product.
Welcome to call us to learn more.
URL:https://www.hongqiinstrument.com/
Tel:+86-572-6129996 ; +86-572-6129997; +86-572-6062288
Email:hongqi@cnhongqi.com
Our company supplies different kinds of products. Hongqi high-precision stainless steel bimetal thermometer with radial contacts installed directly.
