Mechanical Pressure Measurement Gauge

U-clamp pressure gauge
Model NO：40
Accuracy: 1.6 or 2.5%
Nominal size: 40mm
Measuring Range: Medium-pressure Gauge
Function：Clear scale、Strict inspection、High precision
Installation Structure：U-clamp
Application: Industrial、Calibration、Medical、Oil field etc.

Send Inquiry

Chat Now

Mechanical Pressure Measurement Gauge

PRODUCTION INFO

Name	Y Series Normal Pressure Gauge
Model	Y-40ZU, Y-50ZU, Y-60ZU
Pressure Range	-0.1~100MPa
Permissible Working Environment	-40~70℃,Relative humidity<=85%
Temperature effect	If the working temperature shifts away from 20+-5℃,error is under 0.4%/10℃.
Warranty	12month
Precision Grade	2.5%, 1.6%
Connecting Screw	M101, M141.5, M20*1.5, 1/4", 1/2", 3/8"

Case:Steel,stainless steel

Movement:brass

Bourdon tube:Phosphor bronze

Mounting pattern:U-clamp

It can be applied for gaseous or liquid media that will not corrode copper or copper alloy parts. Installation with U-clamp can be done on site.

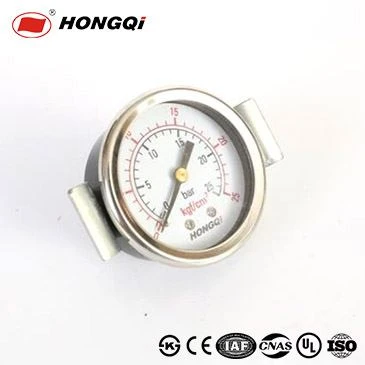

product-1-1

Welcome to call us to learn more.
