PRODUCTS

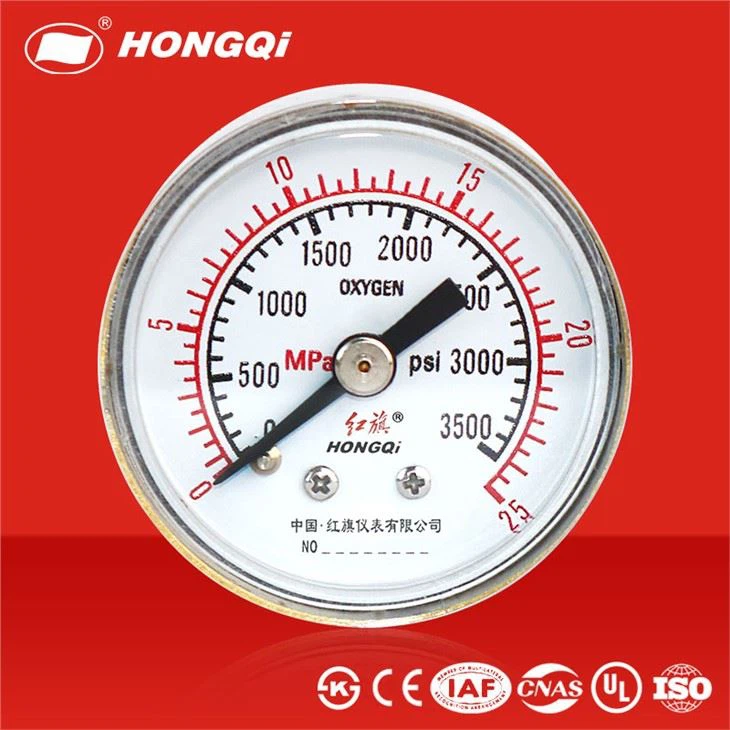

Y-40Z Conventional Pressure Gauge
Application: Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines and refrigerating plants, food and beverage, pharmaceutical industries.
For measuring water, oil, gas or any medium not corrosive to brass or phosphor bronze.
Send Inquiry
Chat Now
Product Introduction
Y-40z Conventional Pressure Gauge
SPECIFICATIONS
| Accuracy | 2.5%, 1.6%, 1.0% |
| Ambient temperature | -40°C to +65°C |
| Process temperature | Max 100°C (Dry) |
| Operating pressure | 75% of the scale value |
| Over pressure limit | 25% of full scale value |
| Case | Painted steel |
| Ring | Painted steel |
| Bourdon Tube | Phosphor Bronze |
| Socket | Brass |
| Movement | Phosphor Bronze |
| Dial | Aluminum, black & red graduation on white background |
| Pointer | Aluminum, black |
| Window | sheet glass, PC |
| Standard Scale | MPa, Kg/cm2, psi/kPa, bar...customized |
| Connection | 1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized) |
Hongqi Instrument (Changxing) Co., Ltd., established in 1993, is a modern technology enterprise specializing in the R&D, production, sales, and service of pressure and temperature instruments. Located in the "Taihu Lake Lookout County" of Zhejiang Changxing Economic Development Zone, the company currently operates two major production bases in Wenzhou and Changxing. Covering an area of 38,000 square meters with over 500 employees, its products are distributed nationwide. Domestically, it has 21 offices and hundreds of agency sales outlets, while also exporting to over a dozen countries and regions in Europe, the Middle East, and East Asia.
Since its establishment, the company has consistently adhered to a people-oriented approach, with technological innovation as the driving force for development. It now operates 17 production workshops, one mold processing center, one provincial-level enterprise technology center, and one central laboratory, boasting strong technical capabilities and robust innovation prowess. After over 20 years of growth, it has become a leading enterprise in China's instrument and meter manufacturing industry.
The company aims to "cultivate a home-like culture and become a noble corporate entity," striving to create a livable industrial park. Currently, it is the only enterprise in Changxing District with a factory garden and an employee gymnasium, embodying a garden factory that integrates work and life.
Hot Tags: y-40z conventional pressure gauge, suppliers China, manufacturers, factory, brands, wholesale, low price, cheap, made in China, Stainless Steel High-precision Pressure Gauge, Pressure Gauge 100mm, Oxygen Gas Gauge, 4 bottom mount pressure indicator, 4 Magnetic electric contact pressure gauge, Bottom connection Pressure gauge
