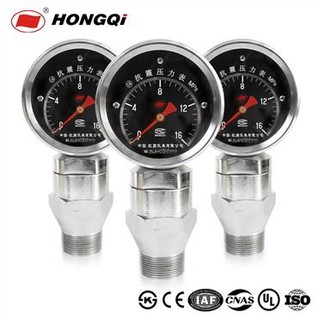

Yk Series Standpipe Pressure Gauge Manometer Mud Pressure Meter
Scale range: 16Mpa, 25Mpa, 30Mpa, 40Mpa, 60Mpa
Connection thread: R3/2, R2, NPT2, M42X2(consult in advantage for special types)
Damping liquid: silicone oil, glycerin oil
Working temperature: -25-55℃
Yk Series Standpipe Pressure Gauge Manometer Mud Pressure Meter
The standpipe pressure gauge is used in various fields, including petroleum drilling, chemical industry, mechanical industry, coal, metallurgy, power, mine geology, large pumping station and department drilling, blowout control equipment and so on. It can also measure static pressure. The mud gauge is well shake resisting. It not only can well endure the extreme pulsation of measured media but also can endure instant pressure impact and vibration aroused in the process of mounting and transportation, YK-100 pressure gauge has advantage of anti-blocking, namely the measured media don’t have to enter the gauge, so it’s ok for media to be highly viscous, granular and easy to condense, such as slurry, it is highly safe to use.
Accuracy class: 1.6%, 2.5%
Scale range: 16Mpa, 25Mpa, 30Mpa, 40Mpa, 60Mpa
Connection thread: R3/2, R2, NPT2, M42X2(consult in advantage for special types)
Damping liquid: silicone oil, glycerin oil
Working temperature: -25-55℃
