Vibration-resistant Slurry Pressure Gauge SS
video
Vibration-resistant Slurry Pressure Gauge SS

Vibration-resistant Slurry Pressure Gauge SS

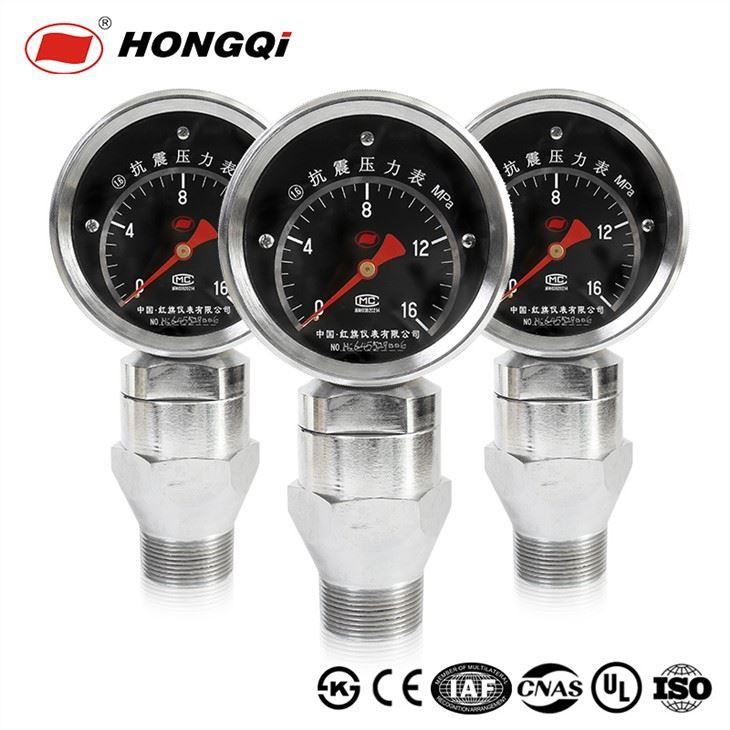

Hongqi 4" Shake Resistance Slurry Pressure Gauge with Various Connection Size. This kind of gauge is the systemic diaphragm pressure gauge, with is made up of the universal pressure gauge and the isolator. Convenient to install and dismantle on the spot, it's easier to clear , up and unpollute , in duding safe and reliable for use, and also it can meet the request of the GMP in the pharmic manufacture it's widely used in the medicine industry, which have the request to the hygiene in the technical processing.
Send Inquiry
Chat Now
Product Introduction



Hongqi 4" vibration-resistant slurry pressure gauge with stainless steel ,This gauge is used in various fields, including petroleum drilling, chemical industry, mechanical industry, coal, metallurgy, power, mine geology, large pumping station and department drilling, blowout control equipment and so on.

Basic Info.

Model NO.
YK-100
Application
Industrial, Civil
Structure
Spring Pressure Gauge
Connection Type
Radial Direction
Function
Local Indication Type
Installation Structure
Direct Mounting
Features of Measurement Medium
Corrosion Resistant
Indicating Pressure Reference
General Pressure Gauge
Case
SS304
Features
Harsh Environment
Working Temperature
-25ºC ~55ºC
Accuracy Class
1.6%, 2.5%
Scale Range
16MPa, 25MPa, 30MPa, 40MPa, 60MPa
Connection Thread
R3/2, R2, NPT2, M42 X 2(Consult in Advance for Spe
Transport Package
Special Packaging
Specification
236x51.5mm
Trademark
hongqi
Origin
China, Zhejiang
HS Code
9026209090
Production Capacity
50000pieces/Year


YK-100_01

YK-100_02

YK-100_03

YK-100_04

YK-100_05

YK-100_06


YK-100_07 (2)

YK-100_07 (3)


YK-100_07 (1)




1920-800BG -1


Welcome to call us to learn more.

URL:https://www.hongqiinstrument.com/

Tel:+86-572-6129996 ; +86-572-6129997; +86-572-6062288

Email:hongqi@cnhongqi.com

It can also measure static pressure. The gauge is well shake resisting. It not only can well endure the extreme pulsation of measured media but also can endure instant pressure impact and vibration aroused in the process of mounting and transportation. YK-100 pressure gauge has the advantage of anti-blocking, namely the measured media don' t have to enter the gauge, so it' s OK for media to be highly viscous, granular and easy to condense, such as slurry. It is highly safe to use.


FAQ:

1.The Quality Of Our Products
Our Pressure  gauge are all 100% inspected, and with standard production process.
2.Price
We can provide our high quality products with reasonable price.
3.OEM services
In the past years, we have many OEM orders from very famous company all over the world.
4.Delivery
We can provides intime delivery. Some stocked models can be instant delivered.
5.Service
We provide best after-sale service all the time, for our goal is a long trade cooperation term.
6.Reputation
Our factory have 28 years experiences.We have already gaining the best reputation and response from the customers from all over the world.

We may accept consumers order with special requirement for instrument and meter!
