Name: 115mm Blow-out Back Solid Front Pressure Gauge Manufacturers and Suppliers China - Wholesale from Factory - Hongqi Instrument
Brand: Hongqi
SKU: 154256266

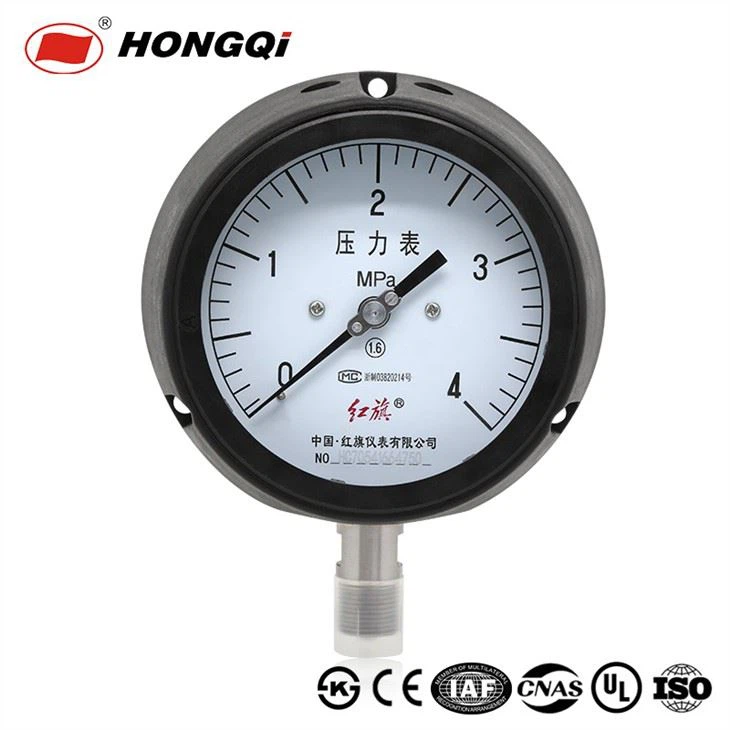

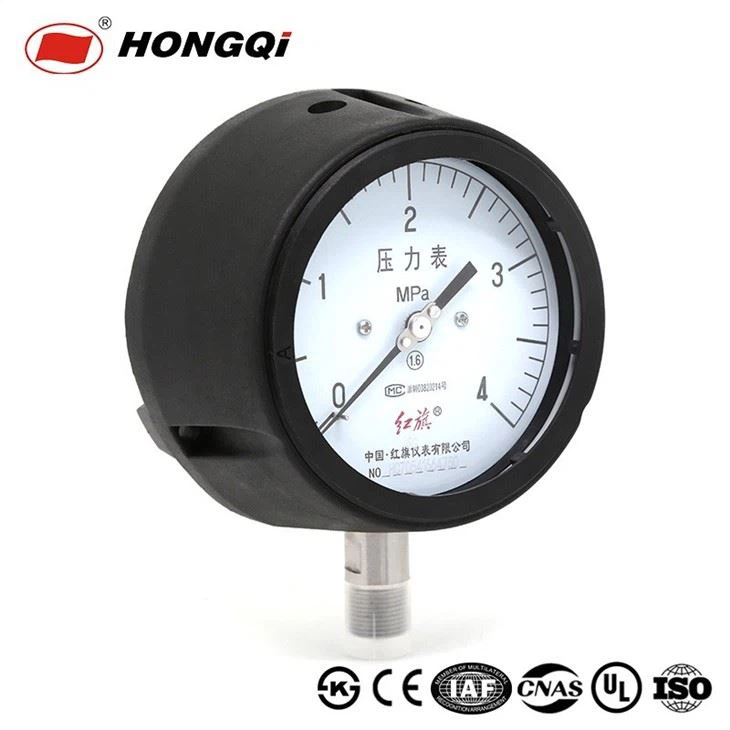

115mm Blow-out Back Solid Front Pressure Gauge

Model NO：YQS-150
Accuracy: ±1.0%
Nominal size: 115mm
Measuring Range: Low pressure Gauge
Function：Process control
Installation Structure：Direct Mounting
Display: Dial reading
variable pressure units including kPa and MPa
Application: Industrial、Calibration、Medical etc.

Send Inquiry

Chat Now

Hongqi Instrument, established in 1993, is one of the leading manufacturers and suppliers of 115mm blow-out back solid front pressure gauge in China. Providing you with low price and good service, we welcome you to wholesale the famous brands' gauge made in China at cheap price from our factory.

YQS-150

115mm Blow-out Back Solid Front Pressure Gauge

Application Description

The 41/2" Process Gauge is designed for those severe service applications where operator safety is a factor.

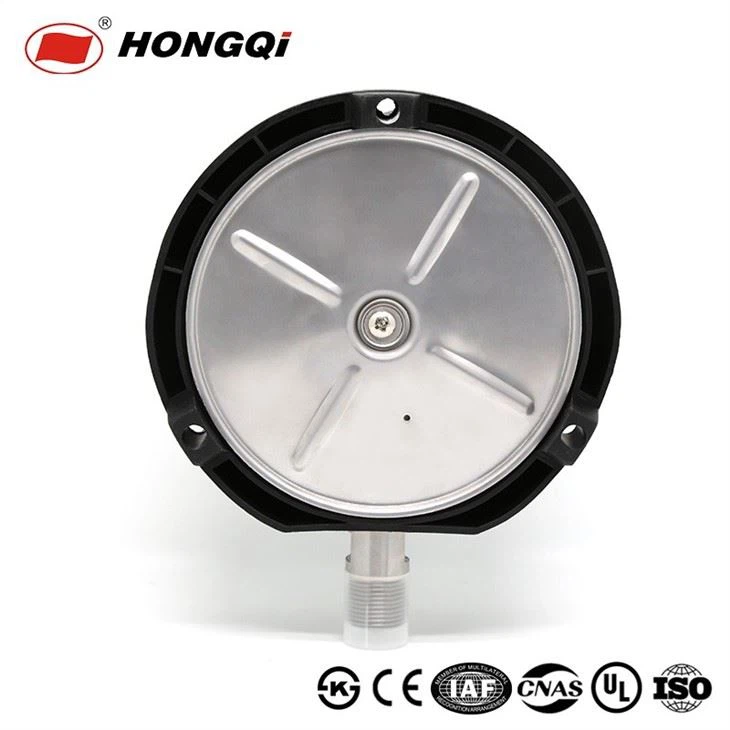

This solid front gauge is equipped with a solid wall separating the indicating dial from the bourdon tube and a blow-out back which will release from the case if the bourdon tube should rupture.

Available with phosphor bronze/brass, 316 stainless steel or monel internals,liquid-filled or dry construction, this gauge is ideally suited for the requirements of the Process, Power and Chemical Industries.

This high quality gauge offers the benefit of field filling without any additional kits or accessories.

Product Features

Reliable operation

Long life service

Great contact switch power

Product Description

MOVEMENT - Stainless Steel

Nominal size: 4 1/2"mm

Accuracy class: ±1.0%

Display: single or compound scale, Psi, bar, KPa, MPa...

Case: phenolic

Installation: Lower mount

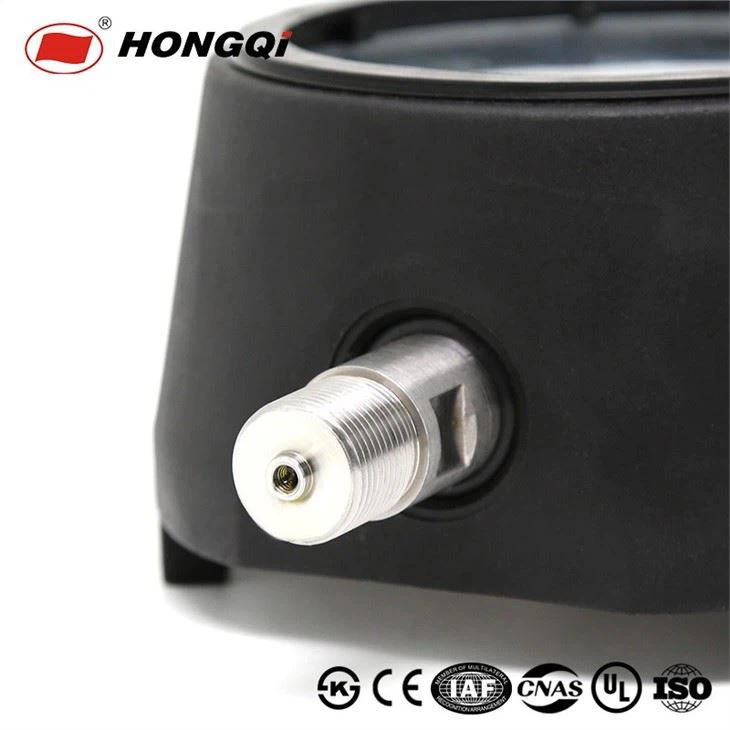

Connection: customized

Dial: Aluminum

Filled: glycerine, silicon

product-1-1 img src="/Content/uploads/2021165481/202109031421508a49e25268b3441ab83956be5a621e98.jpg" style="" title="YQS-150_06"/>

Welcome to call us to learn more.
