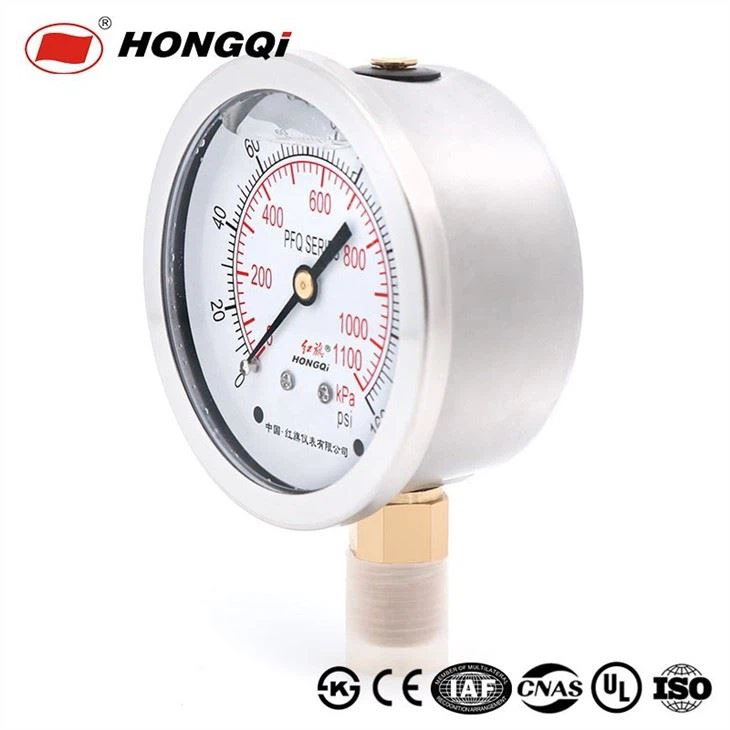

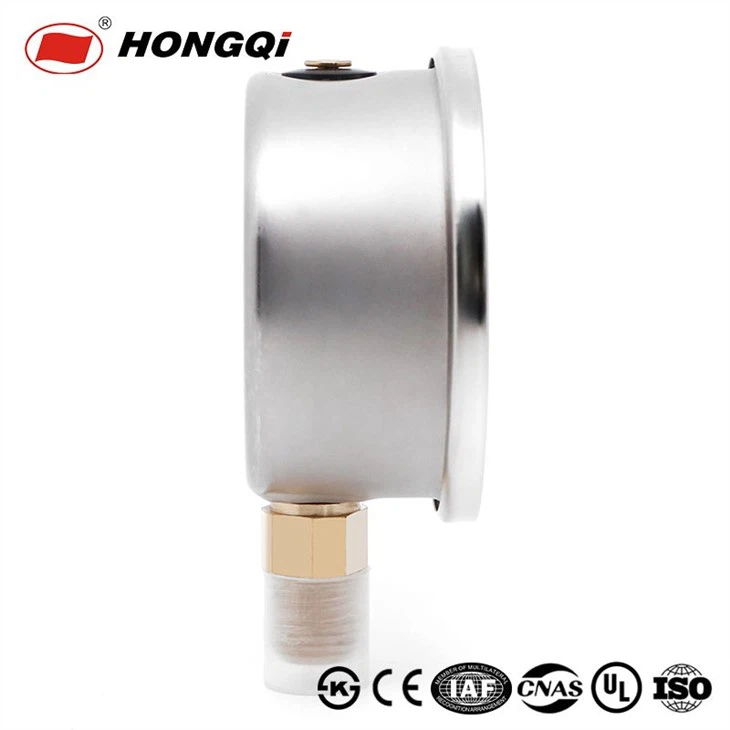

HongQi Instrument Shock Resistance Pressure Gauges

HongQi Instrument Shock resistance Pressure Gauges Brand:Hongqi Instrument Product name: Shakeproof pressure gauge Product features: Shakeproof and durable Surface size:Radial 60mm Accuracy class: 1.6% or 2.5% Case material: stainless steel case Environment condition:5ºC~55ºC(glycerin is filled in the case)
-25ºC~55ºC(silicic oil is filled in the case)

Send Inquiry

Chat Now

HongQi Instrument Shock resistance Pressure Gauges
HongQi Instrument Shock resistance Pressure Gauges
Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines and refrigerating plants, food and beverage, pharmaceutical industries. For measuring water, oil, gas or any medium not corrosive to brass or phosphor bronze.

SPECIFICATIONS

Accuracy	2.5%, 1.6%, 1.0%
Ambient temperature	-40°C to +65°C
Over pressure limit	25% of full scale value
Operating pressure	75% of the scale value
Case	AISI 304 SS
Ring	AISI 304 SS, crimped ring, bayonet ring
Bourdon Tube	Phosphor Bronze or stainless steel
Socket	Brass or stainless steel
Movement	Phosphor Bronze or stainless steel
Dial	Aluminum, black & red graduation on white background
Pointer	Aluminum, black
Window	sheet glass, PC
Fill	Glycerine, Silicone
Gaskets/Vent/Blow out Plugs	Neoprene
Standard Scale	MPa, Kg/cm2, psi/kPa, bar...customized
Connection	1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized)
