Name: Dia60mm Vibration Resistant Manometer Manufacturers and Suppliers China - Wholesale from Factory - Hongqi Instrument
Brand: Hongqi
SKU: 171193117

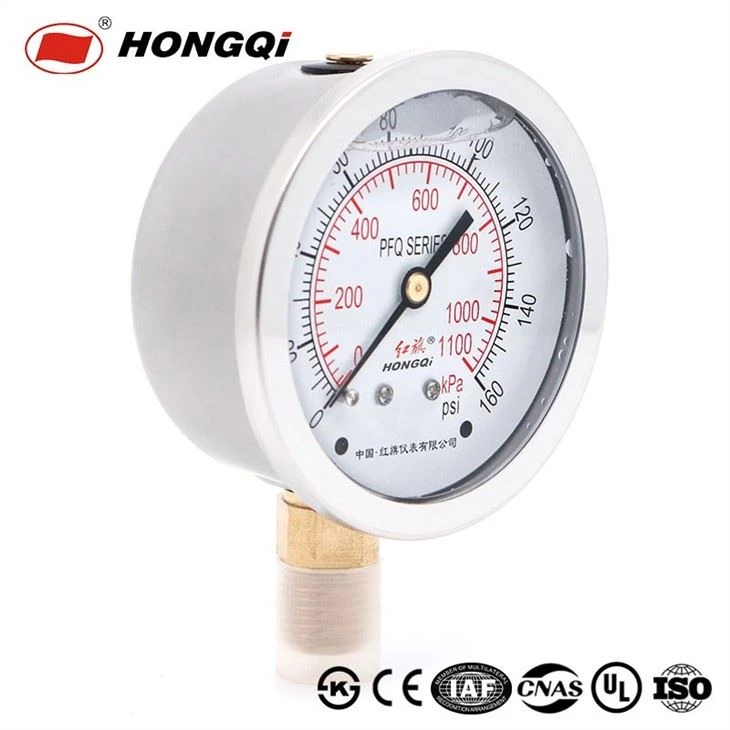

Dia60mm Vibration Resistant Manometer

Dia60mm Vibration resistant Manometer Brand:Hongqi Instrument Product name: Shakeproof pressure gauge Product features: Shakeproof and durable Surface size:Radial 60mm Accuracy class: 1.6% or 2.5% Case material: stainless steel case Environment condition:5ºC~55ºC(glycerin is filled in the case)
-25ºC~55ºC(silicic oil is filled in the case)

Send Inquiry

Chat Now

Dia60mm Vibration resistant Manometer
The oil-filled gauge typically has a metal casing or a stainless-steel case that encloses the gauge mechanism, and the interior is filled with oil. The oil provides a damping effect to reduce the effects of vibration, pulsation, and shock on the gauge's internal components.

SPECIFICATIONS

Accuracy	2.5%, 1.6%, 1.0%
Ambient temperature	-40°C to +65°C
Over pressure limit	25% of full scale value
Operating pressure	75% of the scale value
Case	AISI 304 SS
Ring	AISI 304 SS, crimped ring, bayonet ring
Bourdon Tube	Phosphor Bronze or stainless steel
Socket	Brass or stainless steel
Movement	Phosphor Bronze or stainless steel
Dial	Aluminum, black & red graduation on white background
Pointer	Aluminum, black
Window	sheet glass, PC
Fill	Glycerine, Silicone
Gaskets/Vent/Blow out Plugs	Neoprene
Standard Scale	MPa, Kg/cm2, psi/kPa, bar...customized
Connection	1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized)
