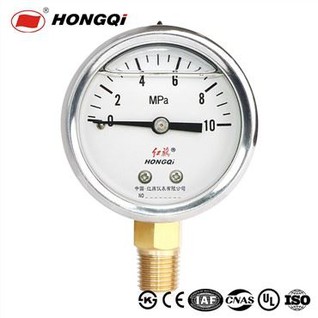

2.5" Stainless Steel Case Liquid Filled Pressure Gauge Manometer

2.5" Stainless Steel Case Liquid Filled Pressure Gauge Manometer

Accuracy: 2.5%, 1.6%, 1.0%

Ambient temperature: -40°C to +65°C

Over pressure limit: 25% of full scale value

Operating pressure: 75% of the scale value

Case: AISI 304 SS

Ring: AISI 304 SS, crimped ring, bayonet ring

Bourdon Tube: Phosphor Bronze or stainless steel

Socket: Brass or stainless steel

Movement: Phosphor Bronze or stainless steel

Dial: Aluminum, black & red graduation on white background

Pointer: Aluminum, black

Window: sheet glass, PC

Fill: Glycerine, Silicone

Gaskets/Vent/Blow out Plugs: Neoprene

Standard Scale: MPa, Kg/cm2, psi/kPa, bar...customized

Connection: 1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized)

Welcome to call us to learn more.

URL:https://www.hongqiinstrument.com/

Tel:+86-572-6129996 ; +86-572-6129997; +86-572-6062288

Email:hongqi@cnhongqi.com

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.


FAQ:

1.The Quality Of Our Products
Our Pressure  gauge are all 100% inspected, and with standard production process.
2.Price
We can provide our high quality products with reasonable price.
3.OEM services
In the past years, we have many OEM orders from very famous company all over the world.
4.Delivery
We can provides intime delivery. Some stocked models can be instant delivered.
5.Service
We provide best after-sale service all the time, for our goal is a long trade cooperation term.
6.Reputation
Our factory have 28 years experiences.We have already gaining the best reputation and response from the customers from all over the world.

We may accept consumers order with special requirement for instrument and meter!
