Hongqi High Quality Laser Welding Stainless Steel Pressure Gauge

Hongqi High Quality Laser Welding Stainless Steel  Pressure Gauge

Stainless Steel  Pressure Gauge is widely used in oil industry, chmical industry, chemical fiber industry, metallurgical industry, power station and so on. It can measure the pressure of all kinds of liquid meduim in technological process which has higher requirementof corrosion-proof and antivibration.
The gauge has good structure design and exquisite craft with character of high accuracty and sustained stability. So it has a very good market for exporting.

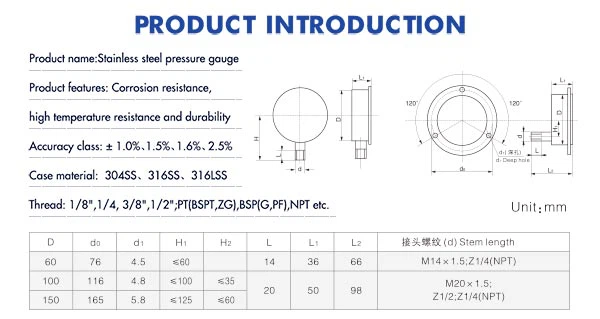

Product name: Stainless steel pressure gauge Product features Corrosion resistance, high temperature resistance and durability
Accuracy class:  ± 1.0%,1.5%,1.6%,2.5%
Thread: 1/2;1/4; 1/8; 3/8;NPT/PT/; M20*1.5; M14*1.5
Case material:  304SS,316SS,316LSS
Stem length:  60-M14 x1.5;Z1/4(NPT) ;100/150-M20 х1.5;Z1/2;Z1/4(NPT)
Ring material:  AISI 304 SS, crimped ring, bayonet ring
Bourdon Tube:  Stainless steel
Socket:  Stainless steel Socket

Hongqi Instrument Co., Ltd. was established in 1993 and is a modern technology-based enterprise specializing in the research and development, production, sales, and service of pressure and temperature instruments. Located in "the Taihu Lake Lake Wangxian County" Zhejiang Changxing Economic Development Zone, it has two major production bases, Wenzhou and Changxing. The company covers an area of 50000 square meters and has over 1000 employees. Our products cover the whole country, with 21 offices and hundreds of agents; At the same time, the products are exported to dozens of countries and regions such as Europe, America, the Middle East, and East Asia.
Since its establishment, the company has always adhered to the principle of being the foundation and technological innovation as the driving force for development. There are currently 17 production workshops, 1 mold processing center, 1 provincial-level enterprise technology center, and 1 central laboratory. Strong technical strength and strong technological innovation capability. After more than 30 years of development, it has become a leading enterprise in the national instrument manufacturing industry.

Stainless steel pressure gauge is a corrosion-resistant pressure measuring instrument made of stainless steel material, mainly used in high temperature, strong corrosion, and high vibration environments in industrial fields such as petroleum, chemical, metallurgical, and power. Its structure includes a pressure guiding system, a gear transmission mechanism, a reading device, and a sealed housing. The main body is made of icr18Ni9T, Ocr18Ni12Mo2Ti, and 316 stainless steel materials.
The measuring range of this instrument covers -0.1 to 160MPa, with accuracy levels of ± 1.0%, ± 1.6%, and ± 2.5%. It supports detection of gas, liquid, and vapor media. The core components transmit pressure through elastic deformation, and shock resistant products use a shell filled with silicone oil or glycerin to cushion vibration, with protection levels ranging from IP54 to IP66. We provide various threaded interfaces such as M14 × 1.5 and G1/4, with a suitable temperature range of -40 ℃ to 70 ℃ (without liquid filling inside the shell) or -25 ℃ to 70 ℃ (with liquid filling inside the shell). During installation, the position of the pressure measuring point should be adjusted according to the phase state of the medium, and regular calibration and maintenance should be carried out to ensure measurement accuracy.
