Diaphragm Gas Manometer

Diaphragm gas manometer is a tool used to measure the pressure of gases. It consists of a flexible diaphragm, which moves according to the changes in gas pressure. This movement is then transferred to a gauge, which shows the pressure reading. Diaphragm gas manometers are widely used in various industries, including gas supply, HVAC, and chemical manufacturing.

One of the advantages of using a diaphragm gas manometer is its accuracy. The diaphragm is very sensitive and can detect even small fluctuations in gas pressure. This makes it a reliable tool for ensuring that gas systems are operating at optimal levels.

Another benefit of diaphragm gas manometers is their durability. They are made of high-quality materials that can withstand harsh conditions, such as extreme temperatures and pressure. This means that they can be used in demanding environments without the risk of damage or malfunction.

Diaphragm gas manometers are also easy to use. They do not require any special training or skills, and the pressure reading is displayed on the gauge, making it easy for users to interpret the results.

In summary, diaphragm gas manometers are essential tools for measuring the pressure of gases. They are accurate, durable, and easy to use, making them ideal for a wide range of industries. With their help, operators can ensure that gas systems are functioning optimally, leading to increased efficiency, safety, and productivity.

We accept consumer order with special requirement for instrument.

TYPE	PRESSURE RANGE	CASE AND RING	SIZE	FLANGE SIZE	DIAFHRAGM MATERIAL
YTP-63MC /YTP-100MC	0.6~2.5 MPa	steel or stainless steel	63/100/150mm	1/2 inch	316 L

Application Description

This kind of gauge is the systemic diaphragm pressure gauge, with is made up of the universal pressure gauge and the isolator. Convenient to install and dismantle on the spot, it's easier to clear up and unpollute. in duding safe and reliable for use, and also it can meet the request of the GMP in the pharmic manufacture it's widely used in the medicine industry, which have the request to the hygiene in the technical processing

Attention:

1, consumer can select other type universal pressuere gauge,please consult with us when order it

2. The connection type of the pressure gauge and the diaphragm setting also can be selected. Please consult with us when order it

The corrosive-proof characteristic of diaphragm pressure gauge

It is quaranteed by diaphragm and flange which are suitable chosen and measured in the part of the touching area, and by the material of the gasket

Diaphragm material: 316, 316L

Flange material: 316, 316L

Gasket material: silicon rubber, PVC

Sealed liquid:

Just for safty and reliability, we can choose suitable sealed liquid according to different using ways.

YTP_01

YTP_02

Scale range and model description

Model		Type		The up limit(MPa)
With glycerin filled pnessure gauge	Match with St.st pressure gauge	Type		The up limit(MPa)
YTN-60/MC	Y-60B/Z/MC	MC	Clip hoop type	0.6~2.5(flange1 1/2")
YTN-100/MC	Y-100B/Z/MC	MC	Clip hoop type	0.4~2.5(flange 2")

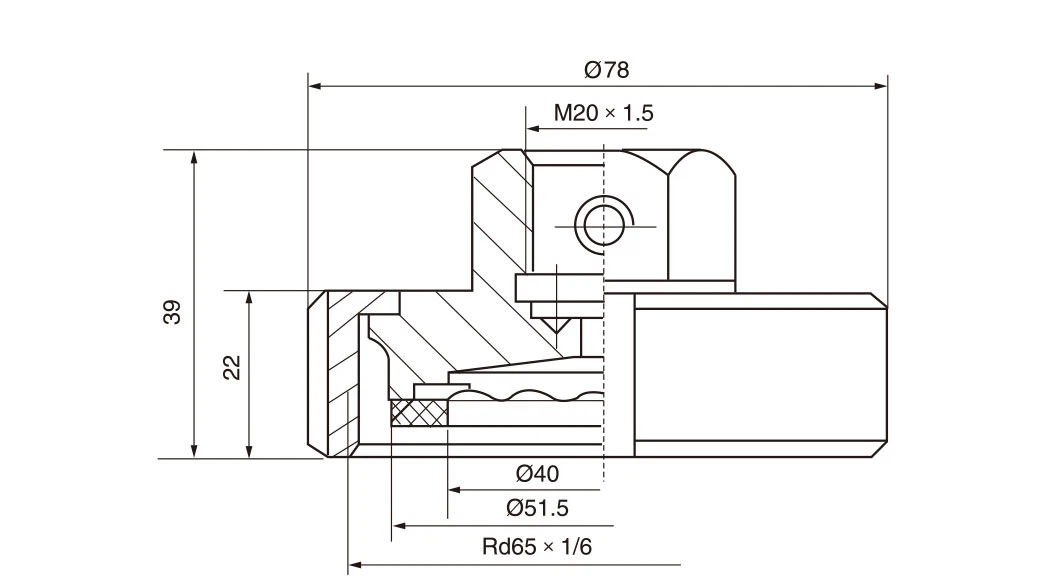

YTN-100/MN	Y-100B/Z/MN	MN	Nut type	0.4~2.5
YTN-100/MH	Y-100B/Z/MH	MH	Retangular flange type	10~60
