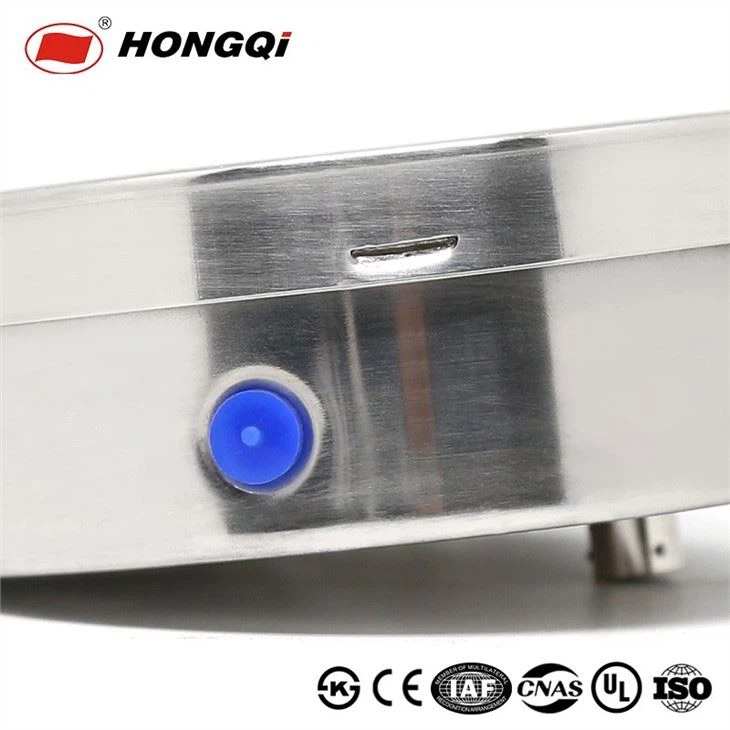

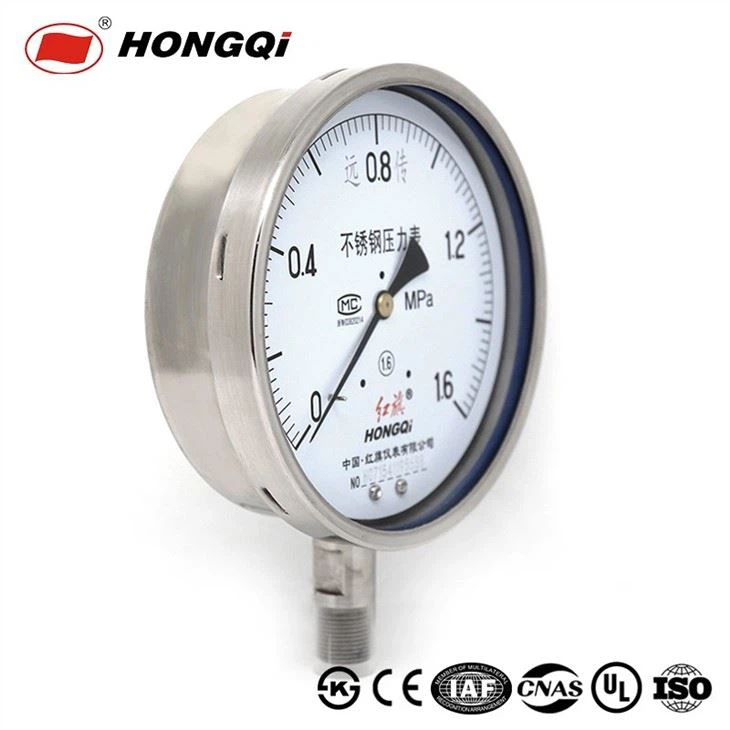

Full Stainless Steel Resistance Remote Transmission Pressure Gauge

Full Stainless Steel Resistance Remote Transmission Pressure Gauge

Name: Full Stainless Steel Resistance Remote Transmission Pressure Gauge Manufacturers and Suppliers China - Wholesale from Factory - Hongqi Instrument
Brand: Hongqi
SKU: 173623807

Accuracy class: 1.6
Case material: stainless steel
Categories: liquid filled or no liquid filled
The beginning of the electric resistance of the transmitter: 3-20Ω
The full scale of the electric resistance of the transmitter: 340-400Ω
The conditional voltage between connector 1 and connector 2 of the transmitter is no more than 6V Slip electric resistance transmitter chart
Environmental condition: -40-60ºC, relative humidity is no more than 85%. and the working vibration and sharp pulsation of the medium must have no influence to reliable operation
Temperature effect: when the environment temperature deviate from 20±5ºC, the additional error is no more than 0.4%/10ºC

Send Inquiry

Chat Now

Product Introduction

Full Stainless Steel Resistance Remote Transmission Pressure Gauge

Accuracy class: 1.6
Case material: stainless steel
The full scale of the electric resistance of the transmitter: 340-400Ω
The conditional voltage between connector 1 and connector 2 of the transmitter is no more than 6V
Environmental condition: -40-60ºC, relative humidity is no more than 85%. and the working vibration and sharp pulsation of the medium must have no influence to reliable operation
Temperature effect: when the environment temperature deviate from 20±5ºC, the additional error is no more than 0.4%/10º
