Afriso burdon tube gas pressure gauge
Accuracy: ±1.6%
Nominal size: 100mm
Measuring Range: Medium-pressure Gauge
Function：Local Indication Type
Installation Structure：Direct Mounting
Display: dial reading
variable pressure units including kPa and MPa
Application: Industrial、Calibration、Medical etc.
Send Inquiry
Chat Now
Product Introduction

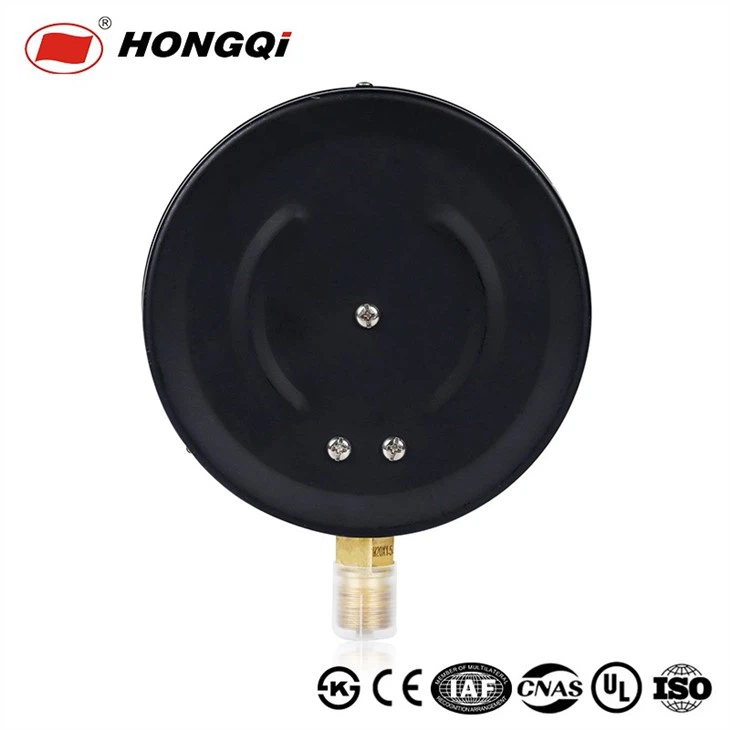

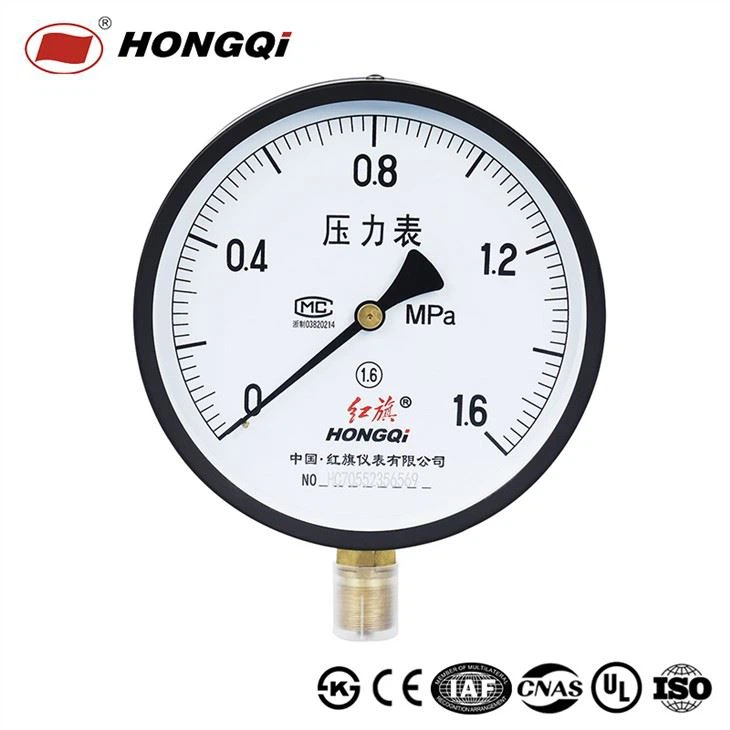

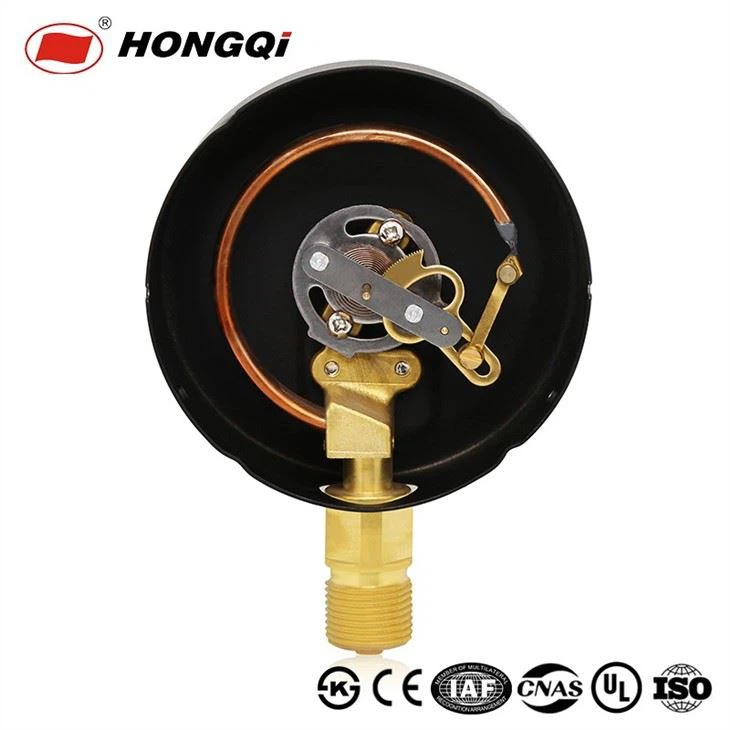

Afriso burdon tube black painted steel gas pressure gauge made in China.
Application Description
It is applied for those gaseous or vaporous media which don’t explode, crystallize and freeze, and corrode stainless steel.
Product Description
Nominal size100mm
Accuracy class±1.6%
Displaydial reading with 11variable pressure units including MPa, kPa, Kg/cm2, bar, PS
InstallationLower mount, back mount
ConnectionM20*1.5 or other required thread
DialAluminum
Scale Ranges
It can function like pressure gauge (0 to 100 MPa), vacuum gauge (-0.1 to 0 MPa) and combined pressure gauge (-0.1 to 3 MPa). Prior to usage, specific range should be selected in accordance with specific pressure requirement.
Working Condition
Working temperature：-40 to 70℃
Permissible humidity：No more than 85% of relative humidity
Hongqi Instrument, established in 1993, is one of the leading manufacturers and supplies 100mm General Pressure Gauge, 1.5 inch~6 inch Dial, NPT, Bsp, BSPT Connection, mainfold Manometer
|
