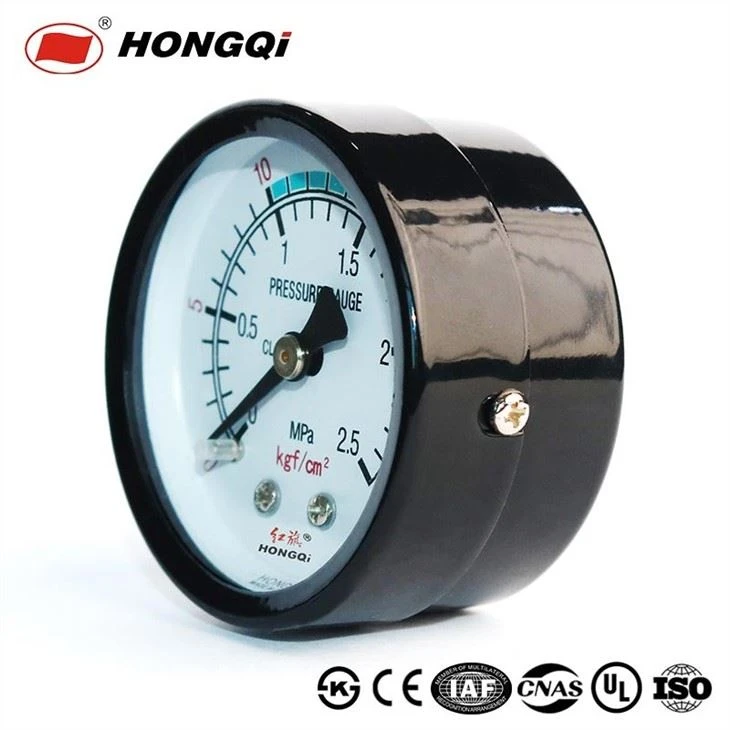

Painted Steel Case Manometer

Painted Steel Case Manometer

Case: painted steel Ring: painted steel Bourdon Tube: Phosphor Bronze Socket: Brass Movement: Phosphor Bronze Dial: Aluminum, black & red graduation on white background Pointer: Aluminum, black Application: Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines and refrigerating plants, food and beverage, pharmaceutical industries. For measuring water, oil, gas or any medium not corrosive to brass or phosphor bronze
Send Inquiry
Chat Now
Product Introduction



Painted Steel Case Manometer Pressure Gauge
SPECIFICATIONS

Accuracy 2.5%, 1.6%, 1.0%
Ambient temperature -40°C to +65°C
Process temperature Max 100°C (Dry)
Operating pressure 75% of the scale value
Over pressure limit 25% of full scale value
Case Painted steel
Ring Painted steel
Bourdon Tube Phosphor Bronze
Socket Brass
Movement Phosphor Bronze
Dial Aluminum, black & red graduation on white background
Pointer Aluminum, black
Window sheet glass, PC
Standard Scale MPa, Kg/cm2, psi/kPa, bar...customized
Connection 1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized)

Hongqi Instrument Co., Ltd  is a professional manufacturer of all kinds of high quality gauges instruments.Our main product lines include dry gauge, liquid filled pressure gauge, special pressure gauge, capsule gauge, stainless steel liquid filled pressure gauge, thermometer, accessories..
