Engine-room Pressure Gauge
Product features: Accurate and durable
Accuracy class: 1.6% or 2.5%
Case material: Painted steel
Can be customized
Send Inquiry
Chat Now
Product Introduction

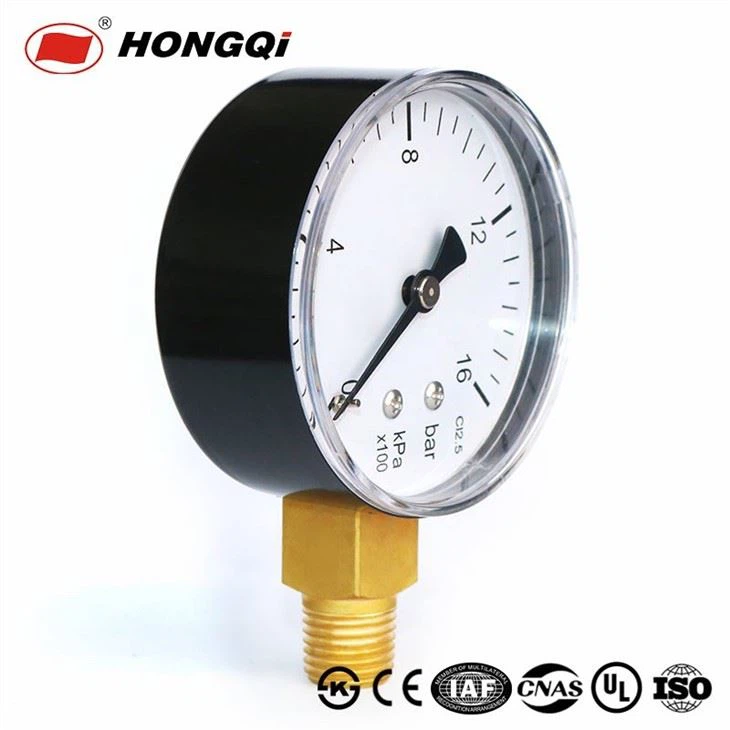

Engine-room pressure gauge
As engineers and sailors, we know that the engine is the heart and soul of any vessel. It's the powerhouse that makes the ship move through the water, and as such, we need to keep a close eye on its performance. That's why the engine-room pressure gauge is so important.
The pressure gauge is a critical instrument that lets us monitor the pressure in the engine's cylinders. By keeping an eye on this gauge, we can detect any abnormalities in the engine's performance and take corrective action before any serious damage occurs.
A well-maintained pressure gauge gives us peace of mind, knowing that our vessel is running at optimal performance. It's a reassuring feeling to see the needle on the gauge stay steady, indicating that the engine is running smoothly. This gives us the confidence to operate the vessel with precision and accuracy.
At the end of the day, our goal is to keep our vessel safe, efficient, and effective. The engine-room pressure gauge is a valuable tool that helps us achieve these goals. With regular maintenance and calibration, we can rely on our pressure gauge to give us accurate readings and keep our engine running smoothly.
Can measure water, liquid, steam plastic case explosion-proof design general pressure gauge
| Product name | General pressure gauge |
| Product features | Accurate and durable |
| Accuracy class | 1.6% or 2.5% |
| Case material | Painted steel |
| Operating pressure | 75% of the scale value |
| Over pressure limit | 25% of full scale value |
| Bourdon Tube | Phosphor Bronze |
| Socket | Brass |
| Movement | Phosphor Bronze |
| Dial | Aluminum, black & red graduation on white background |
| Pointer | Aluminum, black |
| Window | sheet glass, PC |
| Standard Scale | MPa, Kg/cm2, psi/kPa, bar...customized |
| Connection | 1/8”, 1/4”, 1/2” NPT, BSP, G, M20*1.5(customized) |
Can be customized
Application: Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines and refrigerating plants, food and beverage, pharmaceutical industries. For measuring water, oil, gas or any medium not corrosive to brass or phosphor bronze.
General pressure gauge can be applied for gasesous or liquid media that will not explode, crystallise or freeze, and corrode copper or copper alloy.
