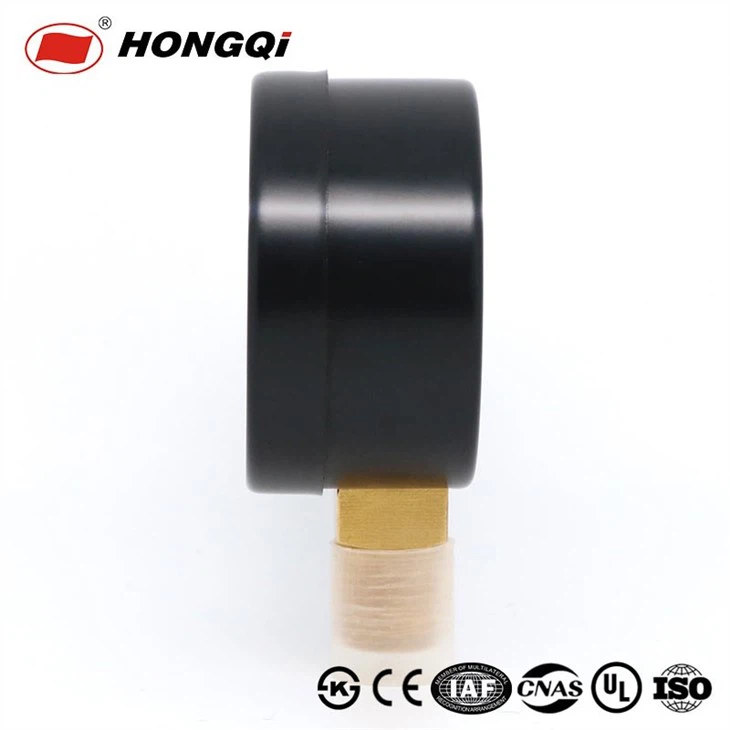

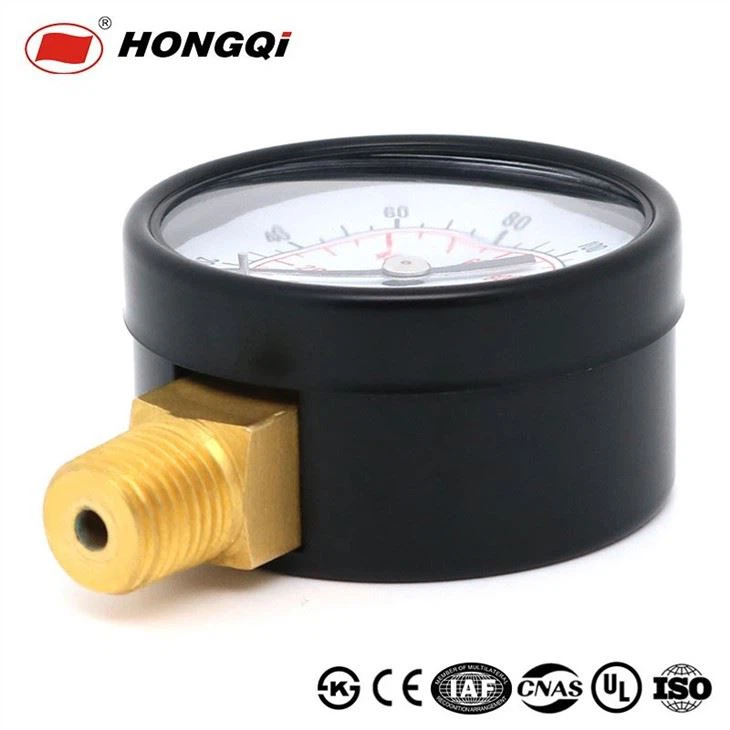

Diameter 40mm Gas Pressure Gauge
Diameter 40mm Gas Pressure Gauge
The pressure gauge can be applied for those gaseous, liquid or vaporous media which don' t explode, crystallize and freeze, and corrode stainless copper or copper alloy. It adopts helical case, standardized copper connector, broadened bourdon tube, stainless steel movement and strengthened link. In order to ensure accuracy class, advanced equipment and technique are used in the process of calibration and testing. It is characterized by good appearance, high precision, small distance after tapping, good repetition and long service life.
SPECIFICATIONS
| Accuracy | 2.5%, 1.6%, 1.0% |
| Ambient temperature | -40°C to +65°C |
| Process temperature | Max 100°C (Dry) |
| Operating pressure | 75% of the scale value |
| Over pressure limit | 25% of full scale value |
| Case | Painted steel Or Plastic Case |
| Ring | painted steel |
| Bourdon Tube | Phosphor Bronze |
| Socket | Brass |
| Movement | Phosphor Bronze |
| Dial | Aluminum, black & red graduation on white background |
| Pointer | Aluminum, black |
| Window | sheet glass, PC |
| Standard Scale | MPa, Kg/cm2, psi/kPa, bar...customized |
| Connection | 1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized) |
Features:
1. 1/4 BSPT back connection.
2. Brass components has good corrosion resistance and durability.
3. The transparent cover offers clear readings and better protection of the dial.
4. Good air tightness guarantee the accurate measurement.
5. Suitable for air, water, oil, gas, and other non-corrosive media.
Specification:
Mounting Thread: 1/4 BSPT
Range: 0-15PSI,0-1Bar / 0-30PSI,0-2Bar / 0-60PSI,0-4Bar / 0-100PSI,0-7Bar / 0-160PSI,0-11Bar / 0-300PSI,0-20Bar (Optional) 0-6Mpa
Product Size: diameter 40mm
Our enterprise may accept consumers order with special requirement for instrument & meter.
Welcome to call us to learn more.
URL:https://www.hongqiinstrument.com/
Tel:+86-572-6129996 ; +86-572-6129997; +86-572-6062288
Email:hongqi@cnhongqi.com
Hot Tags: diameter 40mm gas pressure gauge, suppliers China, manufacturers, factory, brands, wholesale, low price, cheap, made in China, Flanged Pressure Gauge, Digital Pressure Gauge, air conditioning pressure gauge, 40mm Pressure Gauge, 2 5 dry pressure gauge, 100mm Flanged Manometer
-
![Pressure Gauge For Full Range Pressure With Housing]()
Pressure Gauge For Full Range Pressure With Housingview more> -

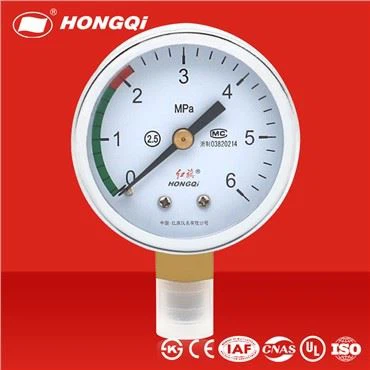

![Manufacturing Various Pressure Gauges]()
