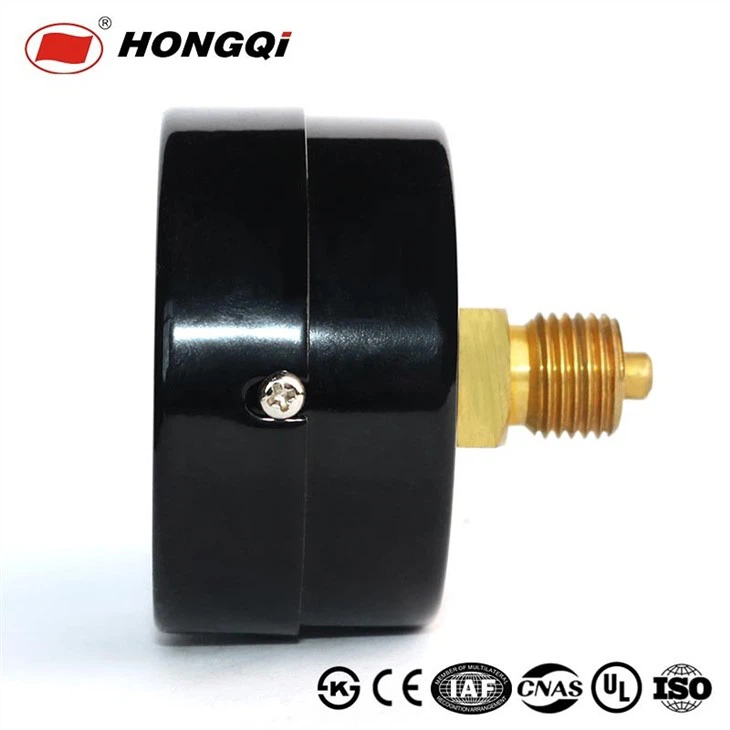

Central Mount Pressure Gauge With Brass Internals
50mm axial installation Pneumatic Component Pressure Gauge
HongQi instrument Y-Zseries Pressure Gauges: Bottom or Center Back Mount Application: Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines and refrigerating plants, food and beverage, pharmaceutical industries. For measuring water, oil, gas or any medium not corrosive to brass or phosphor bronze. SPECIFICATIONS
| Accuracy | 2.5%, 1.6%, 1.0% |
| Ambient temperature | -40°C to +65°C |
| Process temperature | Max 100°C (Dry) |
| Operating pressure | 75% of the scale value |
| Over pressure limit | 25% of full scale value |
| Case | Painted steel |
| Ring | Painted steel |
| Bourdon Tube | Phosphor Bronze |
| Socket | Brass |
| Movement | Phosphor Bronze |
| Dial | Aluminum, black & red graduation on white background |
| Pointer | Aluminum, black |
| Window | sheet glass, PC |
| Standard Scale | MPa, Kg/cm2, psi/kPa, bar...customized |
| Connection | 1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized) |
