Air Compressor Pressure Measurement Gauge

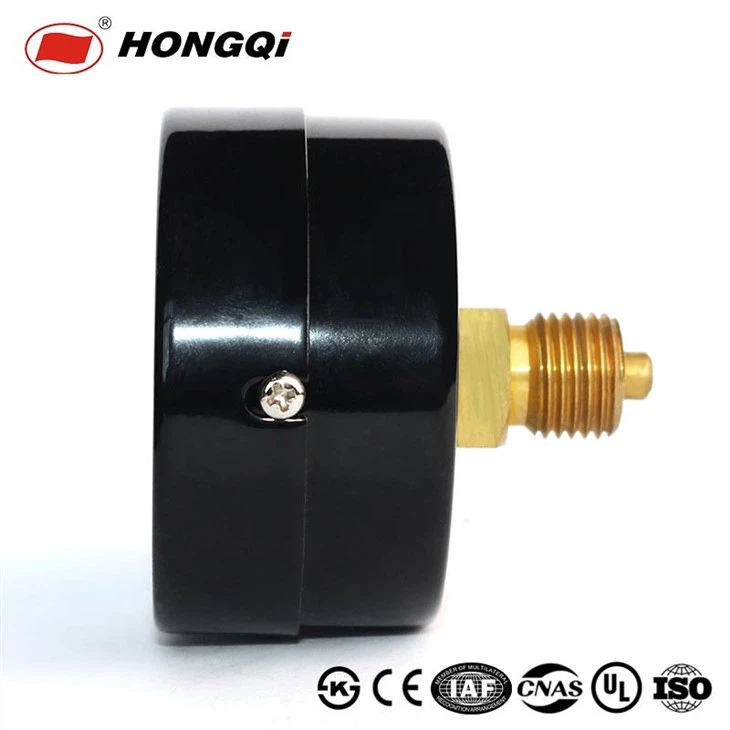

Air Compressor Pressure Measurement Gauge

Case: painted steel Ring: painted steel Bourdon Tube: Phosphor Bronze Socket: Brass Movement: Phosphor Bronze Dial: Aluminum, black & red graduation on white background Pointer: Aluminum, black Application: Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines and refrigerating plants, food and beverage, pharmaceutical industries. For measuring water, oil, gas or any medium not corrosive to brass or phosphor bronze
Send Inquiry
Chat Now
Product Introduction



Air Compressor Pressure Measurement Gauge

Air compressors are a vital tool for a variety of applications, from inflating tires to powering pneumatic tools. To ensure that an air compressor is operating safely and efficiently, it is important to monitor the pressure using a pressure gauge.



A pressure gauge is a device that measures the pressure of a gas or liquid and displays the result on a dial or digital display. In the case of an air compressor, a pressure gauge is typically installed on the tank or line to measure the pressure of the compressed air.



Accurate pressure measurement is critical for safe and efficient operation of an air compressor. If the pressure is too low, the compressor may not be able to power tools or equipment properly, while excessive pressure can cause damage to equipment or even lead to explosions.



SPECIFICATIONS

Accuracy 2.5%, 1.6%, 1.0%
Ambient temperature -40°C to +65°C
Process temperature Max 100°C (Dry)
Operating pressure 75% of the scale value
Over pressure limit 25% of full scale value
Case Painted steel
Ring Painted steel
Bourdon Tube Phosphor Bronze
Socket Brass
Movement Phosphor Bronze
Dial Aluminum, black & red graduation on white background
Pointer Aluminum, black
Window sheet glass, PC
Standard Scale MPa, Kg/cm2, psi/kPa, bar...customized
Connection 1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized)
