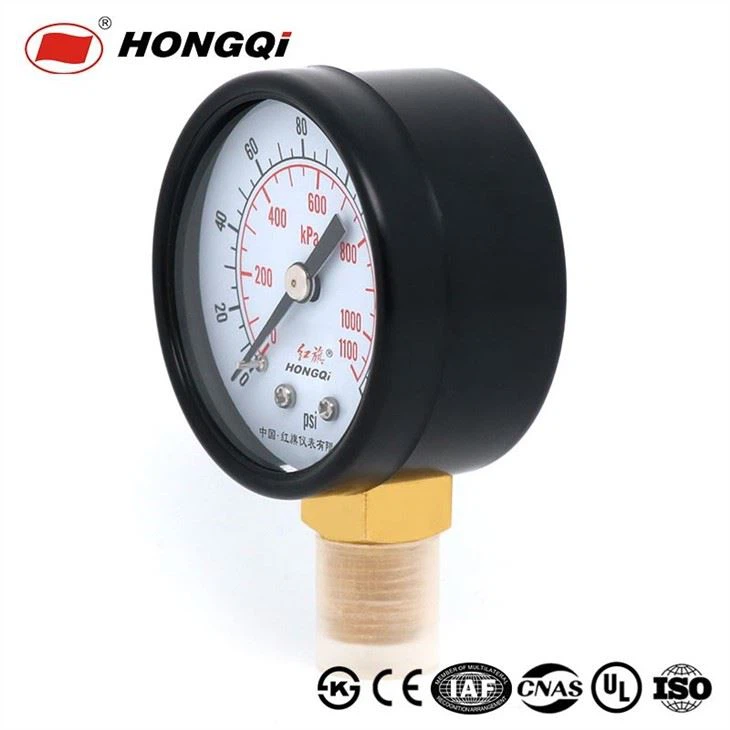

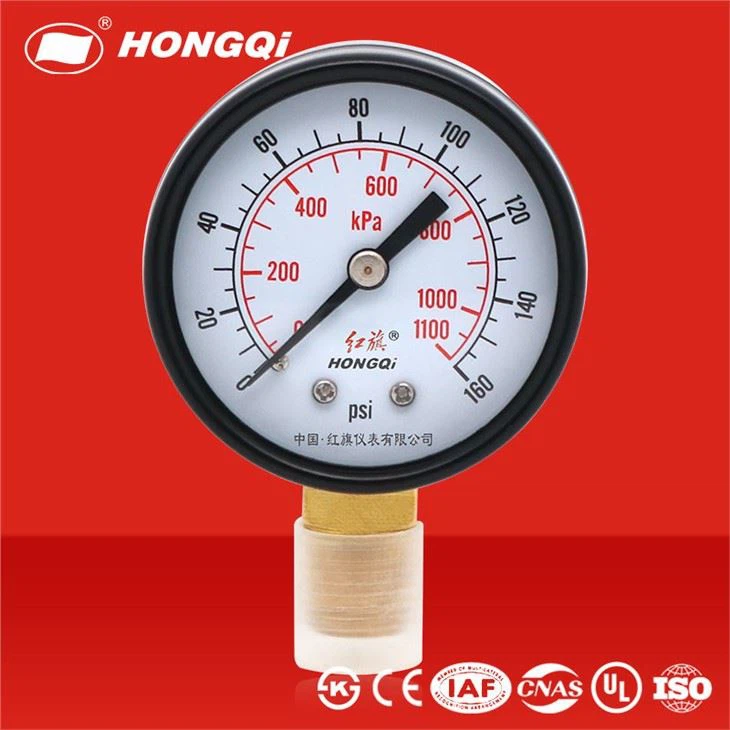

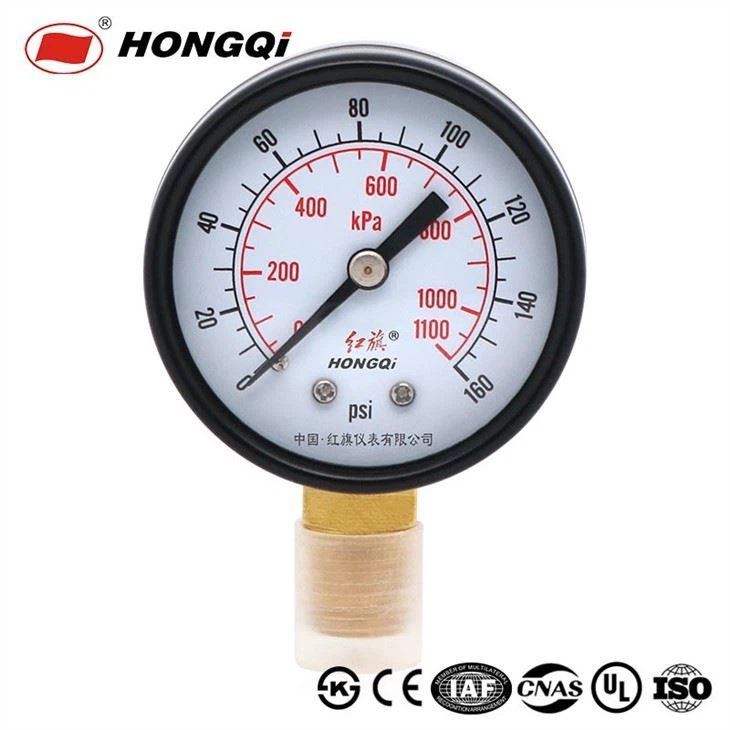

1.6inch Oil Filled Pressure Gauge

Name: 1.6inch Oil Filled Pressure Gauge Manufacturers and Suppliers China - Wholesale from Factory - Hongqi Instrument
Brand: Hongqi
SKU: 170737930

(CHINA HONGQI INSTRUMENT)

The pressure gauge can be applied for those gaseous, liquid or vaporous media which don' t explode, crystallize and freeze, and corrode stainless copper or copper alloy. It adopts helical case, standardized copper connector, broadened bourdon tube, stainless steel movement and strengthened link. In order to ensure accuracy class, advanced equipment and technique are used in the process of calibration and testing. It is characterized by good appearance, high precision, small distance after tapping, good repetition and long service life. Hongqi Instrument (Changxing) Co., Itd has put into operation. Thanks to efforts of 15 offices and more than 100 agents, our products are popular across the country, and are exported to over 10 Mid-East and Euro-American countries and regions. In 2000, we were recognized as enterprise name without administrative divisions by state administration for industry and commerce, and can do import and export business.

SPECIFICATIONS

Accuracy	2.5%, 1.6%, 1.0%
Ambient temperature	-40°C to +65°C
Process temperature	Max 100°C (Dry)
Operating pressure	75% of the scale value
Over pressure limit	25% of full scale value
Case	Painted steel Or Plastic Case
Ring	painted steel
Bourdon Tube	Phosphor Bronze
Socket	Brass
Movement	Phosphor Bronze
Dial	Aluminum, black & red graduation on white background
Pointer	Aluminum, black
Window	sheet glass, PC
Standard Scale	MPa, Kg/cm2, psi/kPa, bar...customized
Connection	1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized)
