Dia 100mm Bourdon Tube Pressure Gauge

Bourdon Gauge is a tool for measuring the pressure of a liquid or gas, invented by French engineer Eugene Bourdon in 1849. Bourdon Gauge is commonly used in the automotive, industrial, medical and aerospace sectors.

This instrument uses curved metal tubes to sense pressure changes and transmit these changes to the pointer to visually display the pressure value. It is very easy to operate and install, and is widely suitable for different types of liquids and gases. By using Bourdon Gauge, we can monitor various pressure changes to ensure the normal operation of the system and detect problems in time.

Our enterprise may accept consumers order with special requirement for instrument & meter.

Introduction: Ordinary pressure gauges belong to the on-site indicating pressure gauge, which displays the size of the pressure on the spot, without the function of remote transmission display and adjustment.

In the process of industrial process control and technical measurement, because the elastic sensitive elements of general pressure gauges have high mechanical strength, convenient production, simple installation and convenient reading, the general pressure gauges have become more and more widely used.

Purpose: Ordinary pressure gauge is suitable for measuring the pressure and vacuum of liquid, gas or steam without explosion, crystal, solidification, and no corrosive effect on copper and copper alloy.

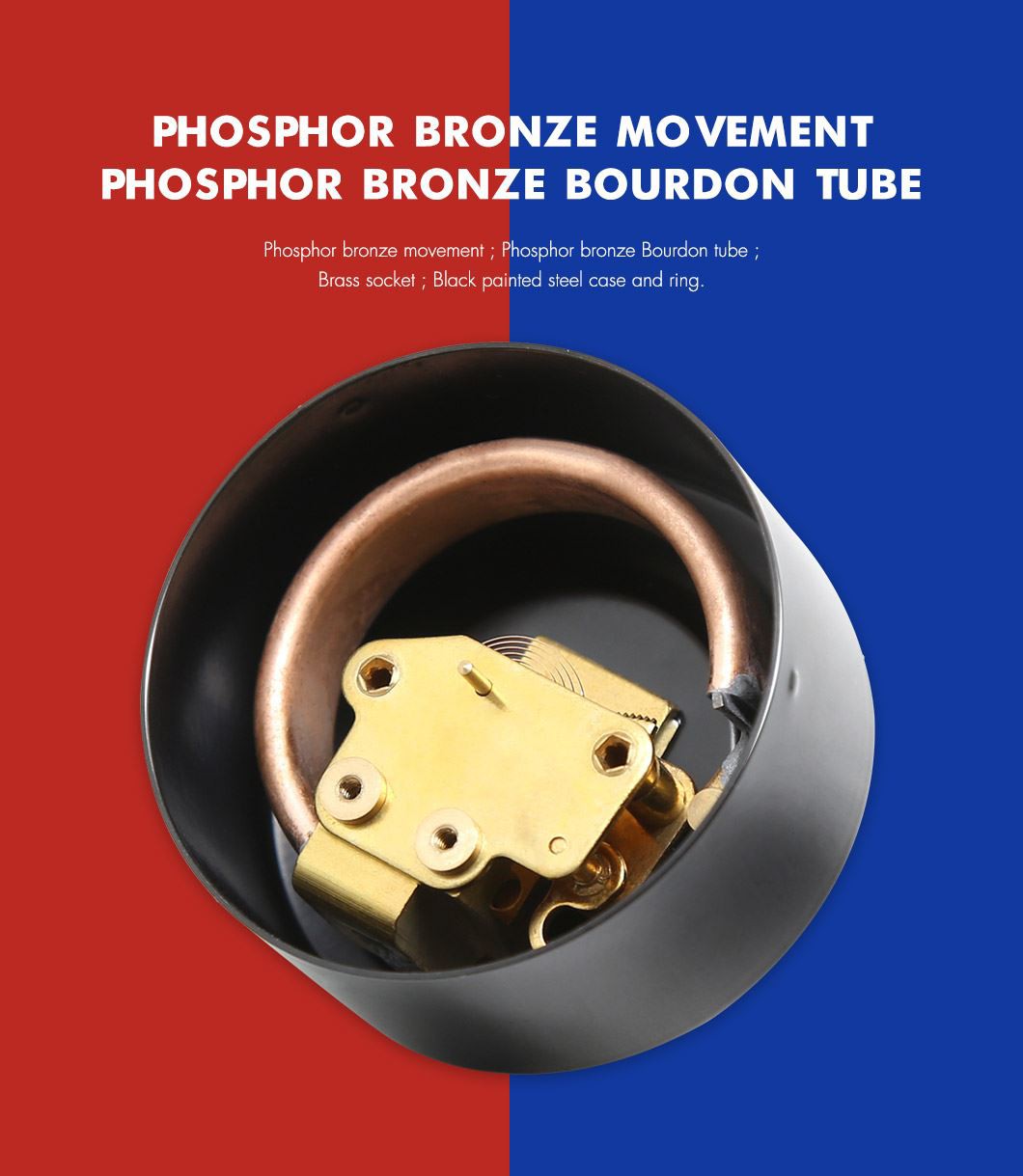

Principle: The ordinary pressure gauge transmits the pressure deformation to the pointer through the elastic deformation of the sensitive element in the watch-the Bourdon tube, and then transmits the pressure deformation to the pointer, causing the pointer to rotate to display the pressure.

Y-Z_01 Y-Z_02 Y-Z_03 Y-Z_04 Y-Z_05 Y-Z_06_01 Y-Z_06_02 Y-Z_07
