Diaphragm Seal Pressure Gauge

A diaphragm seal type pressure gauge is a type of mechanical pressure gauge that incorporates a diaphragm seal to provide a barrier between the process media being measured and the gauge's working mechanism. This protects the mechanical gauge from the corrosive, abrasive, or viscous substances used in many industrial processes while still providing accurate pressure readings.

The diaphragm seal uses a flexible membrane made of materials such as stainless steel or Monel alloy to separate the gauge mechanism from the process media. When the process media applies pressure to the diaphragm, the deflection is transmitted to the gauge mechanism via a hydraulic fluid sealed within the seal assembly. As a result, the gauge reading is a true reflection of the process pressure without the influences of the corrosive or abrasive substances.

Diaphragm seal type pressure gauges are used in a variety of applications, including chemical processing, pharmaceuticals, oil and gas, food and beverage, and water treatment. They are available in various types, including threaded, flanged, and sanitary connections, and can measure pressures from a few millibars to thousands of psi.

Quick Details

Place of Origin: Zhejiang, China (Mainland)
Brand Name: HONGQI
Model Number: YE-60

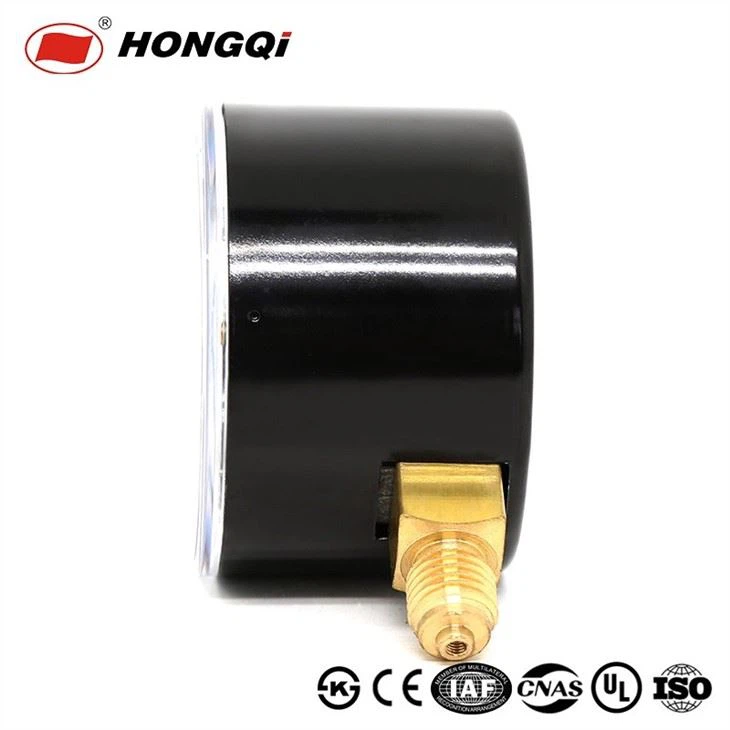

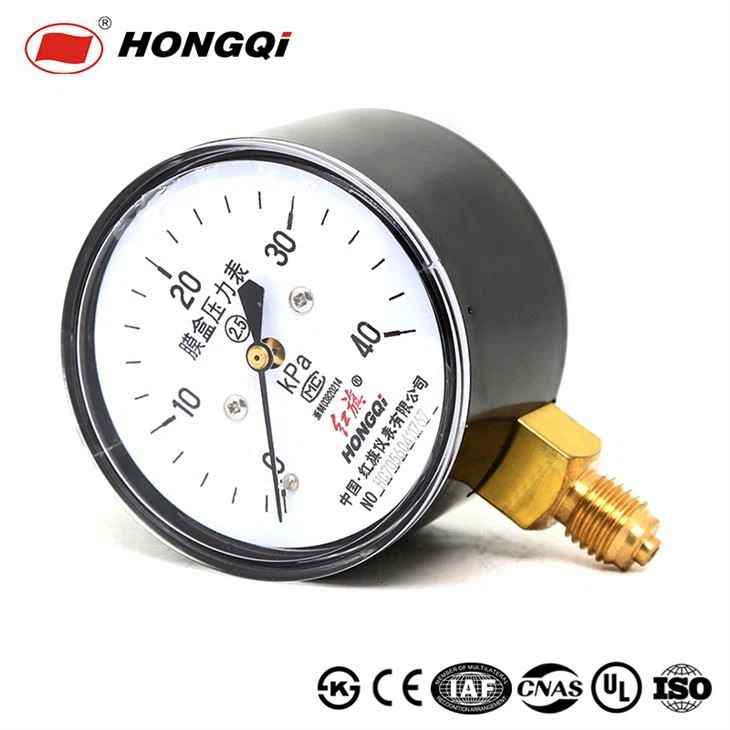

Product Name: theca case pressure gauge
Movement: brass
Connection thread: M20 NPT1/2 * 1.5 G1/2 ZG1/2, and so on
Shell: Aluminum
Accuracy degree: 2.5%
Measuring unit: kpa
Measuring range: 0 ~ 1.6... 60 kpa
Bellows: brass, 316
Joint: HPb59-1
Using the environment temperature:-25℃~55℃

This gauge adopt capsule as the sensitivity part, can measure the micro-pressure or negative pressure of the gases which have no corrosion function to the copper alloys and have no explosion And it is widely used in boiler ventilation, gas tube and fuel setting and so on.
This gauge is made up of the measuring system (invole connector,capsule), gear setting, pointsetting,and outer case.
When the pressure of the medium act on the capsule, and make it moving, with the help of the stick and magnified. the pointor point out on the dial.
Working positon, environment: the gauge should be installed vertically, working temprature is -25℃-55℃, relative humidity is no more than 80%. and corrosive gases mustn't exisin the ambient environment.emperature effect: when environmental temperature deviates from 20 ±5℃.additional error is no more than 0.4%/10℃
