V Shape Thermometer With 0-160º C
to its shape: straight, right-angle (90 degrees) and 135
degrees.
2,The length of the thermometer probe (including the thread):
40mm, 60mm, 80mm, 100mm, 160mm can be customized according
to customer requirements.
3,The thermometer connection thread type is G1/2 by default,
and special threads G3/8, G3/4, M20*1.5, M22*1.5, etc. can
be customized according to customer requirements.dustrial

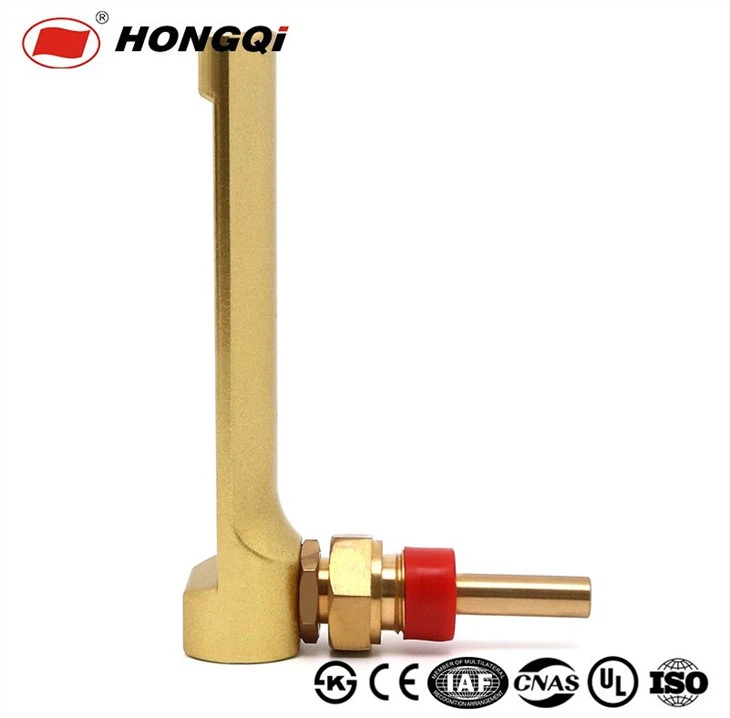

Golden Finish Angle Type Thermometer
Send Inquiry
Chat Now
Product Introduction

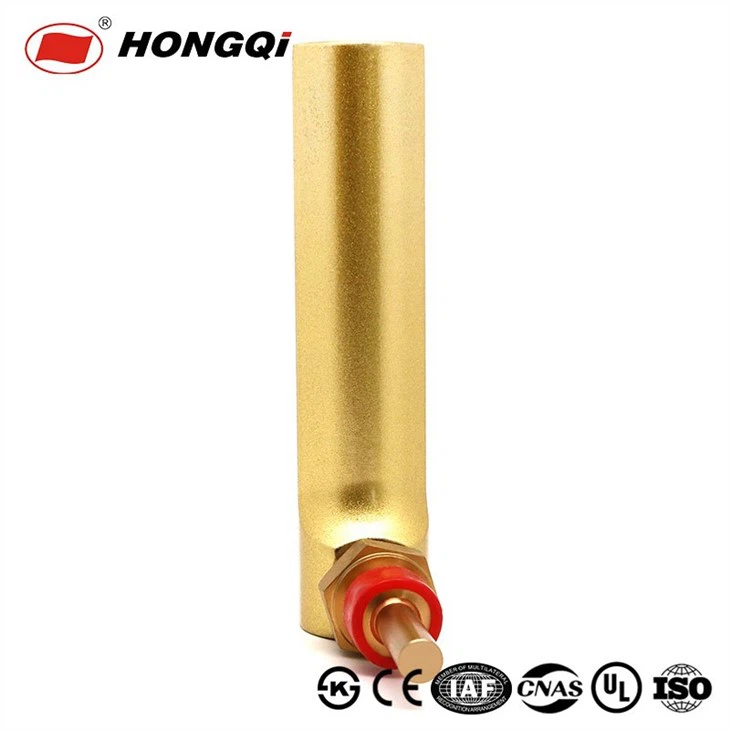

V Shape Thermometer with 0-160º C
The V Shape Thermometer is an innovative and useful tool for measuring temperature accurately and quickly. It has become an essential item in modern households and workplaces, and it is easy to see why.
One of the main advantages of the V Shape Thermometer is its speed. It can provide accurate temperature readings within seconds, making it ideal for busy environments where time is of the essence. It is also very easy to use, with a simple button operation that anyone can master.
The V Shape Thermometer is also very versatile. It can be used to measure the temperature of food, water, and even the human body, making it a great tool for chefs, parents, and medical professionals alike. It is also compact and lightweight, so it can be easily carried around and used on the go.
Another great feature of the V Shape Thermometer is its accuracy. It uses advanced sensing technology to provide precise temperature readings, ensuring that you can trust its measurements every time. This makes it a reliable tool for monitoring temperature in a wide range of settings.
Product Description
| Length | 110mm x 30mm | 150mm x 36mm | 200mm x 36mm |
| Case | Alu-V-form brass-zinc-coated | ||
| Measuring | Brass | ||
| System | -60ºC ~+600ºC | ||
| Measure range | brass G1/4",G1/2" NPT;BSPT…Option:St.st.(ss 316) Thermowells | ||
| Connection thread | Bottom,back,angle90° | ||
| Connection | Glass | ||
| Fluid container | Blue filling,ab 200C quick silver | ||
| FluidStem | 45mm,63mm,…at inpuiry | ||
The thermometer is composed of a glass thermometer and a metal protective sleeve. It is widely used in ship matching, heat exchange equipment, hydraulic equipment and various industrial roads. It has the advantages of long service life, beautiful appearance, and strong shock resistance.
Specifications of marine thermometers
1,The thermometer can be divided into three types according to its shape: straight, right-angle (90 degrees) and 135 degrees.
2,The length of the thermometer probe (including the thread): 40mm, 60mm, 80mm, 100mm, 160mm can be customized according to customer requirements.
3,The thermometer connection thread type is G1/2 by default, and special threads G3/8, G3/4, M20*1.5, M22*1.5, etc. can be customized according to customer requirements.
4,Standard temperature range: -50-50ºC, -30-50ºC, 0-50ºC, 0-100ºC, 0-120ºC, 0-150ºC, 0-200ºC, 0-300ºC, 0-600 ºC, special temperature can be customized according to customer requirements.
Ordering instructions:
When ordering, customers must specify: probe length (including thread), temperature range, connecting thread.
V-type marine thermometers are widely used in ship matching, ventilation equipment, hydraulic equipment and various industrial pipelines.
It has the advantages of long service life, beautiful appearance, and strong shock resistance.
