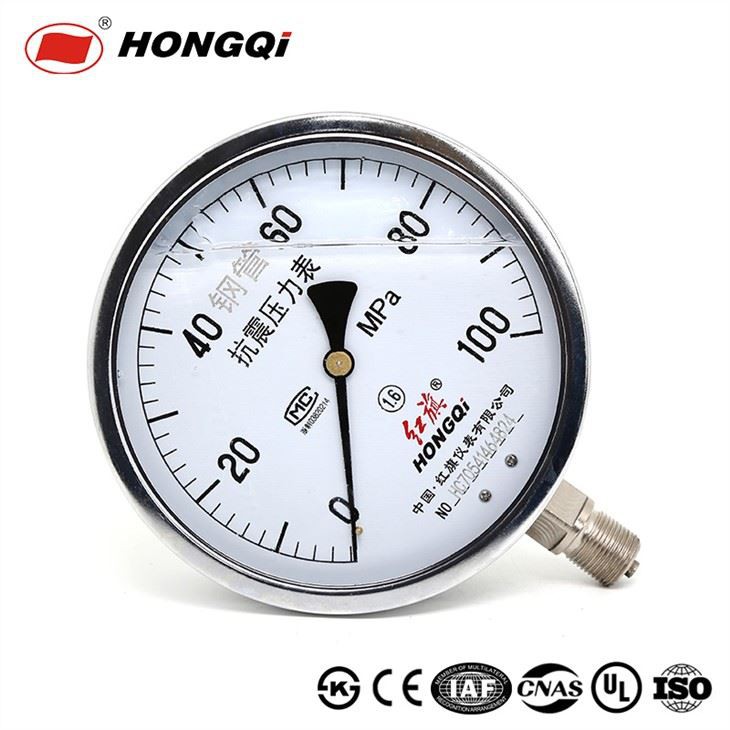

150mm Lower/Back Mount glyecerine oil filled Vibration-resistant Manometer M20*1.5,G1/2'',1/2'' NPT ±1.6% Accuracy

Price:
Minimum Order Quantity:
Production Capacity:
Port: Shanghai/Ningbo
Payment Terms: T/T, L/C, D/P, D/A, O/A

Send Inquiry
Product Details

YTN-150YTN-150ZTYTN-150B


150mm vibration-resistant lower/back mount pressure gauge M20*1.5, G1/2'', 1/2'' NPT ±1.6% Accuracy


Application Description

It is applied for those gaseous, vaporous or liquid media which don’t explode, crystallize and freeze, and corrode copper or copper alloys.


Product Description

Nominal size: 150mm

Accuracy class: ±1.6%

Bourbon tube: C-shaped or helical, phosphor bronze or stainless steel

Installation: Lower mount, back mount, and lower mount with rear flange

Connection: Brass or stainless steel, M20*1.5 or other required threads

Pointer: Black, aluminum

Case: Steel or stainless steel

Movement: Brass or stainless steel

Dial: Aluminum, with stop pin

Scale ranges: 0~100MPa


Working Pressure

Steady pressure:3/4 * full scale range

Fluctuating pressure:2/3 * full scale range


Working Condition

Working temperature:5~55℃for glycerin-filled gauge, -25~55℃ for silicone oil-filled gauge

Permissible humidity:No more than 80% of relative humidity

Hongqi Instrument, established in 1993, is one of the leading manufacturers and suppliers of 150mm lower/back mount vibration-resistant manometer m20*1.5,g1/2'',1/2'' npt ±1.6% accuracy in China. Providing you with low price and good service, we welcome you to wholesale the famous brands' gauge made in China at cheap price from our factory.
