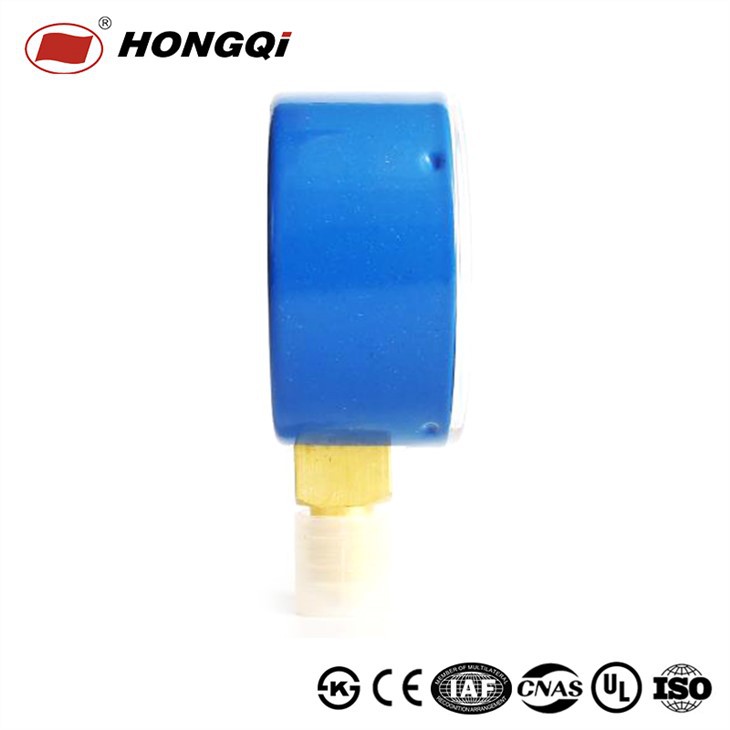

60/100/150mmwith Lower/Back Steel Case Mount Oxygen Pressure Gauge

Price:
Minimum Order Quantity:
Production Capacity:
Port: Shanghai/Ningbo
Payment Terms: T/T, L/C, D/P, D/A, O/A

Send Inquiry
Product Details

Oxygen pressure gauge



60/100/150mm Oxygen Pressure Gauge with Lower/Back Mount ±1.6/2.5% Accuracy



Application Description

It is applied for oxygen only.


Product Description

Nominal size: 60, 100 or 150mm

Accuracy class: ±2.5% for 60mm gauge,±1.6 % for 100 or 150mm gauge

Bourbon tube: C-shaped or helical, phosphor bronze

Installation: Lower mount

Connection: Brass, M10*1, M20*1.5 or other required thread

Pointer: Aluminum, black

Case: Painted steel

Movement: Copper or copper alloy

Dial: Aluminum, black lettering, with stop pin



Scale Ranges

60-mm gauge: 0~40MPa

100 or 150-mm gauge: 0~100MPa


Working Pressure

Steady pressure:3/4 * full scale range

Fluctuating pressure:2/3 * full scale range


Working Condition

Working temperature:-40 to 70℃

Permissible humidity:No more than 80% of relative humidity

Hongqi Instrument, established in 1993, is one of the leading manufacturers and suppliers of 60/100/150mmwith lower/back steel case mount oxygen pressure gauge in China. Providing you with low price and good service, we welcome you to wholesale the famous brands' gauge made in China at cheap price from our factory.
