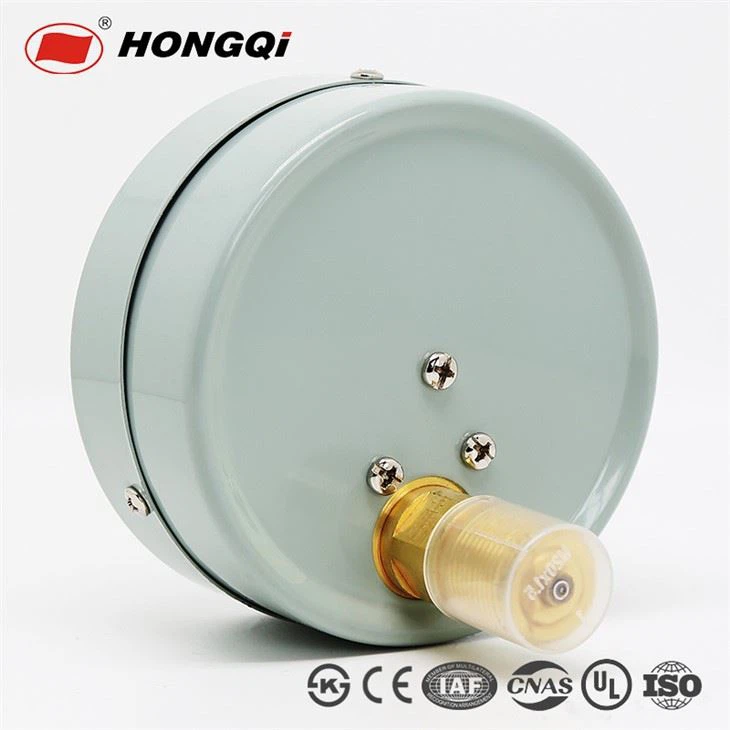

63mm cheap Economical Lower Mount/Back Mount /Flanged Steel Case Pressure Gauge made in China 1/4'' NPT,G1/4'',ZG1/4''

Price:
Minimum Order Quantity:
Production Capacity:
Port: Shanghai/Ningbo
Payment Terms: T/T, L/C, D/P, D/A, O/A

Send Inquiry
Product Details

Y60 Y60Z Y60T Y60ZT


60mm Ecnomical Lower Mount/Back Mount /Flanged Pressure Gauge 1/4'' NPT, G1/4'', ZG1/4'' ±2.5% Accuracy



Application description

It can be applied for those gaseous, vaporous or liquid media which don’t explode, crystallize and freeze, and corrode copper or copper alloys.



Product description

Nominal size: 63mm

Accuracy class: ±2.5%

Bourbon tube: C-shaped or helical, phosphor bronze

Installation: Lower mount, back mount, lower mount with flange, back mount with flange

Connection: Brass, M10*1, M14*1.5 or other required thread

Pointer: Black, aluminum

Case: Painted steel

Movement: Copper or copper alloy

Dial: Aluminum, black lettering, with stop pin

Scale ranges: 0 to 100 MPa for pressure gauge,-0.1 to 0 MPa for vacuum gauge,-0.1 to 2.4 MPa for compound pressure gauge



Working pressure

Steady pressure:3/4 * full scale range

Fluctuating pressure:2/3 * full scale range



Working condition

Working temperature:-40 to 70℃

Permissible humidity:No more than 80% of relative humidity

Hongqi Instrument, established in 1993, is one of the leading manufacturers and suppliers of 60mm economical lower mount/back mount /flanged steel case pressure gauge 1/4'' npt,g1/4'',zg1/4'' ±2.5% accuracy in China. Providing you with low price and good service, we welcome you to wholesale the famous brands' gauge made in China at cheap price from our factory.
